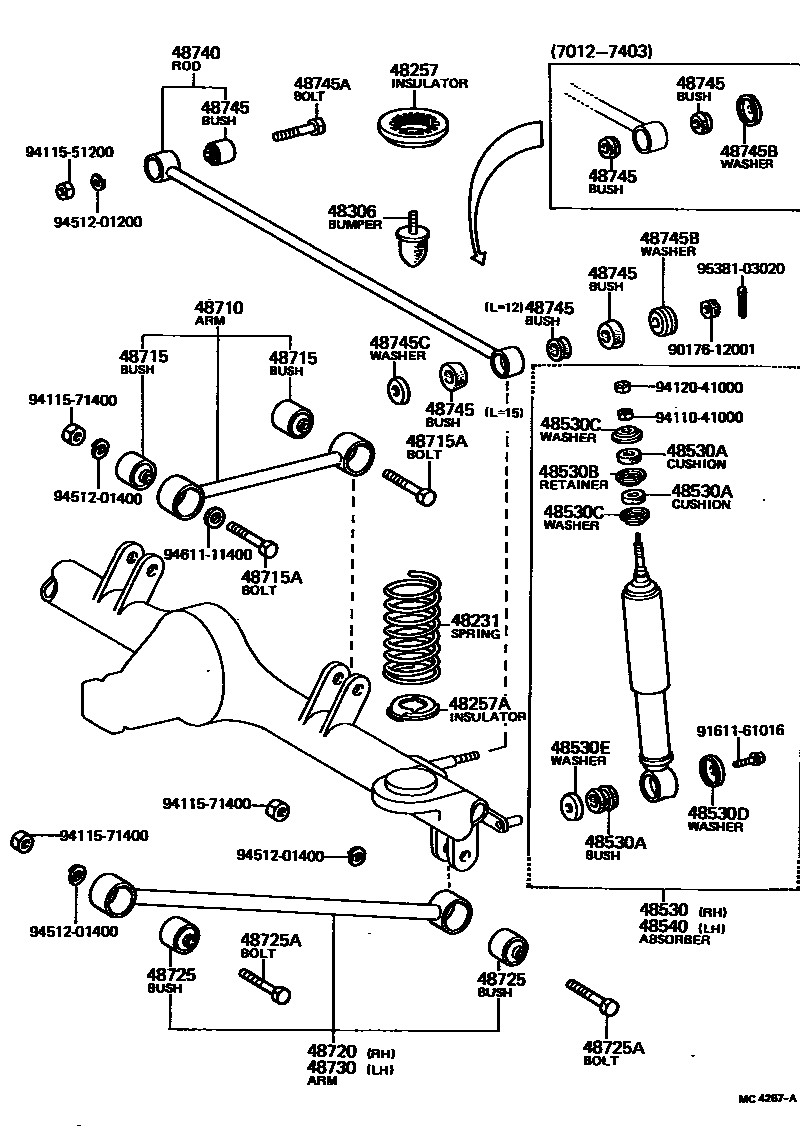

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
RH.
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-14011
48530ABUSH(FOR REAR SHOCK ABSORBER)
LOWER
UPPER
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-14011
48710ARM ASSY, UPPER CONTROL
sub48710-14060
48715BUSH, UPPER CONTROL ARM
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
14-1.5PX130
48725BUSH, LOWER CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
sub90101-14007
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
BODY SIDE
HOUSING SIDE
HOUSING SIDE,L=15
HOUSING SIDE
HOUSING SIDE,L=12
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
9017612001
main90176-12001
9161161016
main91611-61016
9411041000
main94110-41000
9411551200
main94115-51200
9411571400
main94115-71400
9412041000
main94120-41000
9451201200
main94512-01200
9451201400
main94512-01400
9461111400
main94611-11400
9538103020
main95381-03020
33 parts on this diagram · 1 diagram in section
