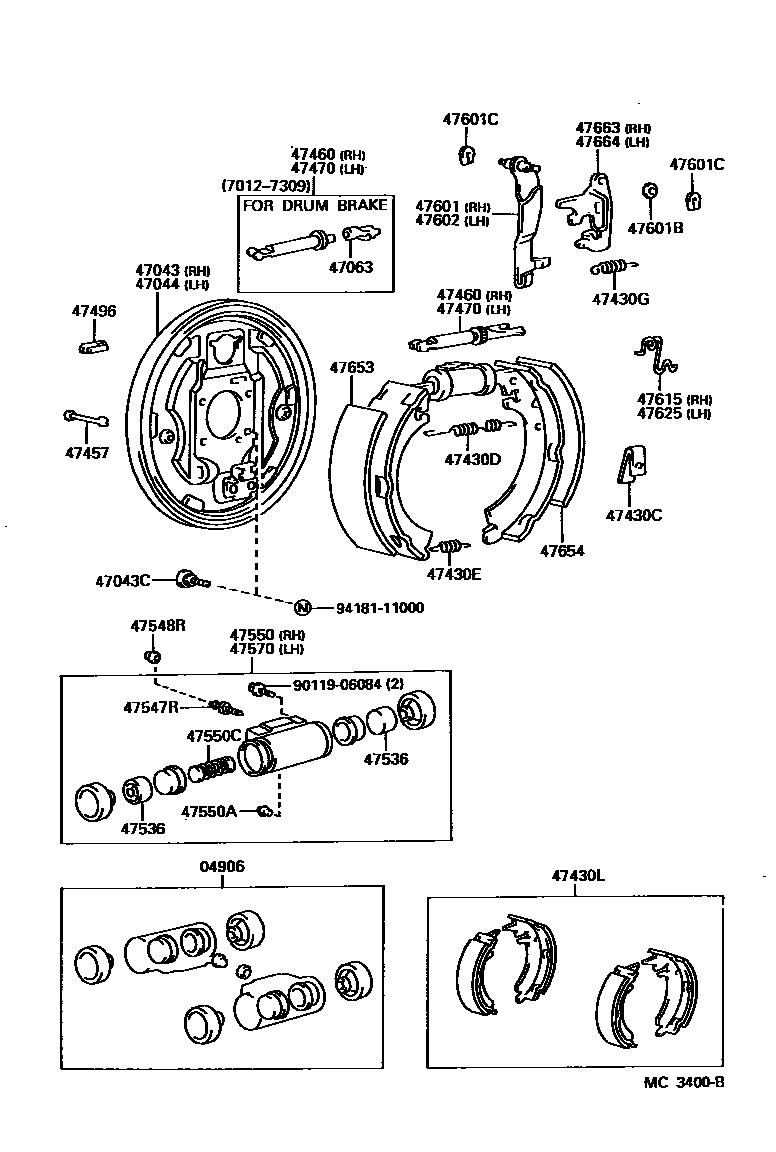

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04906CUP KIT, REAR WHEEL CYLINDER

main04906-12030iTA1#197208-197707

ID=19.05 W/C

main04906-14010iTA1#..DLX,STD197012-197509

ID=17.46 W/C

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-14010iTA1#197012-197307

FOR W/AUTO ADJUSTER

main47043-14011iTA1#197307-197509

FOR W/AUTO ADJUSTER

sub47043-12060

main47043-14020iTA1#..DLX,STD197012-197307

FOR L/AUTO ADJUSTER

sub47043-14010

sub47491-20011

main47043-14021iTA1#..DLX,STD197307-197309

FOR L/AUTO ADJUSTER

sub47043-14011

sub47491-20011

main47043-20050iTA14197510-197707

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-20010iTA1#197012-197302

sub42184-22020

main42184-22011iTA14197510-197707

*10-1.25PX37-15

main42184-22020iTA1#197302-197509

*10-1.25PX26-10

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-14010iTA1#197012-197307

FOR W/AUTO ADJUSTER

main47044-14011iTA1#197307-197509

FOR W/AUTO ADJUSTER

sub47044-12060

main47044-14020iTA1#..DLX,STD197012-197307

FOR L/AUTO ADJUSTER

sub47044-14010

sub47491-20011

main47044-14021iTA1#..DLX,STD197307-197309

FOR L/AUTO ADJUSTER

sub47044-14011

sub47491-20011

main47044-20050iTA14197510-197707

47063PIECE SUB-ASSY, PARKING BRAKE SHOE

main47063-14010iTA1#..DLX,STD197012-197309

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-10010iTA1#197012-197707

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23309iTA1#197012-197107

sub90506-23375

main90506-23375iTA1#197107-197707

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iTA1#197012-197707

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12310iTA1#197012-197707

47430LSHOE KIT, REAR BRAKE

main04495-14010iTA1#197307-197707

FOR DISC BRAKE

sub04495-14011

main04495-14010iTA1#197012-197307

sub04495-14011

main04495-14020iTA1#..DLX,STD197307-197509

FOR DRUM BRAKE

sub04495-14021

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iTA1#197012-197707

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-14010iTA1#197012-197107

FOR L/AUTO ADJUSTER

main47061-14011iTA1#..DLX,STD197107-197309

FOR L/AUTO ADJUSTER

main47061-14020iTA1#197012-197205

AUTO ADJUSTER

main47061-14021iTA1#197205-197707

AUTO ADJUSTER

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-14010iTA1#197012-197107

FOR L/AUTO ADJUSTER

main47062-14011iTA1#..DLX,STD197107-197309

FOR L/AUTO ADJUSTER

main47062-14020iTA1#197012-197205

AUTO ADJUSTER

main47062-14021iTA1#197205-197707

AUTO ADJUSTER

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iTA1#197012-197707

FOR W/AUTO ADJUSTER

main47491-20020iTA1#..DLX,STD197208-197309

FOR L/AUTO ADJUSTER

main47491-30020iTA1#197012-197207

L/AUTO ADJUSTER

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-20040iTA1#197012-197206

FOR FRONT DISC BRAKE

sub47051-22030

main47051-21010iTA1#197012-197206

FOR FRONT DRUM BRAKE

sub47051-21011

main47051-21011iTA1#197206-197207

FOR FRONT DRUM BRAKE

main47051-21011iTA1#..DLX,STD197208-197509

OD=17.46

main47051-22030iTA1#197208-197702

0D=19.05

sub47051-22031

main47051-22031iTA14197702-197707

0D=19.05

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iTA1#197012-197707

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iTA1#197012-197707

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-19055iTA1#197012-197207

FOR FRONT DRUM BRAKE

sub47550-14010

main47550-19055iTA1#..DLX,STD197208-197509

ID=17.46

sub47550-14010

main47550-29105iTA1#197208-197702

ID=19.05

sub47550-29106

main47550-29106iTA14197702-197707

ID=19.05

sub47550-19125

47550ASEAT, UNION(FOR REAR WHEEL BRAKE CYLINDER)

main90410-03015iTA1#197012-197601

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-12010iTA1#197012-197707

ID=19.05 W/C

main47509-14010iTA1#..DLX,STD197208-197509

ID=17.46 W/C

main47509-14010iTA1#197012-197207

FOR FRONT DRUM BRAKE

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-19045iTA1#197012-197201

FOR FRONT DISC BRAKE

sub47550-29105

main47550-19055iTA1#197012-197207

FOR FRONT DRUM BRAKE

sub47550-14010

main47550-19055iTA1#..DLX,STD197208-197509

ID=17.46

sub47550-14010

main47550-29105iTA1#197201-197702

ID=19.05

sub47550-29106

main47550-29106iTA14197702-197707

ID=19.05

sub47550-19125

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-14010iTA1#197012-197707

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iTA1#197012-197707

T=0.3,T=0.285-0.315

main90564-08151iTA1#197012-197707

T=0.6,T=0.570-0.630

main90564-08152iTA1#197012-197707

T=0.9,T=0.855-0.945

main90564-08172iTA1#197208-197707

T=0.2,T=0.19-0.21

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iTA1#197012-197707

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-14010iTA1#197012-197707

47615SPRING, REAR BRAKE STRUT ANTI-RATTLE, RH

main47615-14010iTA1#..DLX,STD197301-197309

47625SPRING, REAR BRAKE STRUT ANTI-RATTLE, LH

main47625-14010iTA1#..DLX,STD197301-197309

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47655-14010iTA1#197012-197307

main47655-14010iTA1#197307-197707

FOR DISC BRAKE

main47655-14020iTA1#..DLX,STD197307-197509

FOR DRUM BRAKE

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47655-14010iTA1#197012-197307

main47655-14010iTA1#197307-197707

FOR DISC BRAKE

main47655-14020iTA1#..DLX,STD197307-197509

FOR DRUM BRAKE

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-14020iTA1#197012-197205

main47643-14021iTA1#197205-197707

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-14020iTA1#197012-197205

main47644-14021iTA1#197205-197707

9011906084

main90119-06084

9418111000

main94181-11000

33 parts on this diagram · 1 diagram in section
