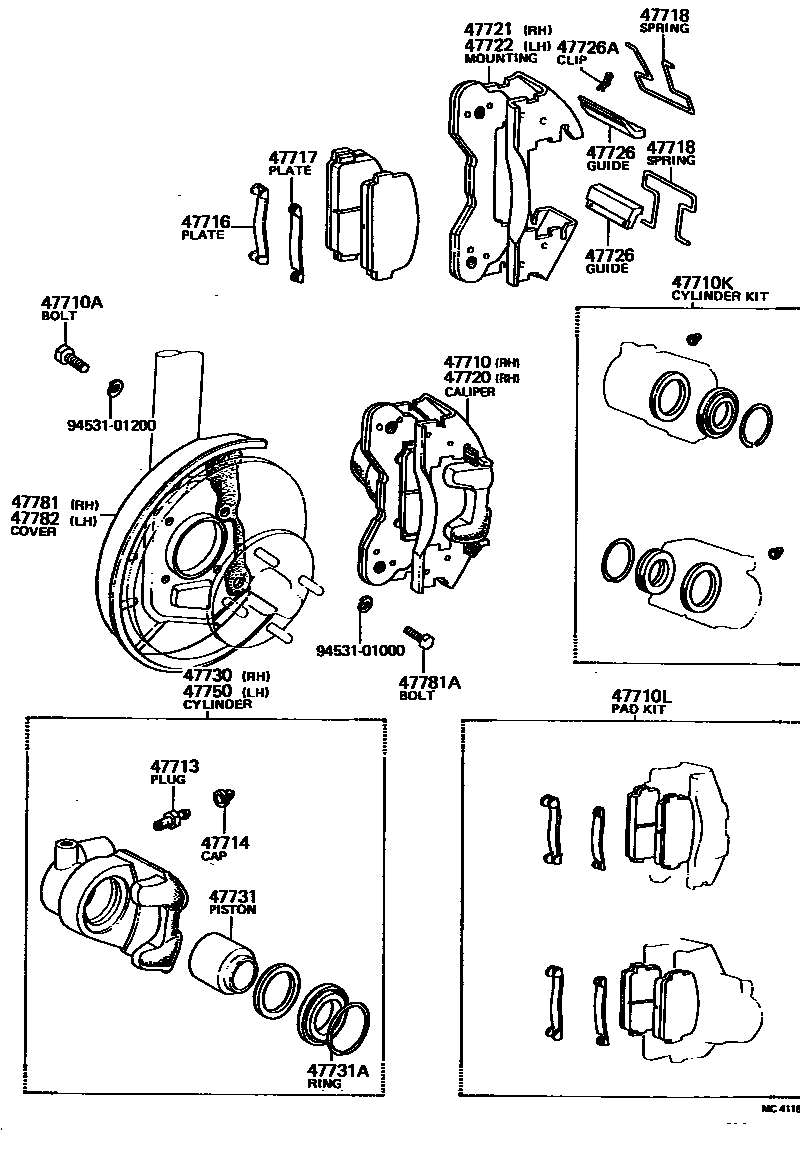

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0004 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-14051iTA1#197401-197509

PAD S21

sub47730-14100

main47710-14071iTA1#..LHD197401-197509

EUROPE SPEC.

main47720-12052iTA1#..LHD197103-197401

EUROPE SPEC.

sub47750-12130

main47720-14011iTA1#197012-197401

PAD S21

sub47750-12130

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12002iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

main90101-12332iTA1#197012-197707

*12-1.25PX15.7-10

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-12030iTA1#197012-197203

sub04479-12031

main04479-12031iTA1#197203-197401

main04479-14010iTA1#197401-197707

main04479-14020iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47710LPAD KIT, DISC BRAKE, FRONT

main04491-12030iTA1#..LHD197103-197112

EUR0PE SPEC.

sub04491-12031

main04491-12031iTA1#..LHD197112-197509

EUR0PE SPEC.

sub04465-12390

main04491-14030iTA14197510-197704

sub04491-14031

main04491-14032iTA14197704-197707

sub04491-14033

main04491-14042iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

sub04465-14290

main04491-20031iTA1#197012-197509

S21

sub04491-20032

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iTA1#197012-197707

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iTA1#197012-197707

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12011iTA1#197012-197401

sub47716-14020

main47716-14020iTA1#197401-197707

main47716-14030iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12011iTA1#197012-197401

sub47717-14020

main47717-14020iTA1#197401-197707

main47717-14030iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14030iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

sub47718-14070

main47718-20010iTA1#197012-197707

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47710-12052iTA1#..LHD197103-197401

EUROPE SPEC.

sub47730-12130

main47710-14011iTA1#197012-197401

PAD S21

sub47730-12130

main47720-14051iTA1#197401-197509

PAD S21

sub47750-14100

main47720-14071iTA1#..LHD197401-197509

EUROPE SPEC.

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-14010iTA1#197012-197401

main47721-14030iTA1#197401-197707

main47721-14050iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-14010iTA1#197012-197401

main47722-14030iTA1#197401-197707

main47722-14050iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14030iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

main47726-20010iTA1#197012-197707

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12017iTA1#197107-197401

sub90468-12134

main90468-12039iTA1#197012-197107

sub90468-12017

main90468-12134iTA1#197401-197707

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-14041iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

main47730-14100iTA14197611-197707

main47750-12030iTA1#197012-197401

sub47750-12130

main47750-12050iTA1#197401-197611

47731PISTON, FRONT DISC BRAKE

main47731-14010iTA1#197012-197401

main47731-14020iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

main47731-20030iTA1#197401-197707

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iTA1#197203-197707

sub90522-58001

main90522-62001iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

47750CYLINDER ASSY, DISC BRAKE, LH

main47730-12030iTA1#197012-197401

sub47730-12130

main47730-12050iTA1#197401-197611

main47750-14041iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

main47750-14100iTA14197611-197707

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14010iTA1#197012-197401

sub47703-14011

main47703-14031iTA1#197401-197707

sub47703-14050

main47703-14040iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

sub47703-14060

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-10020iTA14197607-197707

main90101-10366iTA1#197012-197607

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14010iTA1#197012-197401

sub47704-14011

main47704-14031iTA1#197401-197707

sub47704-14050

main47704-14040iTA14..LHD..3FC197703-197707

AUSTRIA SPEC.

sub47704-14060

9453101000

main94531-01000

9453101200

main94531-01200

23 parts on this diagram · 4 diagrams in section
