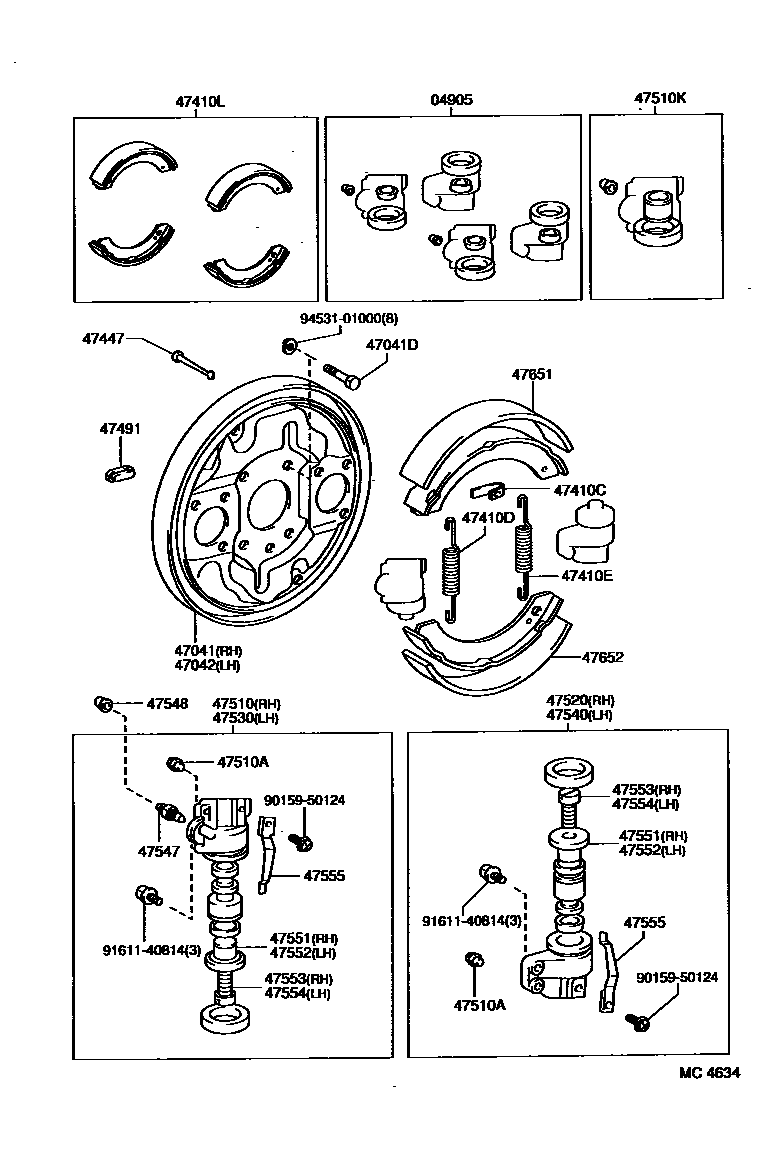

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-14010iTA1#..DLX,STD197012-197509

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-14011iTA1#..DLX,STD197012-197307

main47041-14012iTA1#..DLX,STD197307-197509

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-10366iTA1#..DLX,STD197105-197509

main91111-71014iTA1#197012-197105

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-14011iTA1#..DLX,STD197012-197307

main47042-14012iTA1#..DLX,STD197307-197509

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main47446-10010iTA1#..DLX,STD197012-197509

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-18313iTA1#197012-197509

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-18313iTA1#197012-197509

47410LSHOE KIT, FRONT BRAKE

main04494-14010iTA1#197012-197307

sub04494-14011

main04494-14020iTA1#..DLX,STD197307-197509

sub04494-14011

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-10010iTA1#..DLX,STD197012-197509

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iTA1#197207-197509

main47491-30020iTA1#197012-197207

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-19065iTA1#197012-197205

sub47510-19066

main47510-19066iTA1#..DLX,STD197205-197509

47510ASEAT, UNION(FOR FRONT WHEEL BRAKE CYLINDER)

main90410-03015iTA1#..DLX,STD197012-197509

47510KCYLINDER KIT, FRONT WHEEL

main04473-14011iTA1#197012-197509

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-19055iTA1#197012-197205

sub47520-19056

main47520-19056iTA1#197205-197509

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-19065iTA1#197012-197205

sub47530-19066

main47530-19066iTA1#197205-197509

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-19055iTA1#197012-197205

sub47540-19056

main47540-19056iTA1#197205-197509

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iTA1#..DLX,STD197012-197509

FOR DRUM BRAKE

main47547-12020iTA1#197012-197509

DISC BRAKE

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iTA1#..DLX,STD197012-197509

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-12021iTA1#197012-197205

sub47551-12022

main47551-14010iTA1#197205-197207

sub47551-14011

main47551-14010iTA1#..DLX,STD197208-197509

RH.SCREW

sub47551-14011

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-12021iTA1#197012-197207

sub47552-12022

main47552-14010iTA1#..DLX,STD197208-197509

LH.SCREW

sub47552-14011

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-12011iTA1#197012-197207

main47553-12011iTA1#..DLX,STD197208-197509

RH.SCREW

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-12011iTA1#197012-197207

main47554-12011iTA1#..DLX,STD197208-197509

LH.SCREW

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-14010iTA1#197012-197205

RH.

sub47555-12031

main47555-14011iTA1#..DLX,STD197205-197509

RH.

main47556-14010iTA1#197012-197205

LH.

sub47556-12011

main47556-14011iTA1#197205-197509

LH.

47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)

main47651-14010iTA1#..DLX,STD197012-197307

main47651-14011iTA1#..DLX,STD197307-197509

47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)

main47651-14010iTA1#..DLX,STD197012-197307

main47651-14011iTA1#..DLX,STD197307-197509

9015950124

main90159-50124

9161140814

main91611-40814

9453101000

main94531-01000

28 parts on this diagram · 1 diagram in section
