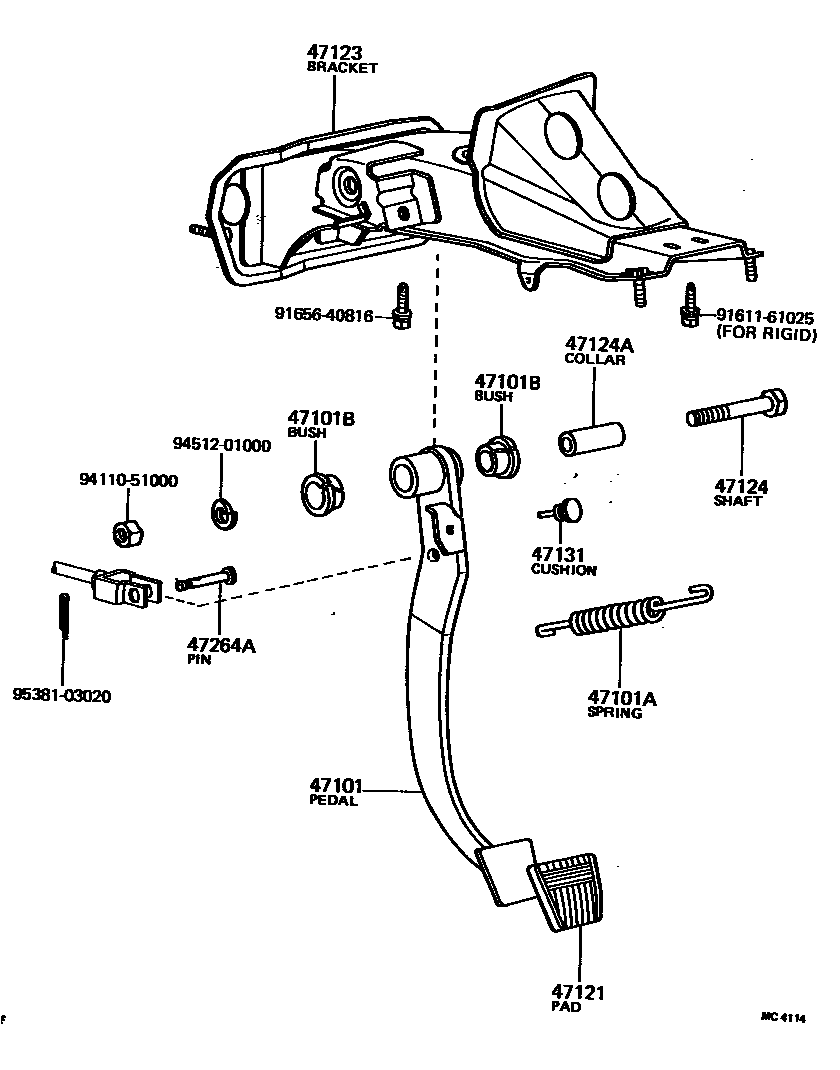

BRAKE PEDAL & BRACKET

0001 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-14010iTA1#..RHD..4F197012-197204

main47101-14011iTA1#..RHD..4F197204-197509

main47101-14012iTA14..RHD..MTM197510-197707

main47101-14020iTA12..RHD..3FC197012-197103

sub47101-14021

main47101-14021iTA12..RHD..3FC197103-197204

main47101-14022iTA12..RHD..3FC197204-197509

main47101-14023iTA14..RHD..3FC197510-197707

main47101-14030iTA1#..LHD..4F197012-197204

main47101-14031iTA1#..LHD..MTM197204-197509

main47101-14032iTA14..LHD..MTM197510-197707

main47101-14041iTA12..LHD..3FC197012-197204

main47101-14042iTA12..LHD..3FC197204-197509

main47101-14043iTA14..LHD..3FC197510-197707

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16148iTA1#197012-197707

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iTA1#197012-197707

47121PAD, BRAKE PEDAL

main31321-14010iTA1#..MTM197012-197707

main47121-30010iTA12..3FC197012-197509

main47121-30050iTA14..3FC197510-197707

47123BRACKET, BRAKE PEDAL

main55106-14010iTA12..RHD..4F197012-197509

main55106-14011iTA14..RHD197510-197707

main55106-14020iTA1#..LHD197012-197207

main55106-14021iTA1#..LHD..MTM197208-197509

main55106-14022iTA14..LHD197510-197707

main55106-14060iTA12..RHD..3FC197208-197509

sub55106-14010

main55106-14061iTA14..RHD..3FC197510-197705

main55106-14070iTA12..LHD..3FC197208-197509

sub55106-14021

47124SHAFT, BRAKE PEDAL

main90101-10039iTA10,12197012-197707

main90101-10043iTA14..LHD197510-197707

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iTA14..LHD197510-197707

main90387-10003iTA10,12197012-197707

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iTA1#197012-197707

47264APIN(FOR PUSH ROD)

main90240-10083iTA1#197012-197204

main90249-10048iTA14197510-197707

main90249-10056iTA1#197204-197509

9161161025

main91611-61025

9165640816

main91656-40816

9411051000

main94110-51000

9451201000

main94512-01000

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
