DISC WHEEL & WHEEL CAP

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050×4iTA14..DLX,STD197510-197707

FOR SEMI-STYLED WHEEL

sub42603-12070

main42603-14010×4iTA14..LHD197510-197707

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-14010×5iTA12;TA10..4D197105-197205

165SR13,RADIAL

sub42605-14012

main42605-14060×4iTA12..STD197401-197402

5.60-13-4,W/TUBE

main42605-14070×4iTA1#..DLX,STD197401-197509

5.60-13-4,W/TUBE,WSW.

main42605-14090×4iTA12..STD197401-197402

6.45S13-4,W/TUBE,BLACK

main42605-14110×4iTA12..4F197405-197509

6.45S13-4,W/TUBE,WSW.

main42605-14130×4iTA12..LHD..MTM197409-197509

165SR13,Y-417C,W/TUBE

main42605-14140×4iTA12..4F197405-197509

6.45S13-4,W/TUBE,BLACK

main42605-14150×4iTA12..RHD..4F..DLX197410-197509

165SR13,W/TUBE,ENGLAND SPEC.

main42605-22010×5iTA1#197012-197207

6.45S13-4,WSW.

main42605-22020×5iTA1#197012-197207

6.45S13-4

main42605-22040×5iTA12..RHD..DLX197110-197207

6.45S13-4,W/TUBE,WSW.

main42605-22041×4iTA1#197401-197509

6.45S13-4,W/TUBE,WSW.

main42605-22060×4iTA1#197204-197401

165SR13,W/TUBE

main42605-22100×4iTA1#197205-197509

165SR13,W/TUBE

main42652-14040×4iTA12..STD197401-197402

5.60-13-4,TUBELESS,BLACK

sub42652-14150

main42652-14050×4iTA1#..DLX,STD197401-197509

5.60-13-4,TUBELESS,WSW.

main42652-14060×4iTA12..STD197401-197402

6.45S13-4,TUBELESS,BLACK

main42652-14140×4iTA14197607-197707

165SR13,T/L. STEEL RADIAL

main42652-22010×5iTA12;TA10..4D197012-197207

165S13-4,TUBELESS,WSW.

main42652-22020×5iTA12;TA10..4D197012-197207

165S13-4,TUBELESS,C-41

main42652-22030×5iTA1#197012-197207

6.45S13-4,WSW.

main42652-22040×5iTA12;TA10..4D197012-197207

165S13-48TUBELESS,G-8

main42652-22080×4iTA14..4F197510-197707

6.45-13-4,TUBELESS,WSW.

main42652-22090×4iTA14..4F197510-197707

6.45-13-4,TUBELESS,BLACK

main42652-22120×4iTA1#..DLX,STD197401-197509

6.45S13-4,TUBELESS,WSW.

main42652-22240×4iTA14..LHD..3FC197703-197707

175SR14,T/L AUSTRIA SPEC.

main98011-56132×4iTA12..STD197208-197401

5.60-13-4,W/TUBE

main98011-56133×4iTA12..4F197405-197509

5.60-13-6,W/TUBE,BLACK

main98013-56132×4iTA1#..DLX,STD197012-197401

5.60-13-4,W/TUBE,WSW.

main98013-56133×4iTA12..4F197405-197509

6.00-13-6,W/TUBE,WSW.

main98014-56133×4iTA1#197012-197207

5.60-13-6

main98021-64133×4iTA14..RHD..4F197510-197707

6.45-13-6,W/T.BLACK,THAILAND

main98023-64133×4iTA14..RHD..4F197510-197707

6.45-13-6,W/TUBE,WSW,THAILAND

main98031-64132×4iTA12..STD197208-197401

6.45S13-4,W/TUBE

main98038-65130×4iTA1#..LHD197208-197401

165SR13,W/TUBE

main98511-56132×4iTA12..STD197208-197401

5.60-13-4,TUBELESS

main98513-56132×4iTA1#..DLX,STD197208-197401

5.60-13-4,TUBELESS

main98513-64132×4iTA12..RHD..DLX197110-197207

6.45-13-4,TUBELESS

main98531-64132×4iTA12..STD197208-197401

6.45S13-4,TUBELESS

main98533-64132×4iTA1#..DLX,STD197208-197401

6.45S13-4,TUBELESS

main98921-64132×4iTA14..4F197510-197707

6.45-13-4,W/TUBE,BLACK

main98923-64132×4iTA14..4F197510-197707

6.45-13-4,W/TUBE,WSW.

main98938-65130×4iTA1#197205-197707

165SR13,W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iTA1#..DLX,STD197012-197509

42621CAP, WHEEL

main42621-14010×4iTA12..DLX;TA12..LHD..4F..STD..2D197208-197308

main42621-14011×4iTA12..DLX;TA12..LHD..4F..STD..2D197308-197509

main42621-14020×4iTA12..ST197208-197509

sub42621-14021

main42621-20070×4iTA1#..STD197012-197401

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14021iTA14..LHD197510-197707

4260312050ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12050

4260314010ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14010

4262114010CAP, WHEEL

main42621-14010

4262114011CAP, WHEEL

main42621-14011

4262114020CAP, WHEEL

main42621-14020

4262120070CAP, WHEEL

main42621-20070

9016440052

main90164-40052

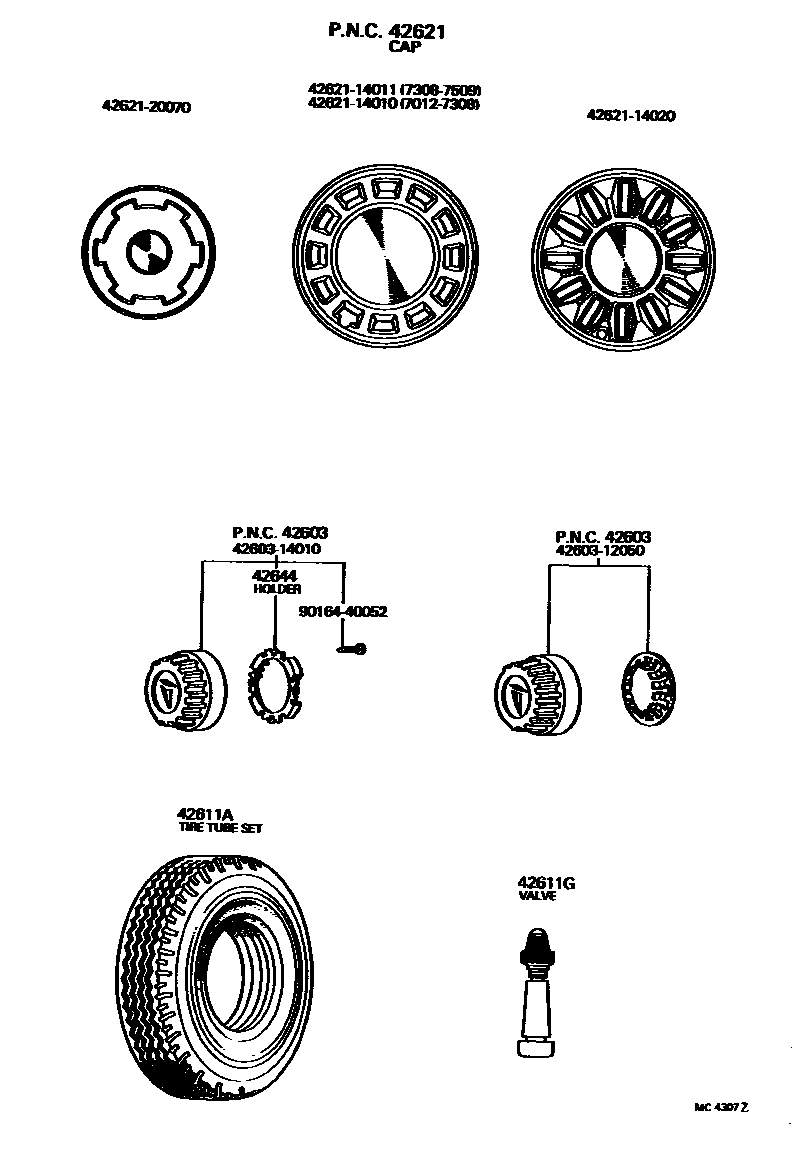

12 parts on this diagram · 1 diagram in section
