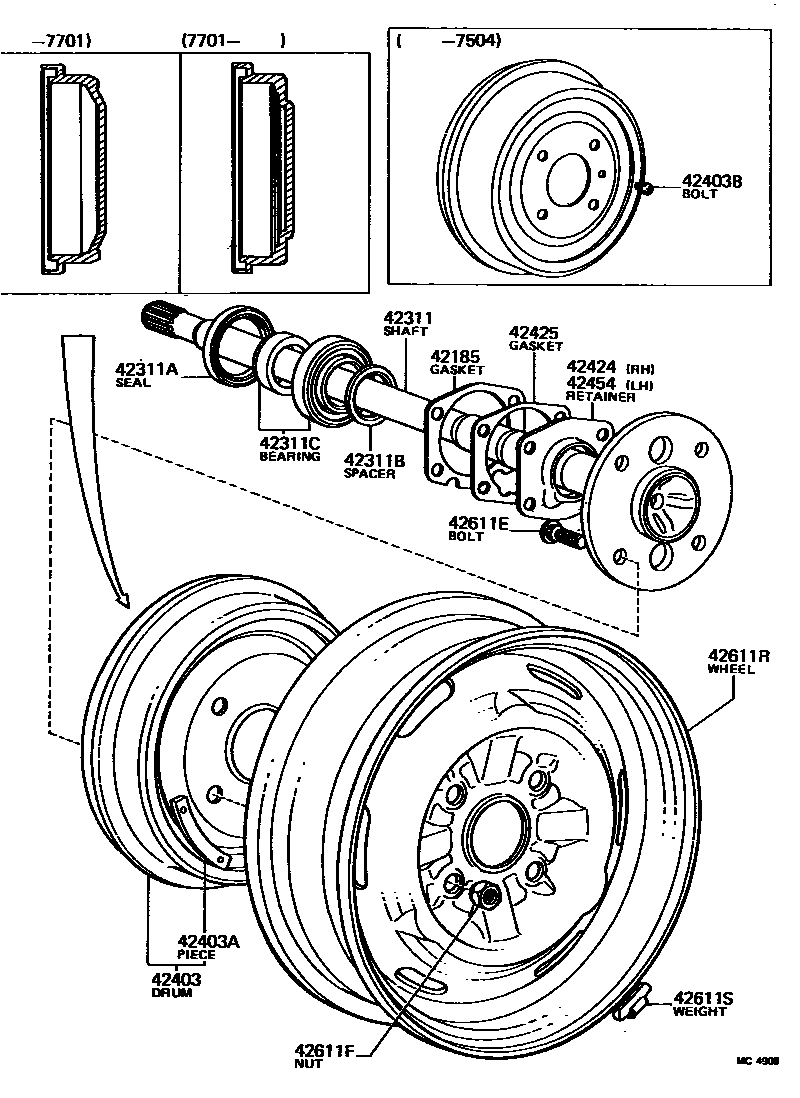

REAR AXLE SHAFT & HUB

42185GASKET, REAR AXLE HOUSING END

main42185-12010×2i197302-197509

T=0.3

sub42185-52030

main42185-20010×2i197012-197302

T=0.3

main42185-22010×2i197302-197509

T=0.6

main42185-22020×2i197510-197707

main42186-20010×2i197012-197302

T=0.5

main42187-20010×2i197012-197302

T=0.6

42311SHAFT, REAR AXLE

main42311-14010×2i197202-197207

main42311-14050×2i197510-197707

main42311-20041×2i197012-197202

main42311-20042×2i197208-197509

sub42311-12120

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42055×2i197012-197509

TB 42 55 7X3

main90311-52059×2i197510-197707

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-30152×2i197012-197509

main90560-35153×2i197510-197707

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-12010×2i197208-197509

KOYO

sub04421-12011

main04421-20010×2i197012-197509

NSK

main04421-30010×2i197510-197611

main04421-30011×2i197611-197707

sub04421-30012

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14010×2i197012-197304

main42431-14030×2i197304-197308

main42431-20040×2i197308-197701

main42431-22050×2i197701-197707

sub42431-12060

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2i197012-197707

10G,10G.

main90937-01118×2i197701-197707

20G,20G.

main90937-01119×2i197701-197707

30G,30G.

main90937-01120×2i197701-197707

40G,40G.

main90937-01121×2i197701-197707

50G,50G.

main90937-01122×2i197701-197707

60G,60G.

main90937-01141×2i197012-197701

20G.

main90937-01142×2i197012-197701

30G.

main90937-01143×2i197012-197701

40G.

main90937-01144×2i197012-197701

50G.

main90937-01145×2i197012-197701

10G,60G.

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007×2i197012-197504

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-20010i197012-197509

main42424-21010i197510-197707

42425GASKET, REAR AXLE BEARING RETAINER

main42425-20010×2i197012-197509

sub42425-52030

main42425-22020×2i197510-197707

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-20010i197012-197509

main42454-21010i197510-197707

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021×8i197012-197404

main90942-02032×8i197404-197703

12-1.5PX38-25.5

main90942-02035×8i197703-197707

12-1.5PX36-23.5

sub90942-02047

42611FNUT, HUB (FOR REAR AXLE)

main90942-01007×8i197012-197707

main90942-01020×8i197510-197704

CAP NUT,H=34.5

main90942-01021×8i197704-197707

CAP NUT,H=29.5

42611RWHEEL, DISC(FOR REAR)

main42611-12260×2i197510-197707

4.5J-13,T/L,SEMI-STYLED,SILVER

main42611-12270×2i197510-197610

4.5J-13,W/T,SEMI-STYLED,SILVER

main42611-12401×2i197610-197707

4.5J-13

main42611-13040×2i197610-197707

4.5J-13,FOR TUBELESS

sub42611-22121

main42611-14060×2i197202-197401

4.5J-13,FOR TUBELESS

main42611-14100×2i197510-197610

4.5J-13,FOR SILVER METALLIC

sub42611-12400

main42611-14120×2i197401-197509

4.5J-13,FOR TUBELESS

main42611-14130×2i197401-197509

4.5J-13,FOR W/TUBE

main42611-14210×2i197510-197605

4.5J-13,W/TUBE,THAILAND SPEC.

main42611-14240×2i197510-197707

5J-13,W/TUBE,SWITZRLAND SPEC.

main42611-14241×2i197607-197701

5J-13,FOR STEEL RADIAL

main42611-14242×2i197701-197707

5J-13

main42611-14270×2i197703-197707

5.5J-14,AUSTRIA SPEC.

main42611-20040×2i197012-197207

4J-13

main42611-20050×2i197405-197509

4J-13

main42611-20060×2i197208-197401

4J-13

main42611-20160×2i197409-197509

5J-13,SWITZERLAND SPEC.

main42611-22010×2i197012-197110

main42611-22030×2i197110-197401

4.5J-13,FOR W/TUBE

main42611-22080×2i197402-197707

4.5J-13,FOR TUBELESS

main42611-22090×2i197205-197707

4.5J-13,FOR W/TUBE

42611SWEIGHT, BALANCE(FOR REAR DISC WHEEL)

main90942-03017i197012-197707

20G.

main90942-03020i197012-197707

30G.

main90942-03022i197012-197707

40G.

main90942-03025i197012-197707

50G.

main90942-03027i197012-197707

60G.

main90942-03029i197012-197707

70G.

main90942-03031i197012-197707

80G.

main90942-03041i197012-197707

10G.

15 parts on this diagram · 1 diagram in section
