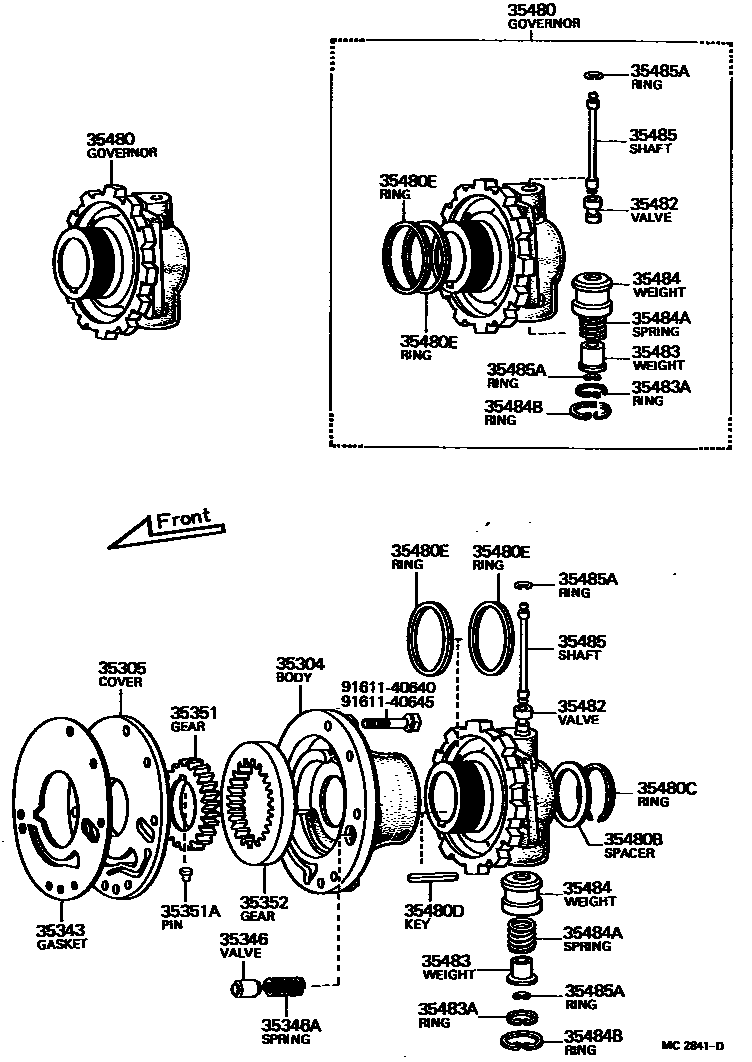

REAR OIL PUMP & GOVERNOR (ATM)
35305COVER SUB-ASSY, REAR OIL PUMP
35343GASKET, REAR OIL PUMP COVER
35346ASPRING, COMPRESSION(FOR PRIMING VALVE)
35351GEAR, REAR OIL PUMP DRIVE
N=23
35351APIN, STRAIGHT (FOR REAR OIL PUMP DRIVE GEAR)
35352GEAR, REAR OIL PUMP DRIVEN
N=28
35480BSPACER (FOR GOVERNOR BODY SPACER OR PARKING LOCK GEAR)
T=1.2
35480CRING, SHAFT SNAP (FOR OUTPUT)
35480DKEY, SLIDING (FOR GOVERNOR BODY SUPPORT)
35480ERING (FOR REAR OIL PUMP GOVERNOR)
35483WEIGHT, GOVERNOR, INNER
35483ARING, HOLE SNAP (FOR GOVERNOR INNER WEIGHT)
35484WEIGHT, GOVERNOR, OUTER
35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
WD=1.2,CW=8
35484BRING, HOLE SNAP (FOR GOVERNOR OUTER WEIGHT)
35485SHAFT, GOVERNOR VALVE
35485ARING, E (FOR GOVERNOR VALVE SHAFT)
T=1.0
T=1.0
9161140640
main91611-40640
9161140645
main91611-40645
23 parts on this diagram · 2 diagrams in section
