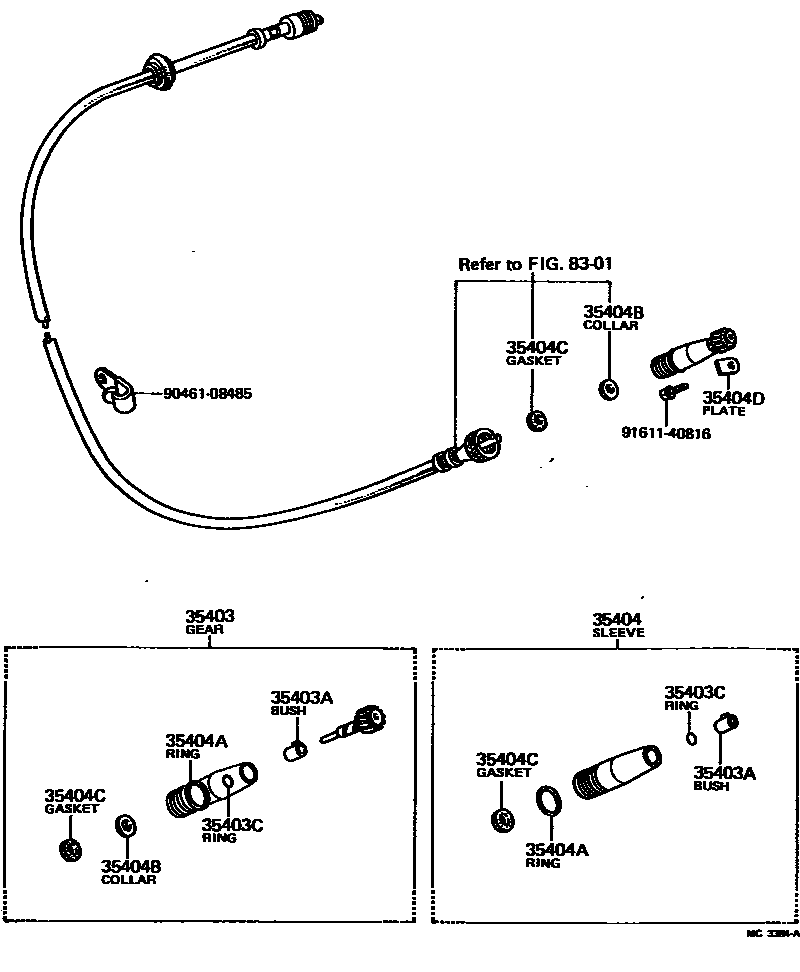

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1 0002 1

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29016iTA12..3FC197012-197207

N=19

main33403-39016iTA12,14..3FC197208-197707

N=18

main33403-39036iTA12,14..3FC197012-197707

N=17

35403ABUSH (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90386-09078iTA12,14..3FC197012-197707

35403CRING, O (FOR AUTOMATIC TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iTA12,14..3FC197012-197707

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-39016iTA12,14..3FC197012-197707

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iTA12,14..3FC197012-197707

35404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (ATM)

main90201-07069iTA12,14..3FC197012-197707

35404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (ATM)

main90303-06017iTA12,14..3FC197012-197707

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30010iTA12,14..3FC197012-197707

8301

9046108485

main90461-08485

9161140816

main91611-40816

11 parts on this diagram · 2 diagrams in section
