TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

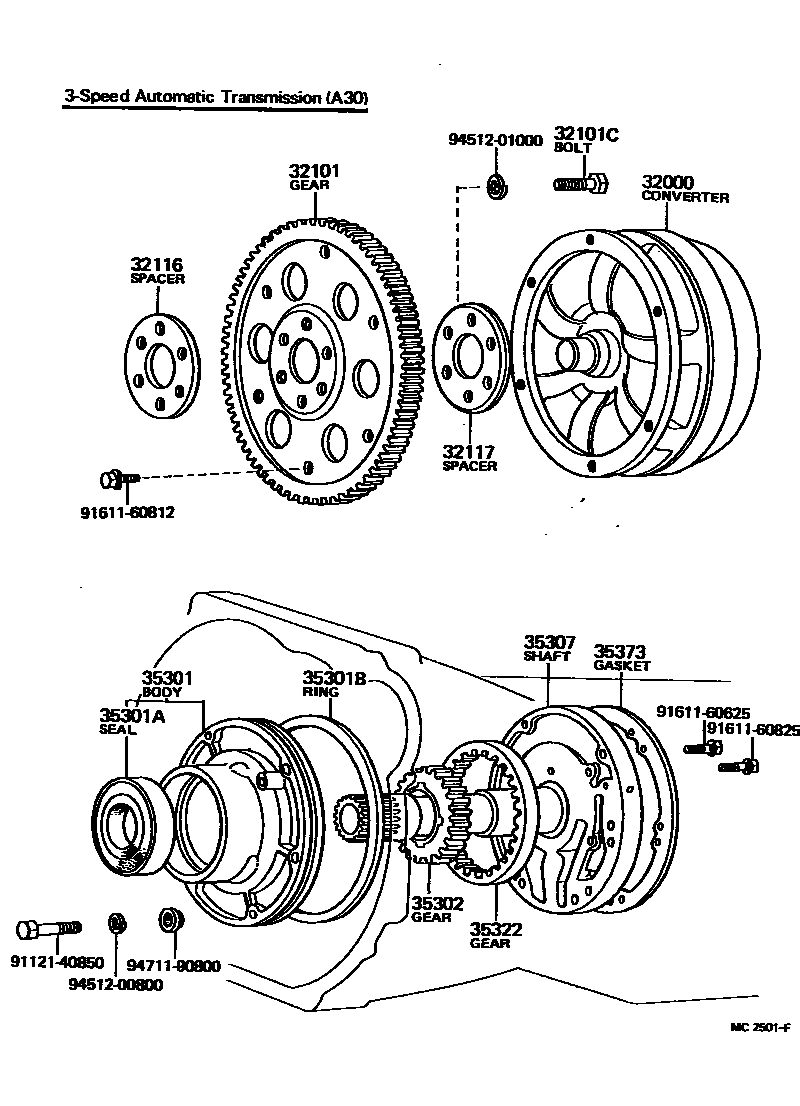

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-12020i197308-197310
sub32000-12021
main32000-12021i197310-197707
sub32000-12030
main32000-14010i197012-197301
sub32000-14030
sub32101-14901
sub32116-14010
sub90101-10435
sub94512-01000
main32000-14030i197301-197308
sub32000-14031
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-14010i197012-197301
main32101-14030i197301-197707
sub32101-22030
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90101-10035i197702-197707
sub90105-10006
main90101-10435i197301-197702
main90119-10074i197101-197301
sub90119-10353
main91611-61022i197012-197101
sub91612-61022
32116SPACER, DRIVE PLATE, FRONT
main32116-14010i197301-197707
sub32116-14011
32117SPACER, DRIVE PLATE, REAR
main32117-14010i197301-197707
sub32117-14011
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-22011i197308-197707
sub35301-30030
sub90101-06002
sub90101-08046
sub90301-99010
main35301-30012i197012-197308
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-38129i197308-197707
sub90311-38020
main90311-45084i197012-197308
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35147-22010i197308-197707
main90301-99108i197012-197308
35302GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
main35302-30011i197012-197308
N=25
main35321-22010i197308-197707
sub35321-22090
35307SHAFT SUB-ASSY, STATOR
main35307-22011i197308-197707
sub35370-22010
main35307-30012i197012-197308
sub35307-35010
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-22010i197308-197707
T=15.286-15.235,N=24
sub35322-22090
main35322-30010i197012-197308
N=31
35373GASKET, STATOR SHAFT
main35373-30010i197012-197308
9112140850
main91121-40850
9161160625
main91611-60625
9161160812
main91611-60812
9161160825
main91611-60825
9451200800
main94512-00800
9451201000
main94512-01000
9471190800
main94711-90800

19 parts on this diagram · 2 diagrams in section
