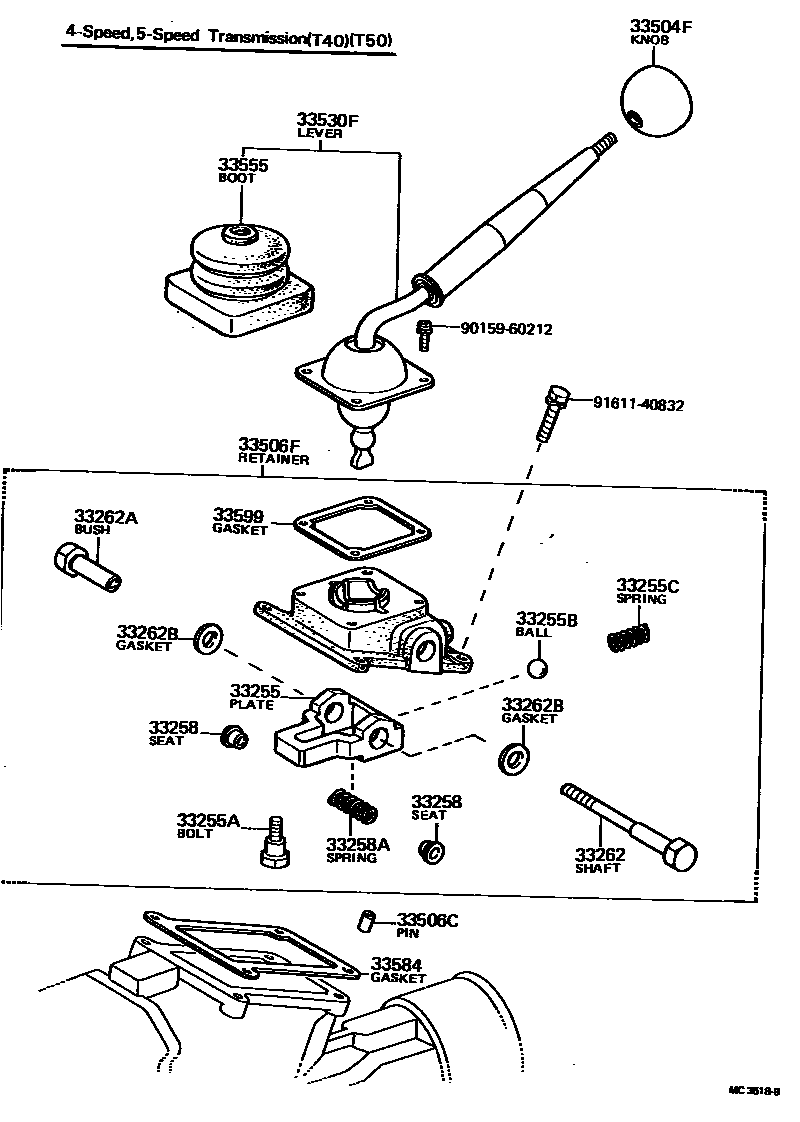

SHIFT LEVER & RETAINER
33255PLATE, SELECT RETURN
33255ABOLT, SELECT RETURN PLATE SET
33255BBALL, SELECT RETURN PLATE
33255CSPRING, SELECT RETURN PLATE BALL
33258SEAT, SELECT RETURN SPRING
33258ASPRING, SELECT RETURN
33262SHAFT, SELECT RETURN
33262ABUSH, SELECT RETURN
33262BGASKET (FOR SELECT RETURN SHAFT)
33506CPIN, SHIFT LEVER RETAINER RING
L=11,OD=11
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33555BOOT, SHIFT LEVER
33584GASKET, CONTROL SHIFT LEVER RETAINER (FOR COLUMN SHIFT)
33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
9015960212
main90159-60212
9161140832
main91611-40832
18 parts on this diagram · 5 diagrams in section
