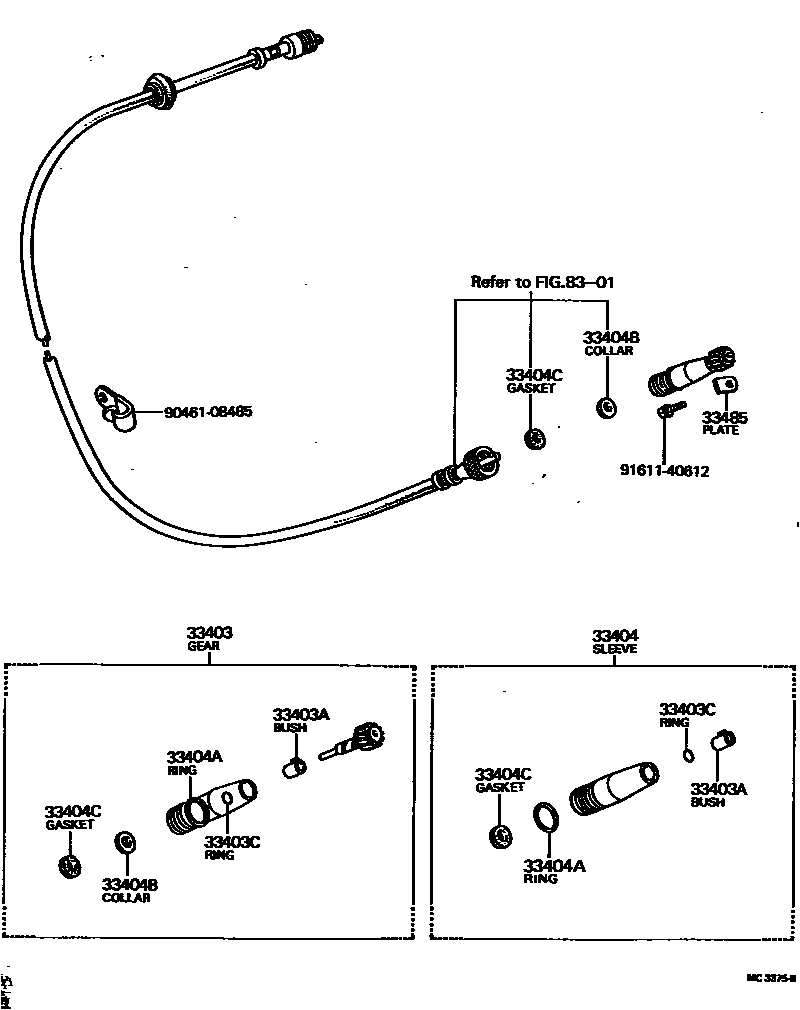

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19075iTA1#..MTM197012-197707

N=21

main33403-19085iTA10197012-197509

N=22

main33403-19095iTA12..RHD..4F197012-197707

N=20

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09055iTA1#..MTM197012-197707

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iTA14..MTM197012-197707

sub90301-09017

main90301-09017iTA1#197208-197509

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-19015iTA1#..MTM197012-197707

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-17011iTA1#..4F197012-197103

main96710-02018iTA1#..MTM197103-197707

sub96711-19018

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iTA1#..MTM197012-197707

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iTA1#..MTM197012-197707

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-10010iTA1#..MTM197012-197707

8301

9046108485

main90461-08485

9161140612

main91611-40612

11 parts on this diagram · 2 diagrams in section
