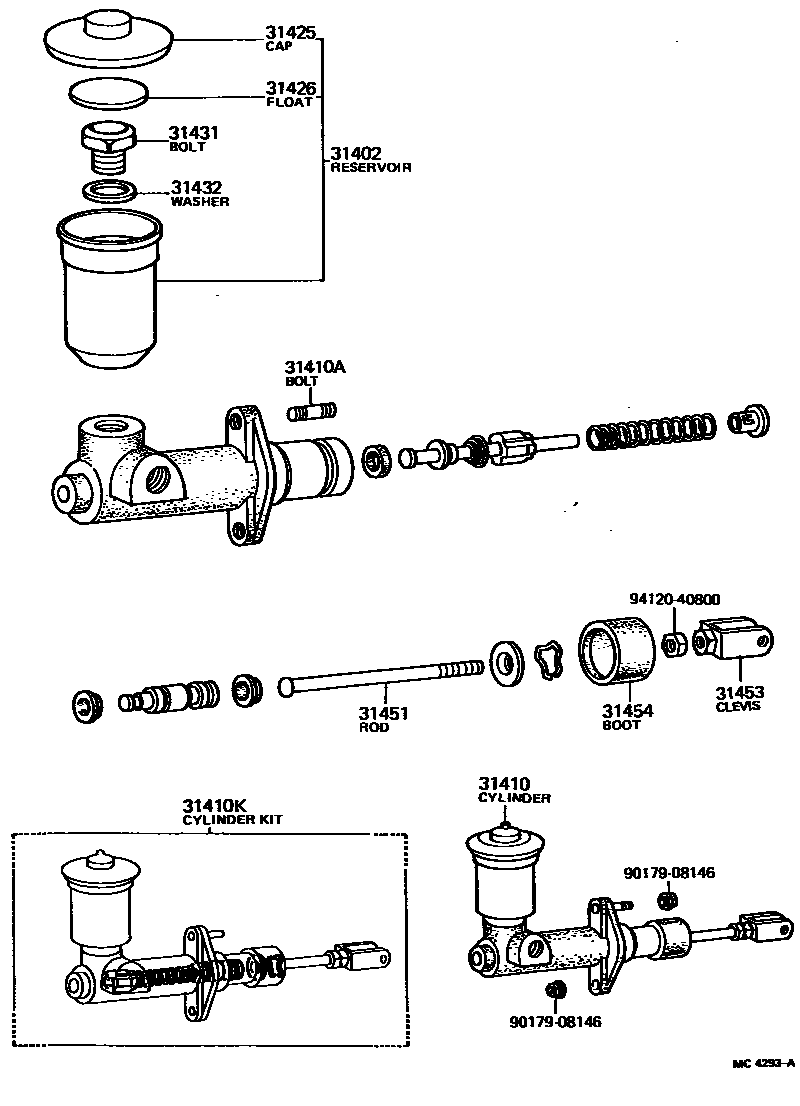

CLUTCH MASTER CYLINDER

0001 1 0003 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main47202-12010iTA1#..4F197012-197101

sub47202-12050

main47202-12050iTA1#..MTM197101-197707

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14010iTA1#..MTM197012-197707

sub31410-14260

main31410-20111iTA14..LHD..MTM197510-197706

sub31410-20370

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08097iTA1#..MTM197012-197707

main90116-08302iTA14..LHD..MTM197511-197706

31410KCYLINDER KIT, CLUTCH MASTER

main04311-12011iTA1#..4F197012-197206

sub04311-14010

main04311-14010iTA1#..MTM197206-197707

sub04311-14011

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12011iTA1#..4F197012-197101

sub31440-35010

main47230-12030iTA1#..MTM197101-197707

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iTA1#..MTM197012-197707

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iTA1#..MTM197304-197707

main47231-35010iTA1#..MTM197012-197304

sub47231-30010

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iTA1#..MTM197304-197707

main47232-35010iTA1#..MTM197012-197304

sub47232-30010

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iTA1#..MTM197012-197707

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main47264-10011iTA1#..MTM197012-197707

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iTA1#..MTM197012-197707

9017908146

main90179-08146

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
