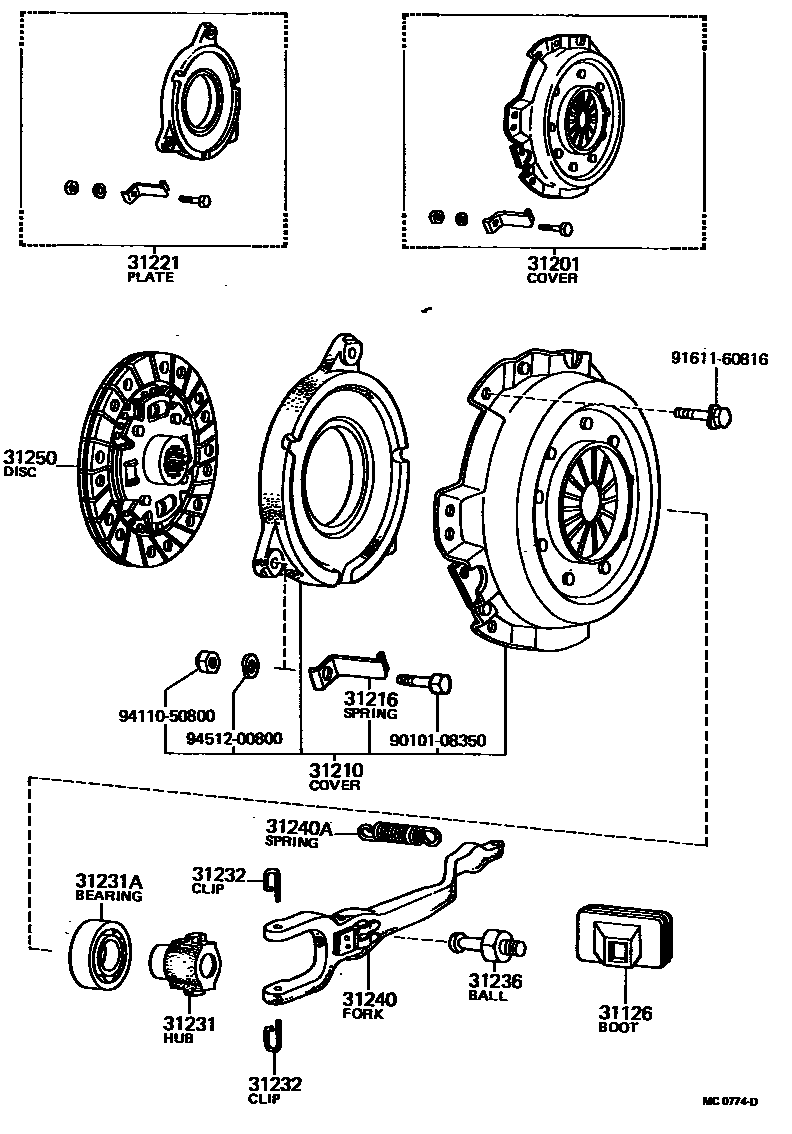

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20040iTA1#..MTM197408-197707

main31126-22020iTA1#..MTM197012-197408

sub31126-20040

31201COVER SUB-ASSY, CLUTCH

main31201-19015iTA1#..MTM197012-197308

sub31201-19016

main31201-29055iTA1#..MTM197308-197409

sub31201-29056

main31201-29056iTA1#..MTM197409-197707

sub31201-29057

31210COVER ASSY, CLUTCH

main31210-14010iTA1#..MTM197012-197307

sub31210-14011

main31210-14011iTA1#..MTM197307-197409

sub31210-14080

main31210-14080iTA1#..MTM197409-197707

sub31210-14012

31216SPRING, CLUTCH RETRACTING

main31216-20020iTA1#..MTM197012-197707

31221PLATE, CLUTCH PRESSURE

main31221-19015iTA1#..MTM197012-197707

31231HUB, CLUTCH RELEASE BEARING

main31231-14010iTA1#..MTM197012-197401

sub31231-14011

main31231-14011iTA1#..MTM197401-197611

sub31231-14012

main31231-14012iTA14..MTM197611-197707

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-38009iTA1#..MTM197012-197401

sub90363-38084

main90363-38084iTA1#..MTM197401-197707

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010iTA1#..MTM197012-197707

31236BALL, RELEASE FORK

main31236-20020iTA1#..MTM197312-197707

sub31236-30060

main31236-30020iTA1#..MTM197012-197312

31240FORK ASSY, CLUTCH RELEASE

main31204-14010iTA1#..MTM197012-197312

main31204-20040iTA1#..MTM197312-197707

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-12431iTA1#..MTM197312-197401

sub90506-16402

main90506-16297iTA1#..MTM197012-197312

main90506-16402iTA1#..MTM197401-197707

sub90506-16004

31250DISC ASSY, CLUTCH

main31250-12040iTA14..MTM197702-197707

sub31250-14090

main31250-14010iTA1#..MTM197208-197702

sub31250-12040

main31250-14011iTA1#..4F197012-197207

sub31250-14010

9010108350

main90101-08350

9161160816

main91611-60816

9411050800

main94110-50800

9451200800

main94512-00800

16 parts on this diagram · 1 diagram in section
