FUEL PUMP & PIPE

0001 1 0002 1 0003 1

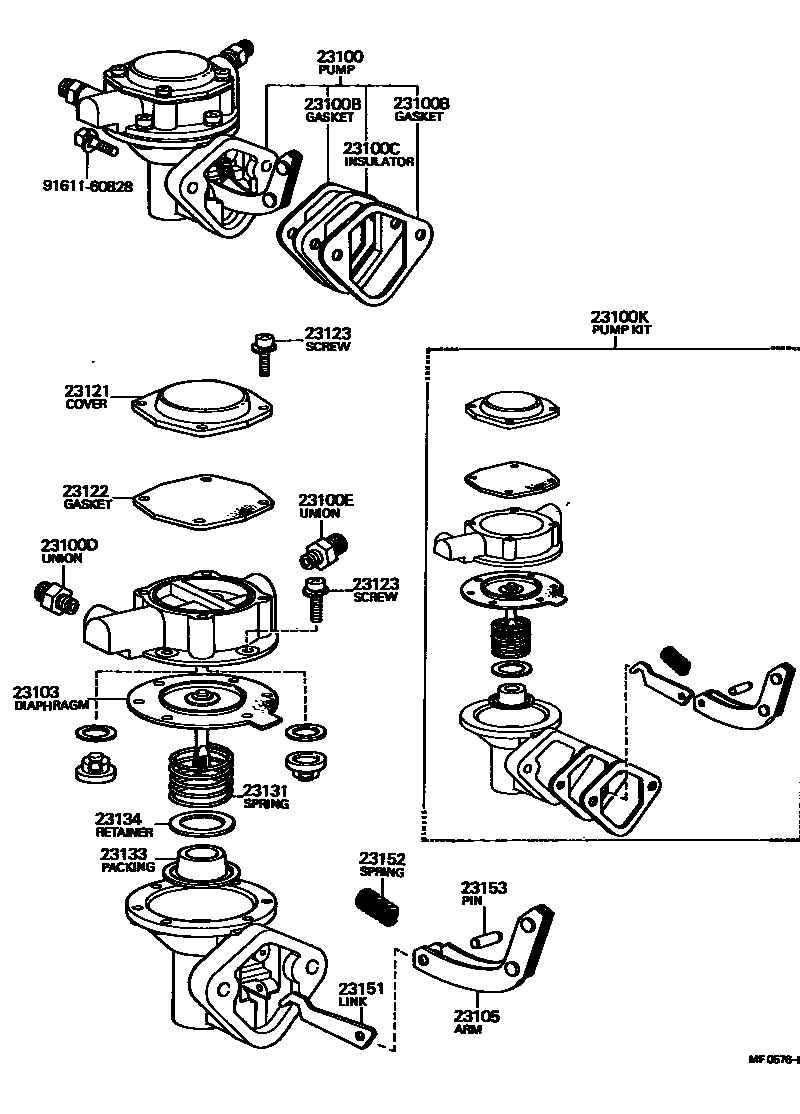

23100PUMP ASSY, FUEL

main23100-29055iT,2T..TA1#197012-197205

sub23100-29056

sub91611-60832

main23100-29056iT,2T..TA1#197205-197207

sub23100-29175

main23100-29057iT,2T#..TA1#197208-197401

sub23100-29058

main23100-29105iT,2T#..TA1#197401-197509

sub23100-29106

main23100-29107i2T#..TA14197510-197707

sub23100-29108

sub95331-06032

23100BGASKET, FUEL PUMP

main90923-05005iT,2T#..TA1#197012-197707

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001iT,2T#..TA1#197012-197707

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main23116-34030i2T#..TA14197510-197707

main90404-13105iT,2T#..TA1#197012-197308

main90404-13265iT,2T#..TA1#197308-197401

main90404-51244iT,2T#..TA1#197401-197509

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-13105iT,2T..TA1#197012-197207

main90404-51244iT,2T#..TA1#197401-197509

main90404-51266iT,2T#..TA1#197208-197707

23100KPUMP KIT, FUEL

main04231-25010iT,2T..TA1#197012-197205

23103DIAPHRAGM SUB-ASSY

main23103-25010iT,2T..TA1#197012-197205

23105ARM SUB-ASSY, ROCKER

main23105-30030iT,2T..TA1#197012-197205

23121COVER, FUEL PUMP

main23121-34020iT,2T#..TA1#197012-197509

main23121-41030i2T#..TA14197510-197707

23122GASKET, FUEL PUMP COVER

main23122-34020iT,2T#..TA1#197012-197509

main23122-41030i2T#..TA14197510-197707

23123SCREW, COVER SET, NO.1

main23123-33011iT,2T#..TA1#197012-197509

main23123-60022iT,2T#..TA1#197205-197509

FOR BODY SET

main93319-15014i2T#..TA14197510-197707

23131SPRING, DIAPHRAGM(FOR FUEL PUMP)

main23131-25010iT,2T..TA1#197012-197205

23133PACKING, OIL SEAL(FOR FUEL PUMP)

main23133-33010iT,2T..TA1#197012-197202

sub23133-33011

sub23134-22011

main23133-33011iT,2T..TA1#197202-197205

23134RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)

main23134-22010iT,2T..TA1#197012-197202

sub23134-22011

sub23133-33011

main23134-22011iT,2T..TA1#197202-197205

23151LINK, ROCKER ARM

main23151-30020iT,2T..TA1#197012-197205

23152SPRING, ROCKER ARM

main23152-30020iT,2T#..TA1#197205-197509

main23152-33010iT,2T..TA1#197012-197205

main23152-34040i2T#..TA14197510-197707

23153PIN, ROCKER ARM

main23153-60011iT,2T..TA1#197012-197205

9161160828

main91611-60828

18 parts on this diagram · 3 diagrams in section
