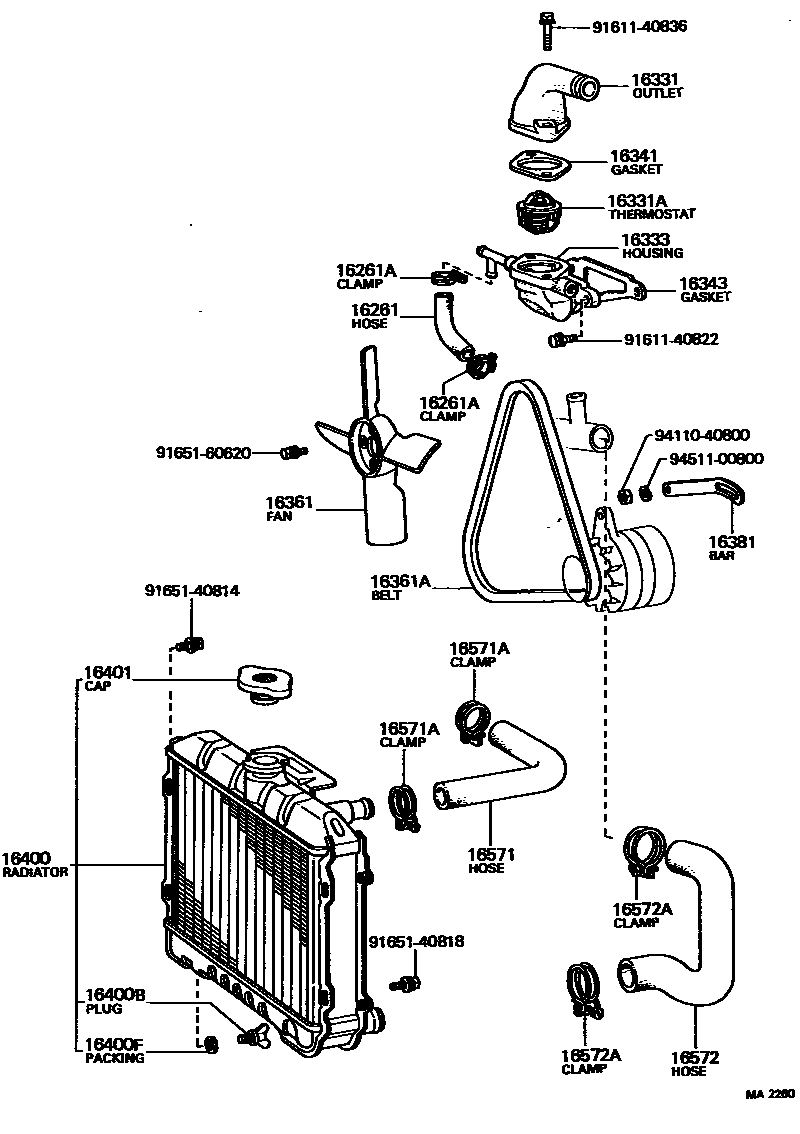

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-25010iT,2T#..TA1#197012-197606

main16261-25020i2T#..TA14197606-197707

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-22004iT,2T..TA1#197012-197207

sub96111-10220

main96111-10220iT,2T#..TA1#197401-197707

sub96112-10220

main96112-10220iT,2T#..TA1#197208-197401

16331OUTLET, WATER

main16331-26030i2T#..TA14197706-197707

sub16331-26031

sub91611-60825

sub91611-60830

main16331-31010iT,2T#..TA1#197012-197706

sub16331-26030

16331ATHERMOSTAT

main90916-03016iT,2T..TA1#197012-197207

WAX 82-95 FUJI-THOMSON

sub90916-03033

main90916-03021iT,2T..TA1#197012-197110

WAX 82-95 FUJI-THOMSON

sub90916-03038

main90916-03028iT,2T#..TA1#197110-197211

WAX 82-95 KUZEH

sub90916-03035

main90916-03029iT,2T#..TA1#197110-197211

WAX 88-100 FUJI-THOMSON

sub90916-03036

main90916-03034i2T#..TA14197510-197707

WAX 82-95 FUJI-THOMSON

main90916-03035iT,2T#..TA1#197211-197309

WAX 82-95 KUZEH

sub90916-03054

main90916-03036iT,2T#..TA1#197211-197707

WAX 88-100 FUJI-THOMSON

sub90916-03040

main90916-03037iT,2T#..TA1#197309-197707

WAX 82-95 KUZEH

sub90916-03083

main90916-03040i2T#..TA14197510-197707

WAX88-100 KUZEH

sub90916-03078

16333HOUSING, WATER OUTLET

main16303-25010iT,2T#..TA1#197012-197707

main16303-26030i2TB..TA14197603-197707

16341GASKET, WATER OUTLET

main16341-49010iT,2T#..TA1#197012-197707

sub16341-38010

16343GASKET, WATER OUTLET HOUSING

main16343-22010iT,2T#..TA1#197012-197707

sub16343-22011

16361FAN

main16361-31020iT,2T..TA1#..4F197012-197206

4 BLADES

sub16361-31021

main16361-31021i2T#..TA14197206-197707

4 BLADES

main16361-31030iT,2T#..TA1#197012-197509

5 BLADES

sub16361-31031

16361ABELT, V(FOR FAN & ALTERNATOR)

main99521-10851iT,2T..TA10,12197408-197707

L=851,W/COOLER

sub99321-00850

main99521-10860i2T#..TA14..MTM197012-197707

L=860

sub99321-00860

16381BAR, FAN BELT ADJUSTING

main16381-25010iT,2T#..TA1#197012-197707

16400RADIATOR ASSY

main16400-25010iT,2T#..TA1#..MTM197012-197209

sub16400-25060

main16400-25011iT,2T#..TA1#..MTM197209-197401

sub16400-25060

main16400-25013iT,2T#..TA1#..MTM197401-197501

sub16400-25014

sub90179-06078

main16400-25014iT,2T#..TA1#..MTM197501-197509

sub16400-25024

main16400-25015i2T#..TA14..MTM197510-197707

main16400-25020i2T..TA12..3FC197012-197209

main16400-25021i2T..TA12..3FC197209-197401

main16400-25023i2T..TA12..3FC197401-197501

sub16400-25024

sub90179-06078

main16400-25024i2T..TA12..3FC197501-197509

main16400-25025i2T..TA14..3FC197510-197707

16400BPLUG, RADIATOR DRAIN COCK

main90099-18502iT,2T..TA1#197012-197201

sub90910-09052

main90910-09052iT,2T#..TA1#197201-197509

main90910-09054i2T#..TA14197510-197707

16400FPACKING(FOR RADIATOR DRAIN COCK)

main90099-06027iT,2T..TA1#197012-197201

main90099-06030iT,2T#..TA1#197201-197509

main96710-01007i2T#..TA14197510-197707

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010iT,2T#..TA1#197401-197707

sub16401-36011

main16401-50010iT,2T#..TA1#197012-197401

16571HOSE, RADIATOR, INLET

main90916-01101iT,2T#..TA1#197012-197509

main90916-01143i2T#..TA14197510-197707

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-43005iT,2T..TA1#197012-197104

ID=43

sub96111-10430

main90467-37001i2T#..TA14197706-197707

FOR WATER OUTLET SIDE

sub90467-37003

main96111-10430iT,2T#..TA1#197104-197706

ID=43

main96111-10430i2T#..TA14197706-197707

FOR RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16571-25010iT,2T#..TA1#197012-197404

main16571-25011iT,2T#..TA1#197404-197509

main16571-26030i2T#..TA14197510-197707

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036iT,2T#..TA1#197012-197707

RADIATOR SIDE

main90460-49062iT,2T#..TA1#197409-197707

WATER PUMP SIDE

sub96111-10490

main90460-50016iT,2T..TA1#197012-197104

WATER PUMP SIDE

sub96111-10500

main96111-10500iT,2T#..TA1#197104-197409

WATER PUMP SIDE

9161140822

main91611-40822

9161140836

main91611-40836

9165140814

main91651-40814

9165140818

main91651-40818

9165160620

main91651-60620

9411040800

main94110-40800

9451100800

main94511-00800

25 parts on this diagram · 3 diagrams in section
