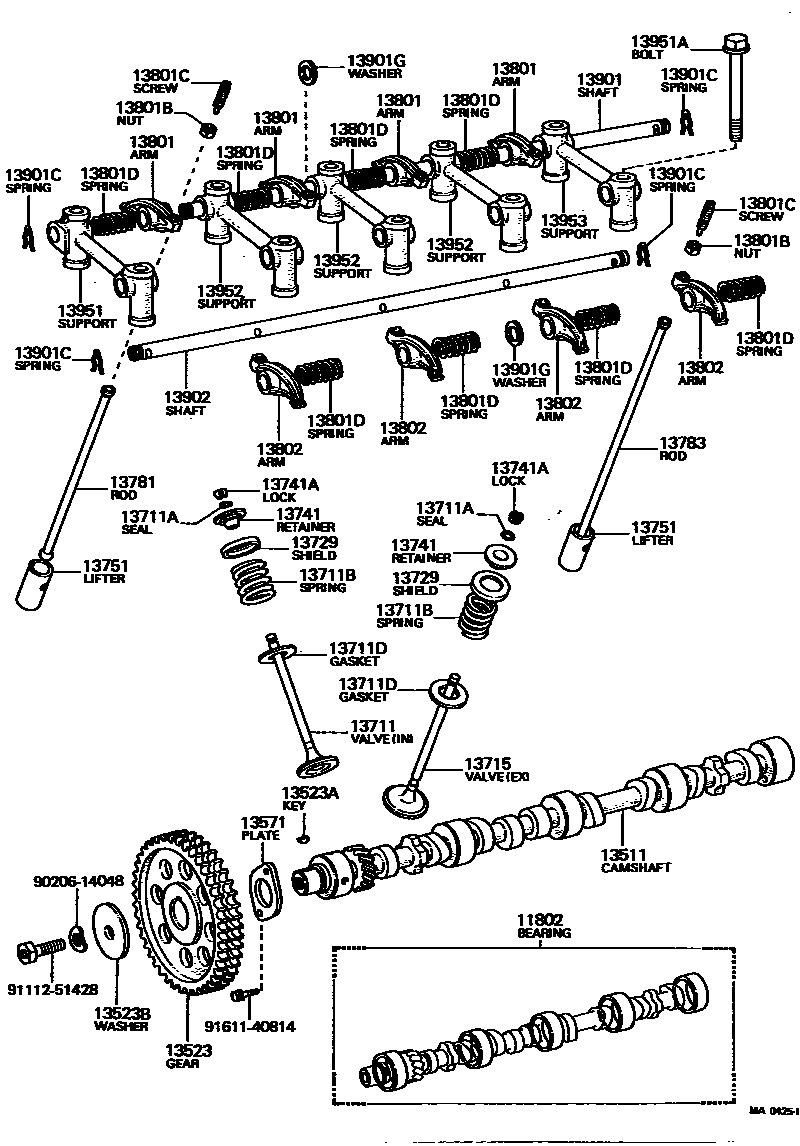

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
N=36
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
WD=4.7,CW=5.75
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13729SHIELD, VALVE STEM OIL
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
sub90170-08005
13801CSCREW, VALVE ADJUSTING
sub90913-05020
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901CSPRING, RETAINER(FOR VALVE ROCKER SHAFT)
13901GWASHER, ROCKER SHAFT
13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
12-1.25PX168-24
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
9020614048
main90206-14048
9111251428
main91112-51428
9161140814
main91611-40814
33 parts on this diagram · 2 diagrams in section
