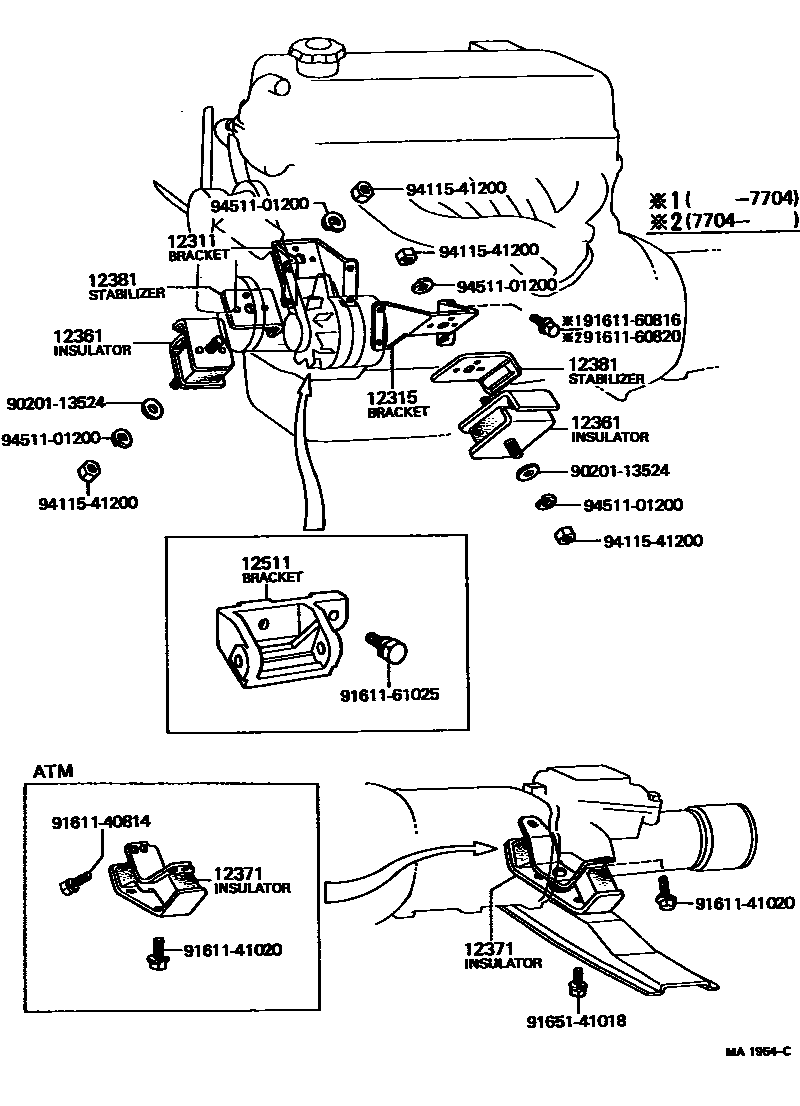

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-25011iT,2T..TA1#197012-197707

sub12311-25012

main12311-26010i2TB..TA12,14197208-197707

sub12311-26011

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-25011iT,2T#..TA1#197012-197707

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-25012×2iT,2T#..TA1#197012-197706

main12361-25013×2i2T#..TA14197706-197707

sub12361-25014

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-33010iT,2T#..TA1#..MTM197012-197707

main12371-34020i2T..TA12,14..3FC197012-197707

12381STABILIZER, ENGINE MOUNTING

main12381-25010×2iT,2T#..TA1#197012-197707

12511BRACKET, ALTERNATOR, NO.1

main12511-25010iT,2T#..TA1#197012-197707

9020113524

main90201-13524

9161140814

main91611-40814

9161141020

main91611-41020

9161160816

main91611-60816

9161160820

main91611-60820

9161161025

main91611-61025

9165141018

main91651-41018

9411541200

main94115-41200

9451101200

main94511-01200

15 parts on this diagram · 1 diagram in section
