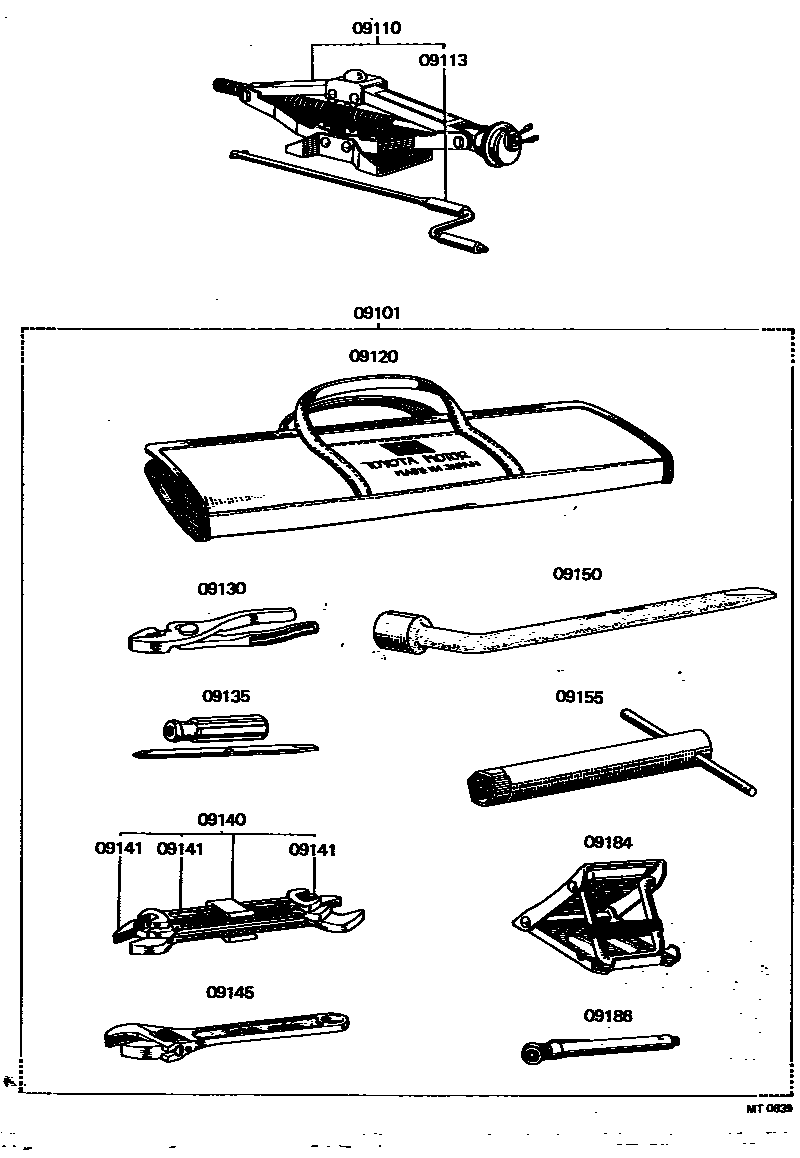

STANDARD TOOL

09101TOOL SET, STANDARD W/O JACK

main09101-12030iTA1#197012-197707

09110JACK ASSY

main09110-14010iTA1#197012-197207

main09110-14011iTA1#197208-197707

09113HANDLE, JACK

main09113-20011iTA1#197208-197707

09120BAG, TOOL

main09120-12011iTA1#197012-197707

09130PLIERS

main09130-00010iTA1#197012-197707

sub09130-00012

09135DRIVER, SCREW

main09135-00010iTA1#197012-197707

(+)(-)

sub99915-10700

09140SPANNER SET

main09140-12011iTA1#197012-197707

09141SPANNER

main09141-00032iTA1#197012-197707

10X12

sub99914-11012

main09141-12011iTA1#197012-197707

8X10

sub99914-10810

main09141-12020iTA1#197012-197707

14X17

sub99914-11417

09145WRENCH, MONKEY

main09145-00020iTA1#197012-197401

sub99911-10200

09150WRENCH, HUB NUT BOX

main09150-00010iTA1#197012-197707

09155WRENCH, SPARK PLUG

main09155-51010iTA1#197012-197707

sub09155-26010

09184STOPPER, WHEEL

main09184-00010iTA1#197012-197707

09186GAGE, TIRE

main09186-00010iTA1#197208-197509

13 parts on this diagram · 1 diagram in section
