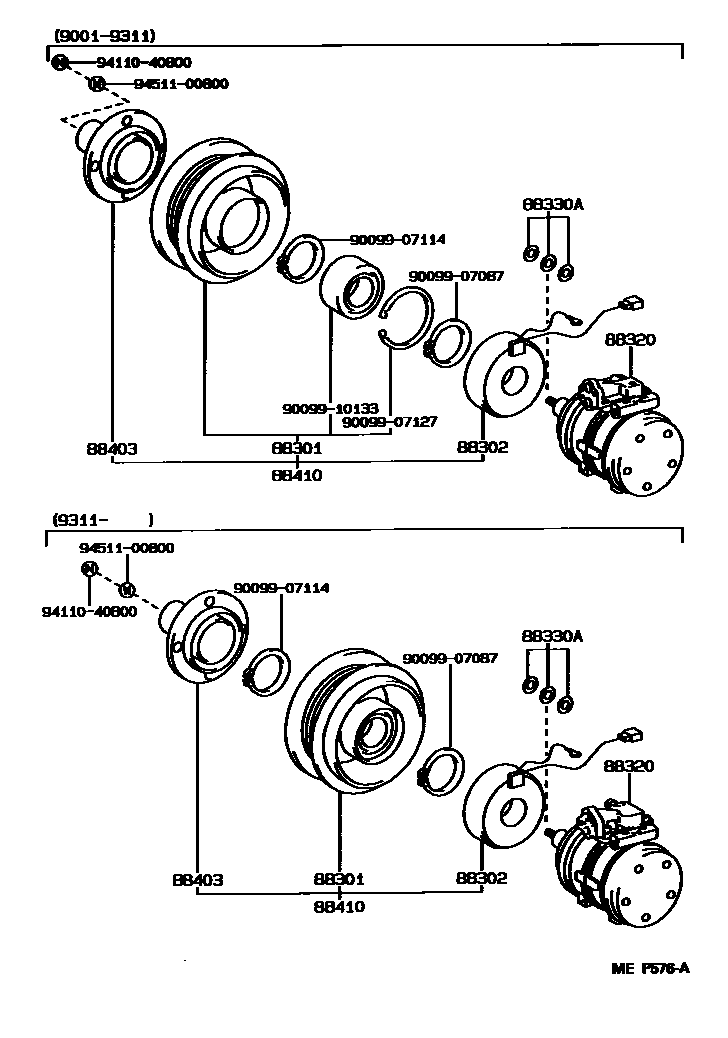

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-17010iSW2#199001-199311

main88412-17020iSW2#199311-199506

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-17060iSW2#199001-199311

main88411-17070iSW2#..USA199201-199311

sub88411-17080

main88411-17080iSW2#199311-199506

88320COMPRESSOR ASSY, COOLER

main88320-17090iSW2#199001-199006

sub88320-17091

main88320-17091iSW2#199006-199311

main88320-17100iSW2#199311-199506

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iSW2#199001-199506

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iSW2#199001-199506

88410CLUTCH ASSY, MAGNET

main88410-17060iSW2#199001-199201

main88410-17070iSW2#199201-199311

sub88410-17080

main88410-17080iSW2#199311-199506

9009907087

main90099-07087

9009907114

main90099-07114

9009907127

main90099-07127

9009910133

main90099-10133

9411040800

main94110-40800

9451100800

main94511-00800

12 parts on this diagram · 4 diagrams in section
