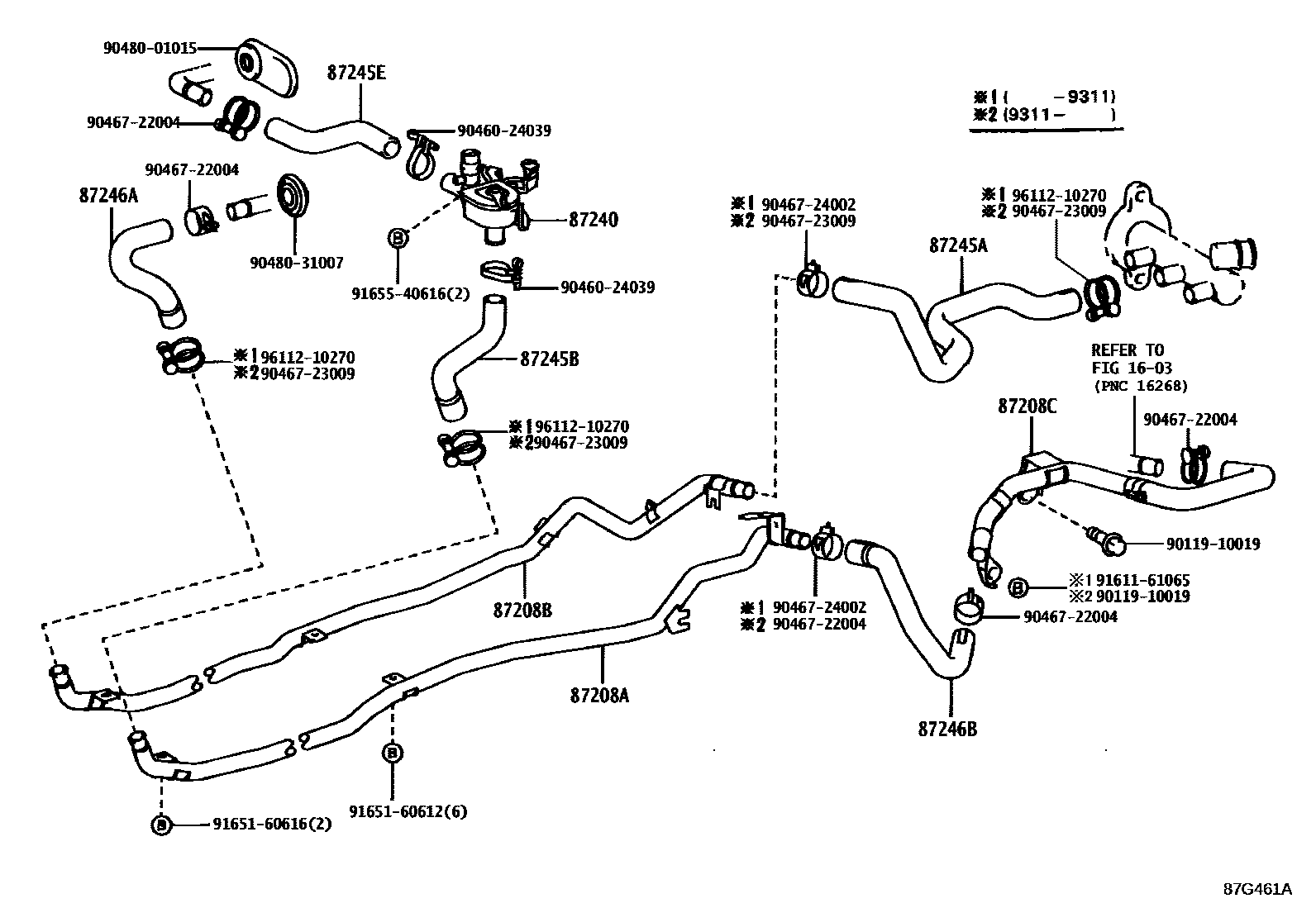

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-17050iSW20199001-199506

main87208-17070iSW21199001-199506

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-17040iSW20199001-199506

sub87208-17041

sub91631-60628

main87208-17060iSW21199001-199506

sub87208-17041

sub90467-23009

sub91631-60628

87208CPIPE SUB-ASSY, HEATER WATER, C

main87208-17080iSW2#..5F199001-199506

main87208-17090iSW21..4FC199001-199201

main87208-17100iSW21..5F199201-199506

main87208-17110iSW21..4FC199201-199506

87240VALVE ASSY, HEATER WATER

main87240-17080iSW2#199001-199506

87245AHOSE, HEATER WATER, INLET A

main87245-17230iSW20199001-199506

main87245-17250iSW21199001-199506

87245BHOSE, HEATER WATER, INLET B

main87245-17300iSW2#199001-199506

87245EHOSE, HEATER WATER, INLET E

main87245-17290iSW2#199001-199506

87246AHOSE, HEATER WATER, OUTLET A

main87245-17180iSW2#199001-199506

87246BHOSE, HEATER WATER, OUTLET B

main87245-17240iSW20199001-199506

main87245-17260iSW21199001-199506

9011910019

main90119-10019

9046024039

main90460-24039

9046722004

main90467-22004

9046723009

main90467-23009

9046724002

main90467-24002

9048001015

main90480-01015

9048031007

main90480-31007

9161161065

main91611-61065

9165160612

main91651-60612

9165160616

main91651-60616

9165540616

main91655-40616

9611210270

main96112-10270

22 parts on this diagram · 2 diagrams in section
