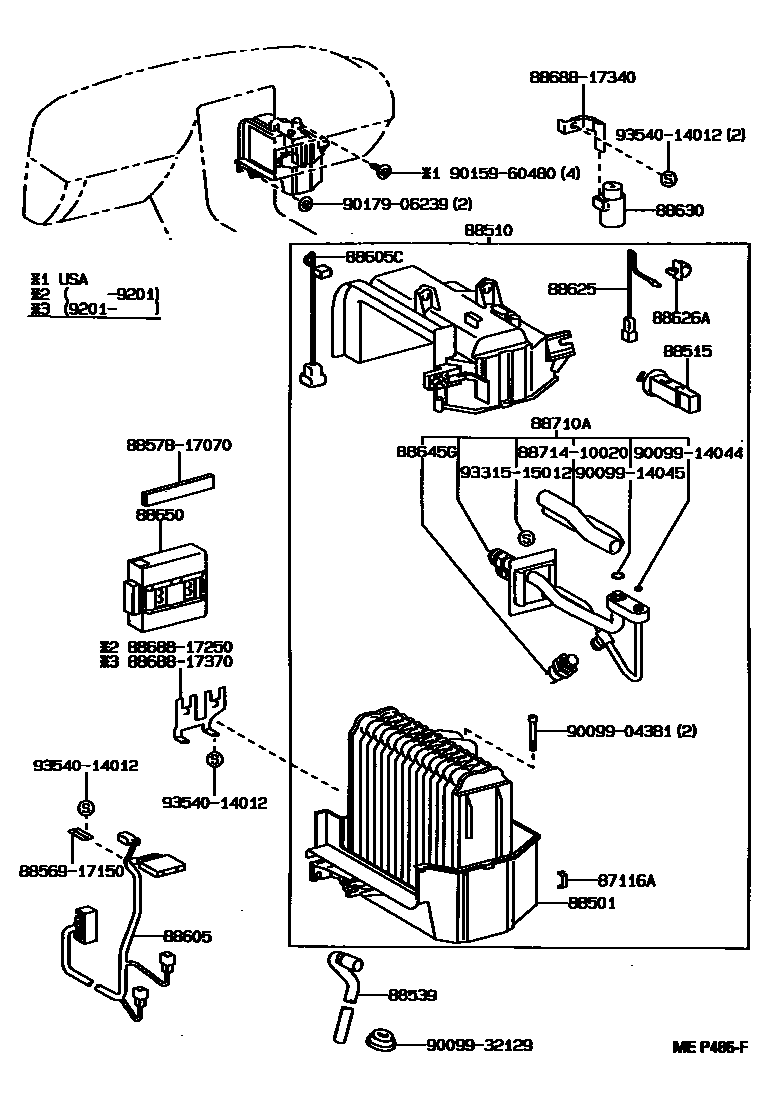

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×4iSW2#199311-199506

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17030iSW2#199001-199311

main88501-17060iSW2#199311-199501

main88501-17061iSW2#199501-199506

88510UNIT ASSY, COOLER

main88510-17140iSW2#199001-199201

main88510-17141iSW2#199201-199311

main88510-17250iSW2#199311-199506

88515VALVE, COOLER EXPANSION

main88515-14060iSW2#199001-199008

main88515-14061iSW2#..CND199008-199102

main88515-14062iSW20199201-199310

main88515-20100iSW2#199311-199506

sub88515-22240

main88515-33010iSW2#..CND199201-199310

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17030iSW2#..CND199001-199311

main88539-17040iSW2#..USA199001-199506

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-17270iSW2#199001-199201

main88605-17271iSW2#199201-199311

main88605-17340iSW2#199311-199506

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-17330iSW2#199311-199506

main88648-17030iSW2#199001-199311

88625THERMISTOR, COOLER, NO.1

main88625-20350iSW2#199201-199506

main88625-24050iSW2#199001-199201

88626AHOLDER, THERMISTOR

main88626-28010×2iSW2#199311-199506

88630RELAY ASSY, COOLER

main88630-95702iSW2#199001-199506

88645GSWITCH, PRESSURE

main88645-10020iSW2#..CND199001-199009

main88645-30281iSW2#..USA199001-199009

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-17120iSW2#199001-199201

main88650-17130iSW2#199201-199506

88710ATUBE ASSY, AIR CONDITIONER

main88710-17070iSW2#199001-199311

main88710-17110iSW2#199311-199506

8856917150CLAMP (FOR COOLER RELAY)

main88569-17150

8857817070PAKING, COOLER AIR DUCT

main88578-17070

8868817250BRACKET, COOLER DIAPHRAGM

main88688-17250

8868817340BRACKET, COOLER DIAPHRAGM

main88688-17340

8868817370BRACKET, COOLER DIAPHRAGM

main88688-17370

8871410020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10020

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9009932129

main90099-32129

9015960480

main90159-60480

9017906239

main90179-06239

9331515012

main93315-15012

9354014012

main93540-14012

27 parts on this diagram · 2 diagrams in section
