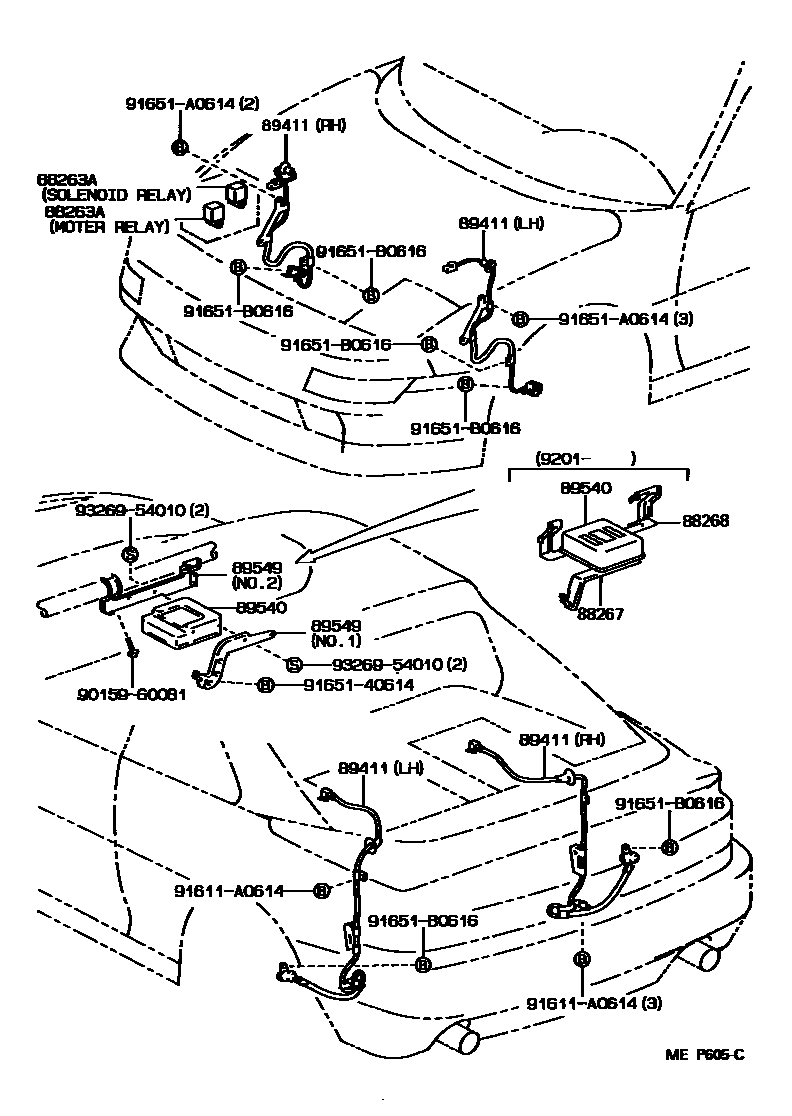

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-14110iSW2#199001-199506

MOTOR

main88263-14120iSW2#199001-199506

SOLENOID

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-17050iSW2#199201-199311

main88267-17080iSW2#199311-199506

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-17050iSW2#199201-199311

main88268-17080iSW2#199311-199506

89411SENSOR, SPEED

main89542-17010iSW2#199001-199201

FRONT RH

sub89542-17020

main89542-17020iSW2#199201-199506

FRONT RH

main89543-17010iSW2#199001-199201

FRONT LH

sub89543-17020

main89543-17020iSW2#199201-199506

FRONT LH

main89545-17010iSW2#199001-199506

REAR RH

main89546-17010iSW2#199001-199506

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-17010iSW2#199001-199201

main89541-17020iSW2#199201-199506

89549BRACKET, SKID CONTROL COMPUTER

main88267-17030iSW2#199001-199201

NO.1

main88268-17030iSW2#199001-199201

NO.2

9015960081

main90159-60081

91611A0614

main91611-A0614

9165140614

main91651-40614

91651A0614

main91651-A0614

91651B0616

main91651-B0616

9326954010

main93269-54010

12 parts on this diagram · 1 diagram in section
