OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20160iSW21..4FC199001-199502

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iSW21..4FC199001-199506

84722SWITCH, TRANSMISSION CONTROL

main84722-17060-01iSW21..4FC199001-199201

BLACK,TRIM2#

main84722-17080-C0iSW21..4FC199311-199506

BLACK,TRIM0#,2#

85420SOLENOID ASSY, TRANSMISSION

main85420-12062iSW21..4FC199001-199502

NO.3

main85420-22080×2iSW21..4FC199001-199311

NO.1 OR NO.2

89411CSENSOR, SPEED

main89411-20050iSW21..4FC199001-199506

89414ROTOR, SENSOR

main89414-12010iSW21..4FC199001-199506

9010505007

main90105-05007

9010505010

main90105-05010

9010506017

main90105-06017

9010506049

main90105-06049

9030106004

main90301-06004

9161160814

main91611-60814

9672119009

main96721-19009

9672124018

main96721-24018

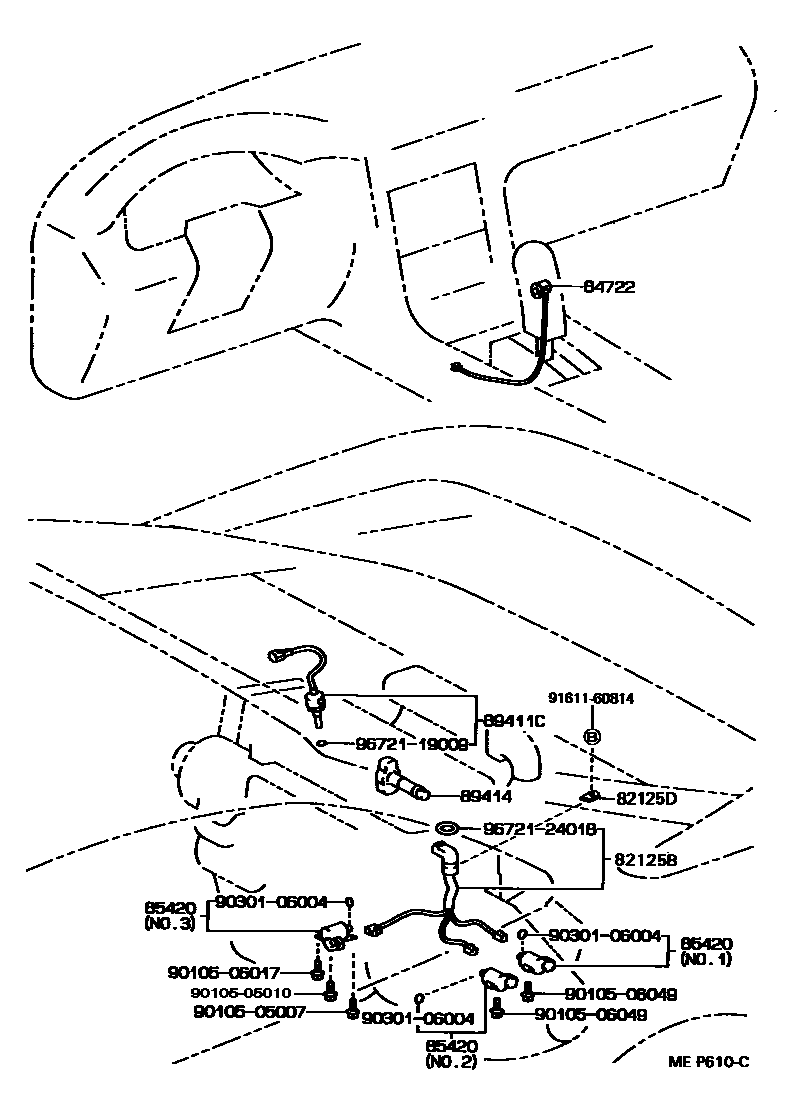

14 parts on this diagram · 1 diagram in section
