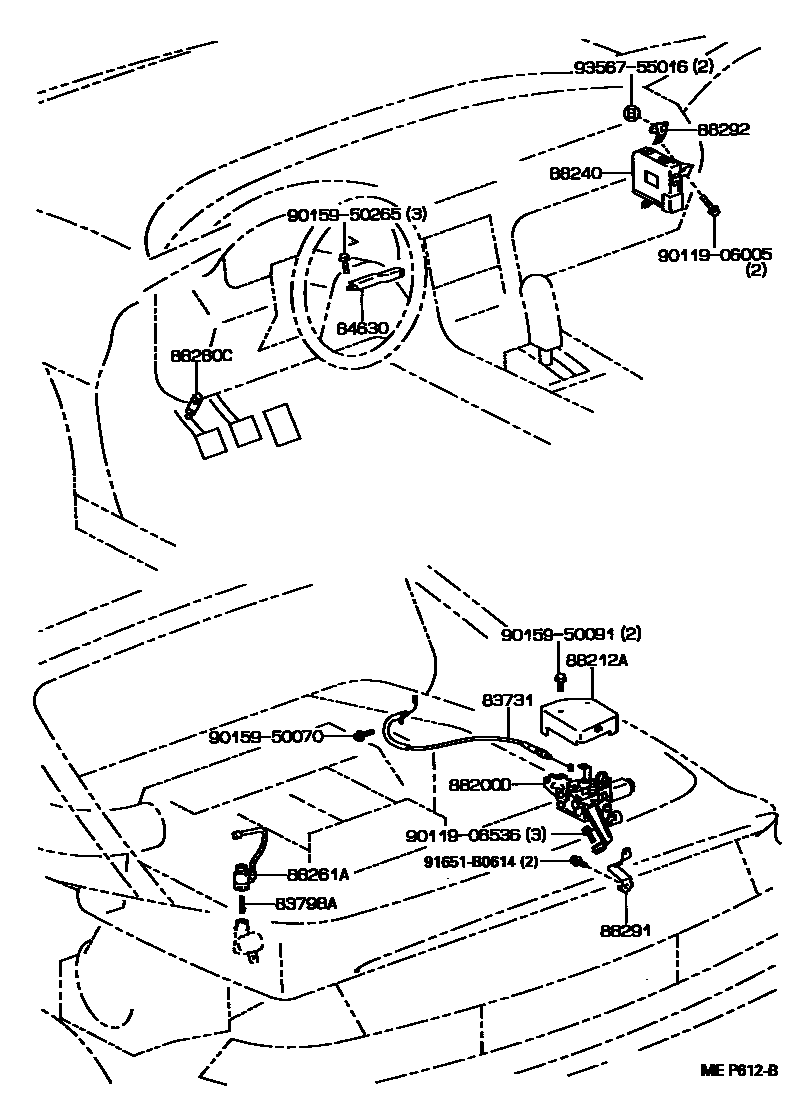

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-17010iSW2#199001-199506

83798AKEY, SPEEDOMETER CABLE ADAPTER

main83798-20020iSW2#..5F199001-199201

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-17020iSW2#..CND199001-199201

sub84630-17040

main84630-17030iSW2#..USA199001-199311

main84630-33020iSW2#199311-199506

sub84630-26011

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-17060iSW2#199001-199201

sub88200-17070

main88200-17070iSW2#199201-199506

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-17030iSW2#199001-199506

88240COMPUTER ASSY, CRUISE CONTROL

main88240-17100iSW2#..CND199001-199201

main88240-17120iSW21..4FC199001-199201

main88240-17140iSW2#..5F..USA199001-199201

main88240-17160iSW2#199201-199311

main88240-17180iSW2#199311-199506

88261ASENSOR, SPEED CRUISE CONTROL

main88261-20070iSW2#..5F199001-199201

88280CSWITCH ASSY, CLUTCH

main88280-14030iSW2#..5F199311-199506

main88280-20010iSW2#..5F199001-199311

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-17030iSW2#199001-199506

88292BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2

main88292-17030iSW2#199001-199506

9011906005

main90119-06005

9011906536

main90119-06536

9015950070

main90159-50070

9015950091

main90159-50091

9015950265

main90159-50265

91651B0614

main91651-B0614

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
