METER
83100BBULB, COMBINATION METER, NO.1
12V 3.4W,BLUE CAP
14V 2.0W,W/O SOCKET
12V 1.4W W(SOCKET)
12V1.4W WHITE W(SKT)
14V0.84W W/O(SOCKET)
12V 1.2W W/O SOCKET
12V 3.4W
83100GGLASS, COMBINATION METER
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
83132CASE, COMBINATION METER
sub83132-17270
sub83132-17270
sub83132-17310
W(*66) OR W(PS) OR W(*CRC) OR W(THEFT-DETERRENT SYSTEM)
sub83132-17530
sub83132-17530
sub83132-17590
W(THEFT-DETERRENT SYSTEM)
W(*66) OR W(POWER STEERING) OR W(*IW) OR W(*TDS)
sub83132-17790
83159BRELAY ASSY, METER
BULB CHECK
OIL LEVEL
83247PLATE, METER CIRCUIT
sub83247-17690
sub83247-17710
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
sub83247-17770
sub83247-17790
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
sub83247-17910
W(THEFT-DETERRENT SYSTEM)
W(*66) OR W(POWER STEERING) OR W(*CRC)
W(*66) OR W(POWER STEERING) OR W(*IW)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
83247CPLATE, MATER CIRCUIT, NO.3
83270TACHOMETER ASSY, ENGINE
sub83242-17690
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
W(THEFT-DETERRENT SYSTEM)
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
8319487501
main83194-87501
9009900211
main90099-00211
9009900225
main90099-00225
9009900917
main90099-00917
9009900929
main90099-00929
9009900939
main90099-00939
9009900944
main90099-00944
9356755016
main93567-55016

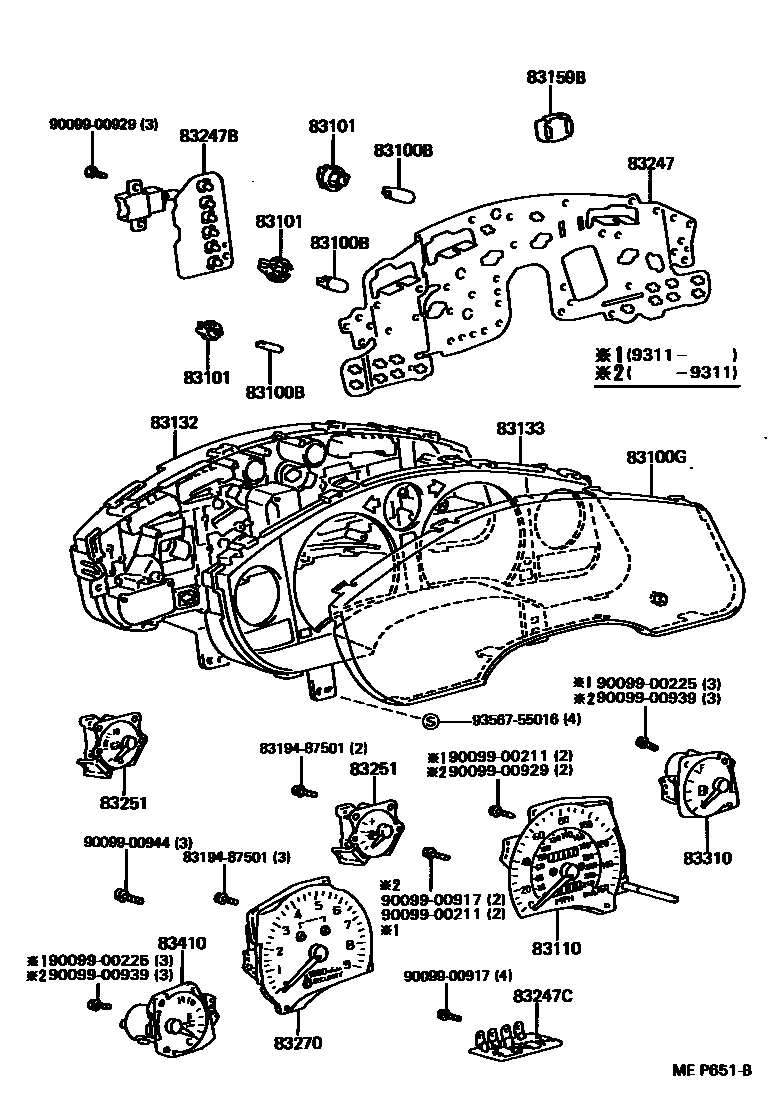

22 parts on this diagram · 4 diagrams in section
