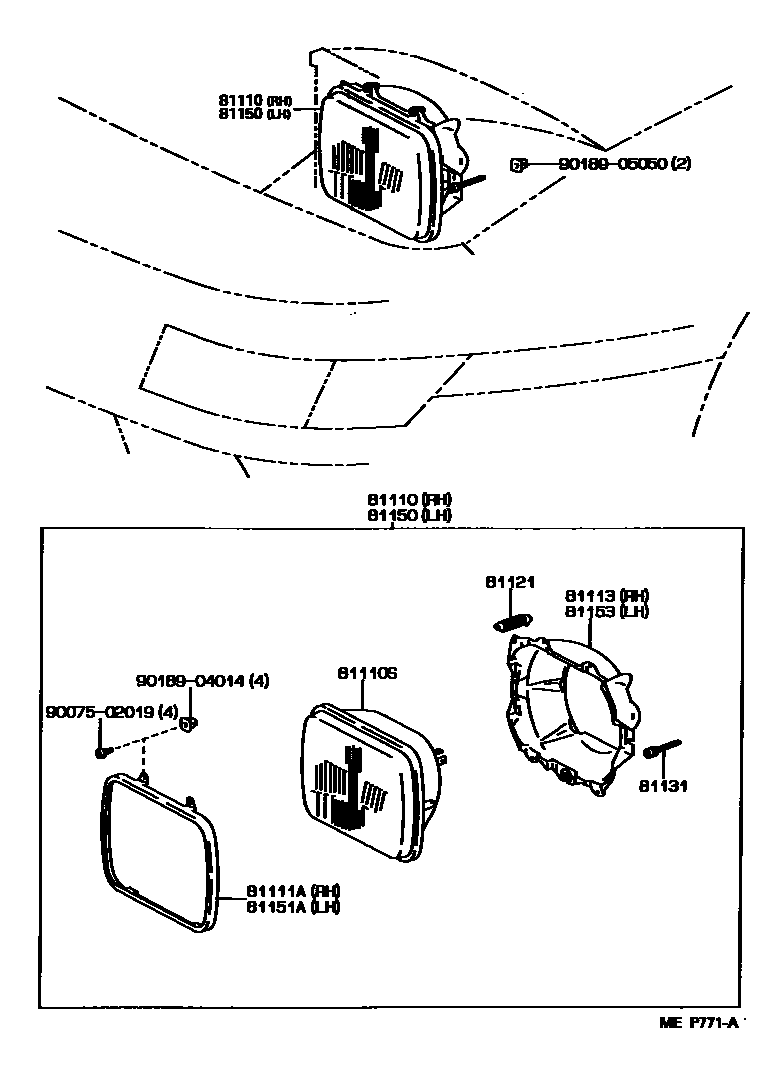

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-17120iSW2#199001-199506

81110SSEALED BEAM UNIT, NO.1

main90981-04020iSW2#199001-199506

12V 65/35W,*HAL,*WB

main90981-04043iSW2#199203-199311

12V 65/55W,*HAL,*WB

sub90981-04020

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-2B360iSW2#199001-199506

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-2B360iSW2#199001-199506

81121SPRING, HEADLAMP TENSION

main90075-25501iSW2#199001-199506

81131SCREW, HEADLAMP ADJUSTING

main81131-17010iSW2#199001-199506

81150HEADLAMP ASSY, LH

main81150-17120iSW2#199001-199506

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-2B360iSW2#199001-199506

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-2B360iSW2#199001-199506

9007502019

main90075-02019

9018904014

main90189-04014

9018905050

main90189-05050

12 parts on this diagram · 1 diagram in section
