ACCELERATOR LINK
78010BSPRING, TORSION (FOR ACCELERATOR LINK)
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78100LINK ASSY, ACCELERATOR
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111CPIN (FOR ACCELERATOR PEDAL)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET
78180PCABLE ASSY, ACCELERATOR CONTROL
W(INTERMITTENT WIPER)
W(INTERMITTENT WIPER)
78183BCLAMP, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9011906178
main90119-06178
9011906433
main90119-06433
9011906494
main90119-06494
9011906560
main90119-06560
9015950292
main90159-50292
9020108076
main90201-08076
9046400601
main90464-00601
9046709074
main90467-09074
9046712026
main90467-12026
9046713030
main90467-13030
9095901399
main90959-01399
9095901413
main90959-01413
91511B0814
main91511-B0814
9161140614
main91611-40614
91611B0814
main91611-B0814
9165140620
main91651-40620
9165540630
main91655-40630
9616000600
main96160-00600

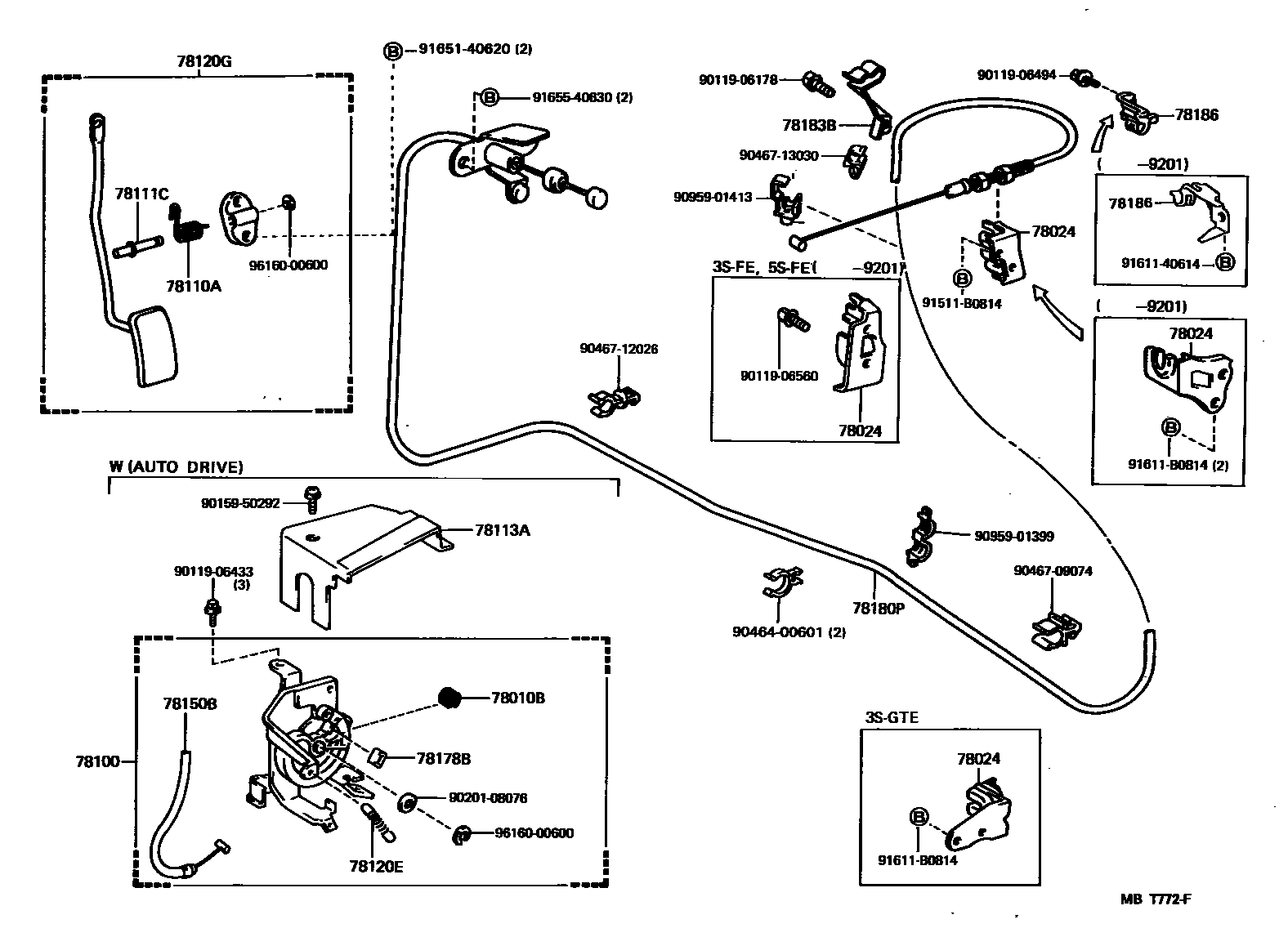

31 parts on this diagram · 1 diagram in section
