BATTERY CARRIER

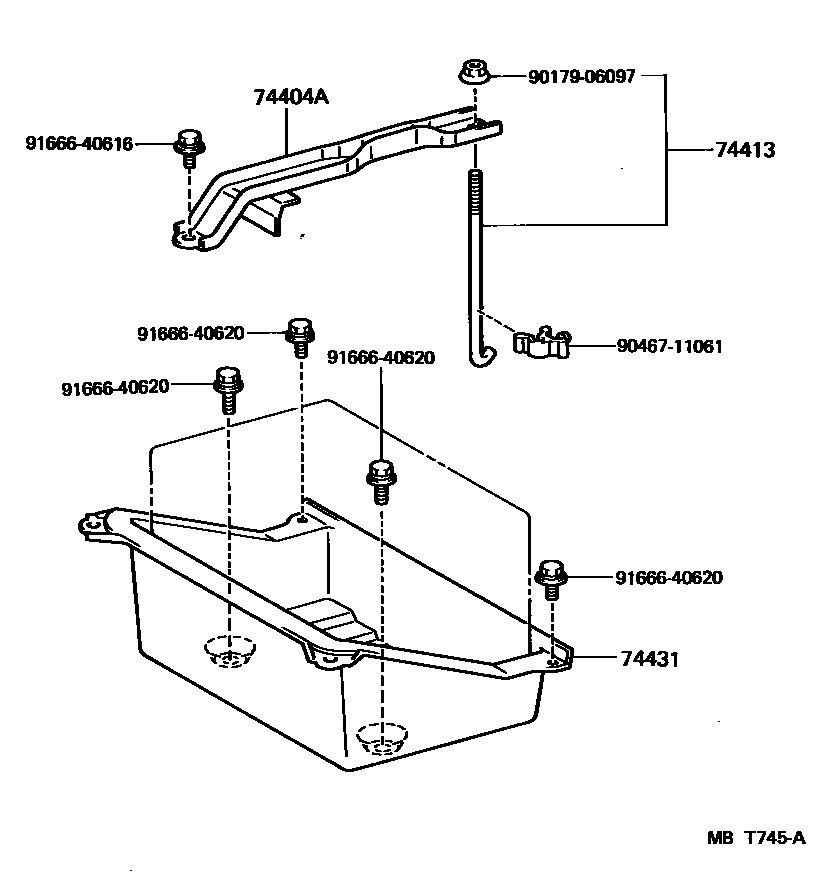

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-17080i199001-199506

74413BOLT, BATTERY CLAMP

main74451-17010i199001-199506

74431TRAY, BATTERY

main74431-17010i199001-199506

9017906097

main90179-06097

9046711061

main90467-11061

9166640616

main91666-40616

9166640620

main91666-40620

7 parts on this diagram · 1 diagram in section
