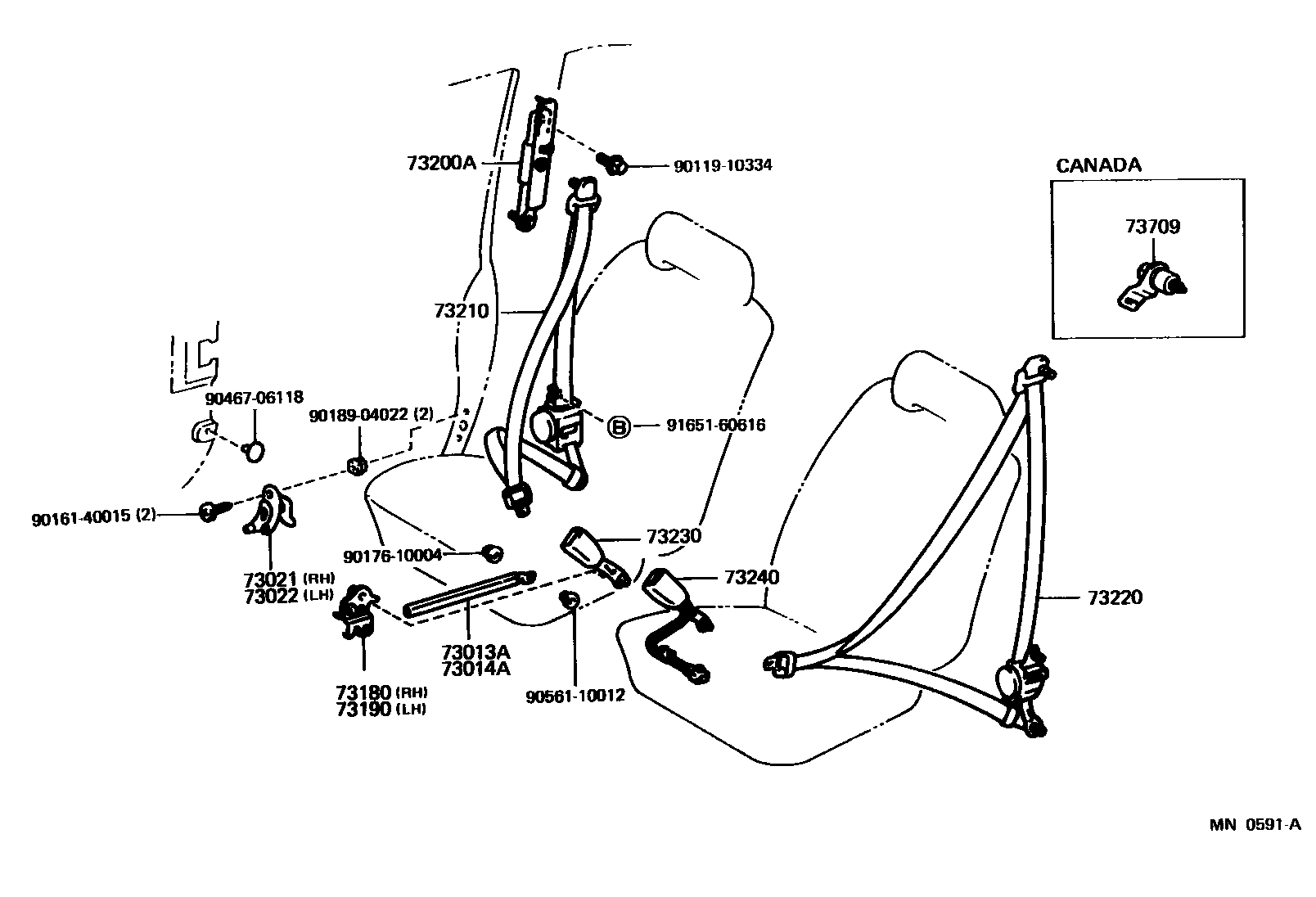

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
BLACK,TRIM2#
RED,TRIM3#
DARK BLUE,TRIM8#
BLACK,TRIM2#
BLACK,TRIM0#,2#
DARK BLUE,TRIM8#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
BLACK,TRIM0#,2#
DARK BLUE,TRIM8#
BLACK,TRIM0#,2#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM0#,2#
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73709BRACKET SUB-ASSY, TETHER ANCHOR
9011910334
main90119-10334
9016140015
main90161-40015
9017610004
main90176-10004
9018904022
main90189-04022
9046706118
main90467-06118
9056110012
main90561-10012
9165160616
main91651-60616
19 parts on this diagram · 1 diagram in section
