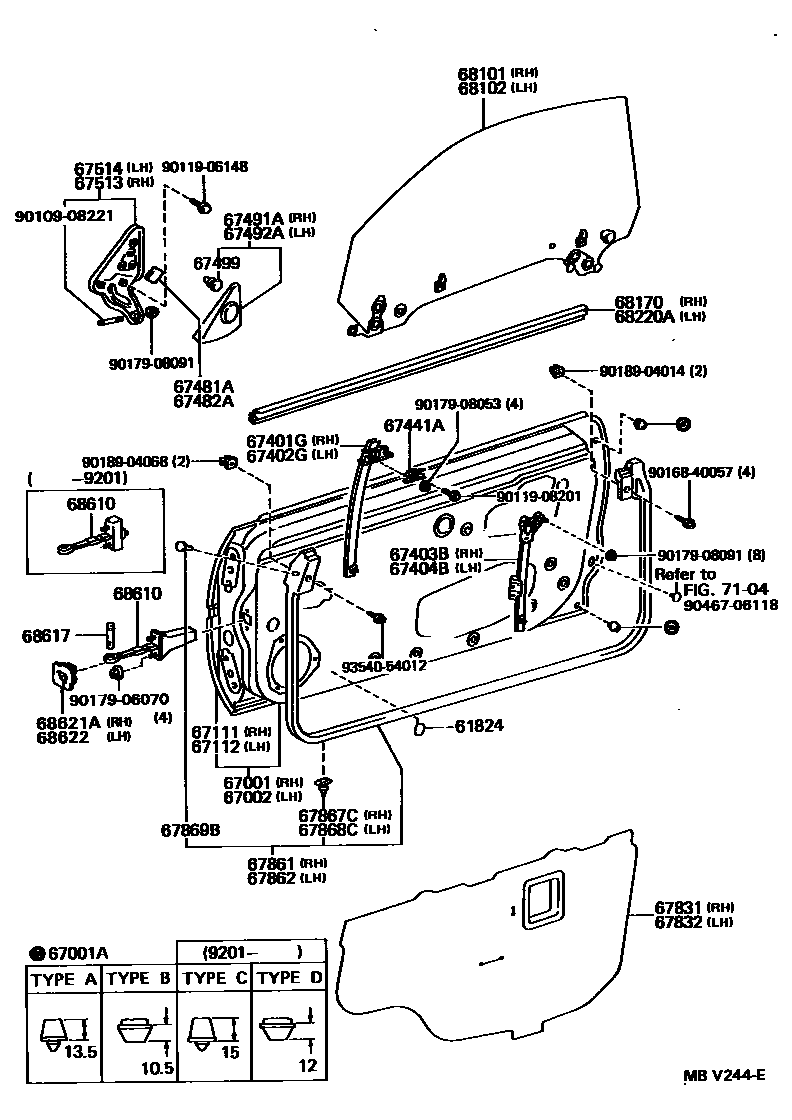

FRONT DOOR PANEL & GLASS
61824PLATE, NOISE CONTROL, NO.1
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
TYPE C
TYPE A
TYPE D
TYPE B
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67402GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67441APLATE, FRONT DOOR FRONT GUIDE, UPPER
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67513BRACKET, FRONT DOOR MIRROR, RH
67514BRACKET, FRONT DOOR MIRROR, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68610CHECK ASSY, FRONT DOOR
68617PIN, FRONT DOOR CHECK
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
7104
9010908221
9011906148
9011908201
9016840057
9017906070
9017908053
9017908091
9018904014
9018904068
9046706118
9354054012
45 parts on this diagram · 2 diagrams in section
