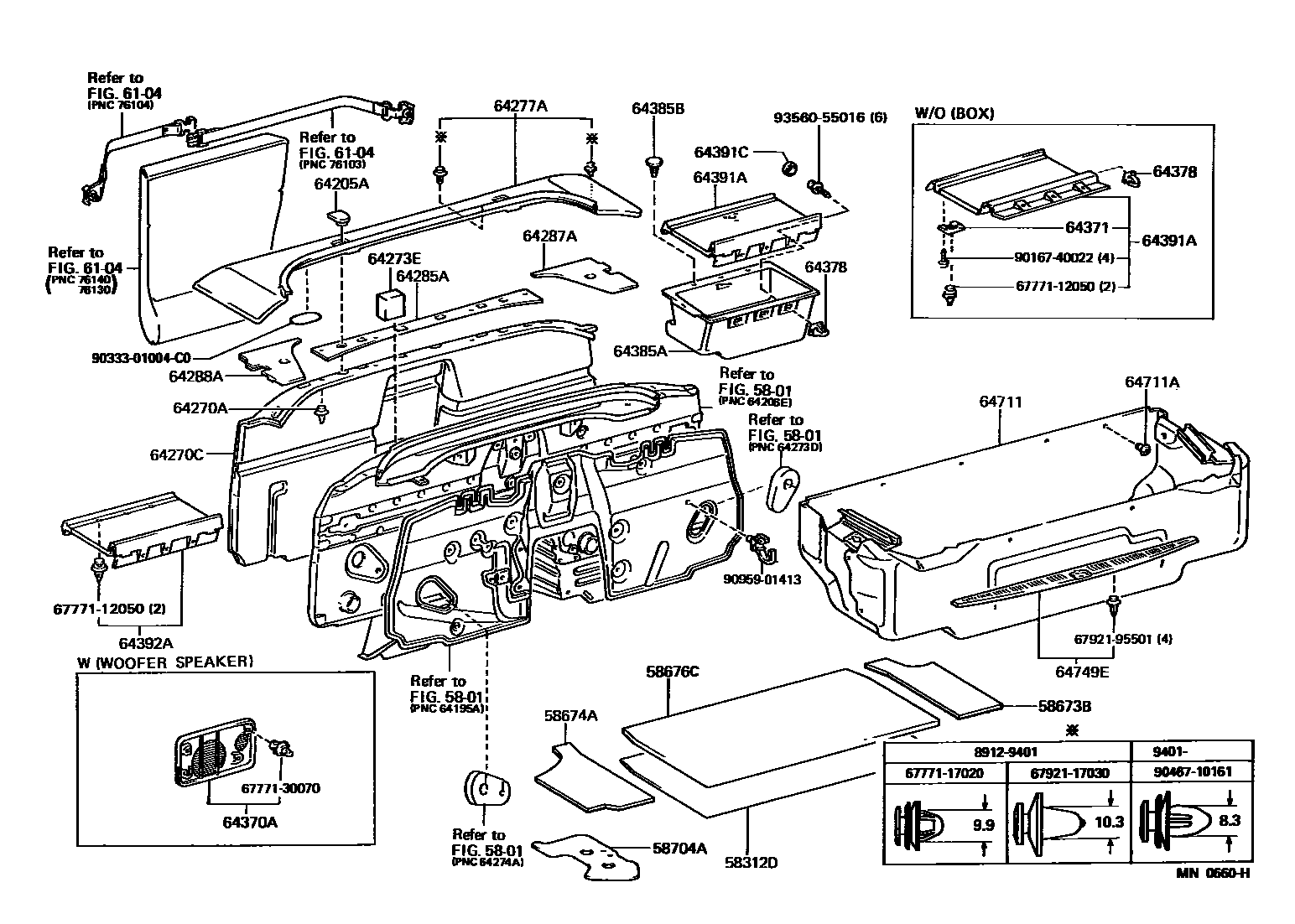

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
5801
58312DBOARD, REAR FLOOR, NO.1
58673BPAD, REAR FLOOR SILENCER, NO.1
58674APAD, REAR FLOOR SILENCER, NO.2
58676CPAD, REAR FLOOR SILENCER
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
6104
64205ACOVER SUB-ASSY, ROOM PARTITION
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64270CBOARD ASSY, ROOM PARTITION
LUXURY PACKAGE,BLACK,TRIM2#
BLACK,TRIM2#
W(CARPET TYPE),BLACK,TRIM2#
BLACK,TRIM0#,2#
LUXURY PACKAGE,BLACK,TRIM0#,2#
RED,TRIM3#
W(CARPET TYPE),RED,TRIM3#
LUXURY PACKAGE,DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
W(CARPET TYPE),DARK BLUE,TRIM8#
BLACK,TRIM0#,2#
LUXURY PACKAGE,BLACK,TRIM0#,2#
64273EPAD, ROOM PARTITION
sub61825-42010
64277AMOULDING, ROOM PARTITION TRIM
64285ACOVER, ROOM PARTITION, NO.3
64287ACOVER, ROOM PARTITION, NO.4 RH
64288ACOVER, ROOM PARTITION, NO.4 LH
64370AGRILLE ASSY, REAR SPEAKER
IVORY,TRIM0#,RH
BLACK,TRIM2#,RH
DARK BLUE,TRIM8#,RH
64371RETAINER, PACKAGE TRAY TRIM
64378GROMMET, PACKAGE TRAY TRIM LID
64385APOCKET, PACKAGE TRAY TRIM
64385BCLIP
64391ALID, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
RED,TRIM3#
DARK BLUE,TRIM8#
BLACK,TRIM0#,2#
BLACK,TRIM2#
DARK BLUE,TRIM8#
W(CARPET TYPE),BLACK,TRIM2#
BLACK,TRIM2#
W(CARPET TYPE),RED,TRIM3#
RED,TRIM3#
DARK BLUE,TRIM8#
W(CARPET TYPE),DARK BLUE,TRIM8#
LUXURY PACKAGE,BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
LUXURY PACKAGE,BLACK,TRIM0#,2#
DARK BLUE,TRIM8#
LUXURY PACKAGE,DARK BLUE,TRIM8#
W(RADIO),BLACK,TRIM2#
W(RADIO),BLACK,TRIM0#,2#
W(RADIO),DARK BLUE,TRIM8#
LUXURY PACKAGE & W(RADIO),BLACK,TRIM0#,2#
LUXURY PACKAGE & W(RADIO),BLACK,TRIM2#
W(RADIO),BLACK,TRIM0#,2#
W(RADIO),BLACK,TRIM2#
W(RADIO),DARK BLUE,TRIM8#
LUXURY PACKAGE & W(RADIO),DARK BLUE,TRIM8#
64391CCAP
64392ALID, PACKAGE TRAY TRIM, LH
BLACK,TRIM2#
RED,TRIM3#
DARK BLUE,TRIM8#
BLACK,TRIM0#,2#
64711MAT, LUGGAGE COMPARTMENT FLOOR
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777117020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-17020
6777130070WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30070
6792117030RETAINER, FRONT DOOR SCUFF PLATE
main67921-17030
6792195501RETAINER, FRONT DOOR SCUFF PLATE
main67921-95501
9016740022
main90167-40022
9033301004C0
main90333-01004C0
9046710161
main90467-10161
9095901413
main90959-01413
9356055016
main93560-55016
36 parts on this diagram · 1 diagram in section
