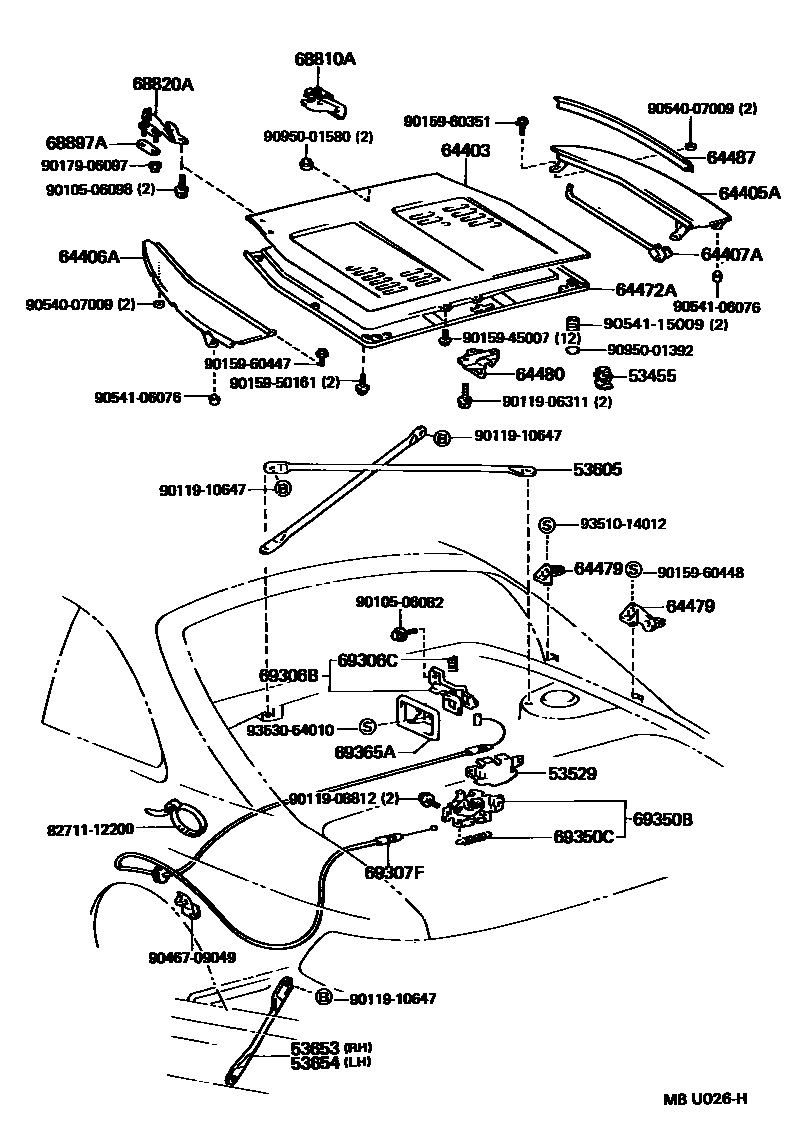

ENGINE HOOD & LOCK
53455CLAMP, HOOD SUPPORT ROD
53529PLATE, HOOD LOCK PROTECTOR, REAR
53605BRACE SUB-ASSY, REAR SUSPENSIOM, UPPER
53653BRACE, REAR SUSPENSION, LOWER RH
53654BRACE, REAR SUSPENSION, LOWER LH
64405APANEL SUB-ASSY, ENGINE HOOD SIDE, RH
64406APANEL SUB-ASSY, ENGINE HOOD SIDE, LH
64407ASUPPORT SUB-ASSY, ENGINE HOOD
64472APANEL, ENGINE HOOD, INNER
64479CLIP, ENGINE HOOD SIDE PANEL
FRONT
FR
RR
REAR
64480STRIKER ASSY, ENGINE HOOD LOCK
64487SEAL, ENGINE HOOD TO HOOD SIDE
68810AHINGE ASSY, ENGINE HOOD, RH
68820AHINGE ASSY, ENGINE HOOD, LH
68897APAD, ENGINE HOOD HINGE
69306BLEVER SUB-ASSY, ENGINE HOOD LOCK CONTROL
69306CSPRING, TORSION(FOR ENGINE HOOD LOCK CONTROL LEVER)
69307FCABLE ASSY, ENGINE HOOD LOCK CONTROL
69350BLOCK ASSY, ENGINE HOOD
W(ANTI-THEFT DEVICE)
69350CSPRING, TENSION(FOR ENGINE HOOD LOCK)
69365ABEZEL, ENGINE HOOD LOCK CONTROL
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9010506082
main90105-06082
9010506098
main90105-06098
9011906311
main90119-06311
9011908812
main90119-08812
9011910647
main90119-10647
9015945007
main90159-45007
9015950161
main90159-50161
9015960351
main90159-60351
9015960447
main90159-60447
9015960448
main90159-60448
9017906097
main90179-06097
9046709049
main90467-09049
9054007009
main90540-07009
9054106076
main90541-06076
9054115009
main90541-15009
9095001392
main90950-01392
9095001580
main90950-01580
9351014012
main93510-14012
9353054010
main93530-54010
42 parts on this diagram · 1 diagram in section
