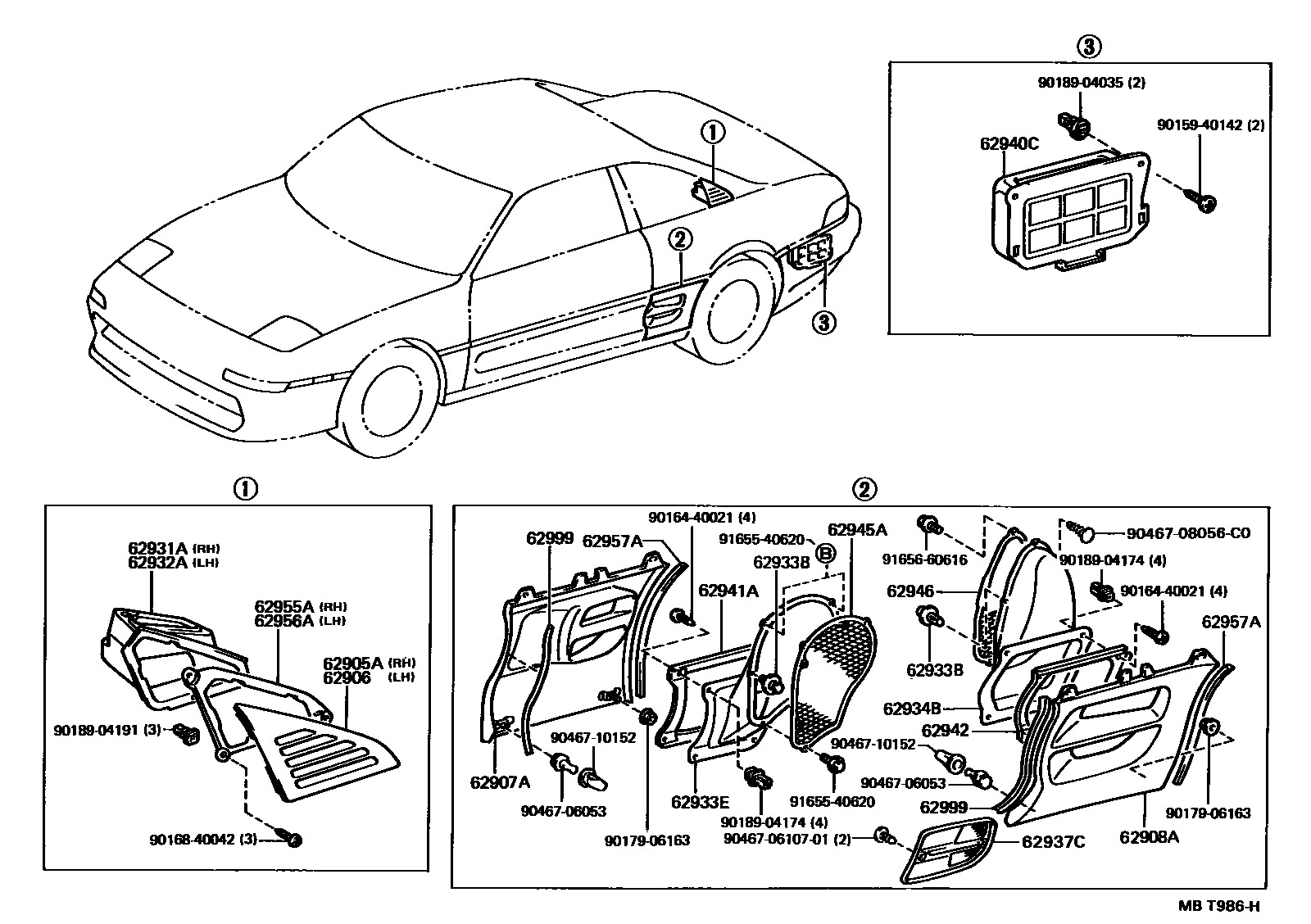

ROOF SIDE VENTILATOR

62905ALOUVER, QUATER VENTILATION, RH

main62905-17020iSW2#199001-199506

62906LOUVER, QUATER VENTILATION, LH

main62906-17020iSW2#199001-199506

62907AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, RH

main62907-17900iSW2#199001-199506

62908AGARNISH SUB-ASSY, QUARTER PANEL AIR INLET, LH

main62908-17900iSW2#199001-199506

62931ADUCT, QUARTER VENT, RH

main62931-17030iSW2#199001-199506

62932ADUCT, QUARTER VENT, LH

main62932-17030iSW2#199001-199506

62933BCLIP, QUARTER VENT DUCT

main90467-07041-11×3iSW2#199001-199201

BLACK,TRIM2#,3#,8#

main90467-07041-C0×3iSW21..CND199202-199311

BLACK,TRIM2#,8#

62933EDUCT, QUARTER VENT, INNER RH

main62933-17030iSW2#199001-199506

62934BDUCT, QUARTER VENT, INNER LH

main62934-17010iSW2#199001-199506

62937CSEAL, QUARTER PANEL AIR INLET, INNER

main62937-17020iSW2#..CND199010-199311

62940CDUCT ASSY, QUARTER VENT

main62940-12070×2iSW2#199001-199506

sub62940-12100

62941ARETAINER, QUARTER VENT DUCT

main62941-17020iSW2#199001-199506

62942RETAINER, ROOF SIDE VENT DUCT, LH

main62942-17020iSW2#199001-199506

62945ARETAINER, QUARTER VENT DUCT, NO.3

main62945-17010iSW21199001-199506

62946RETAINER, QUARTER VENT DUCT, NO.4

main62946-17010iSW2#199001-199506

62955ARETAINER, QUARTER VENT LOUVER

main62955-17010iSW2#199001-199506

62956ARETAINER, QUARTER VENTILATOR LOUVER, LH

main62956-17010iSW2#199001-199506

62957ASEAL, QUARTER VENT DUCT, NO.1

main62957-17020×2iSW2#199001-199506

62999PAD, AIR INLET GARNISH

main62999-17020×2iSW2#199001-199506

9015940142

main90159-40142

9016440021

main90164-40021

9016840042

main90168-40042

9017906163

main90179-06163

9018904035

main90189-04035

9018904174

main90189-04174

9018904191

main90189-04191

9046706053

main90467-06053

904670610701

main90467-0610701

9046708056C0

main90467-08056C0

9046710152

main90467-10152

9165540620

main91655-40620

9165660616

main91656-60616

32 parts on this diagram · 1 diagram in section
