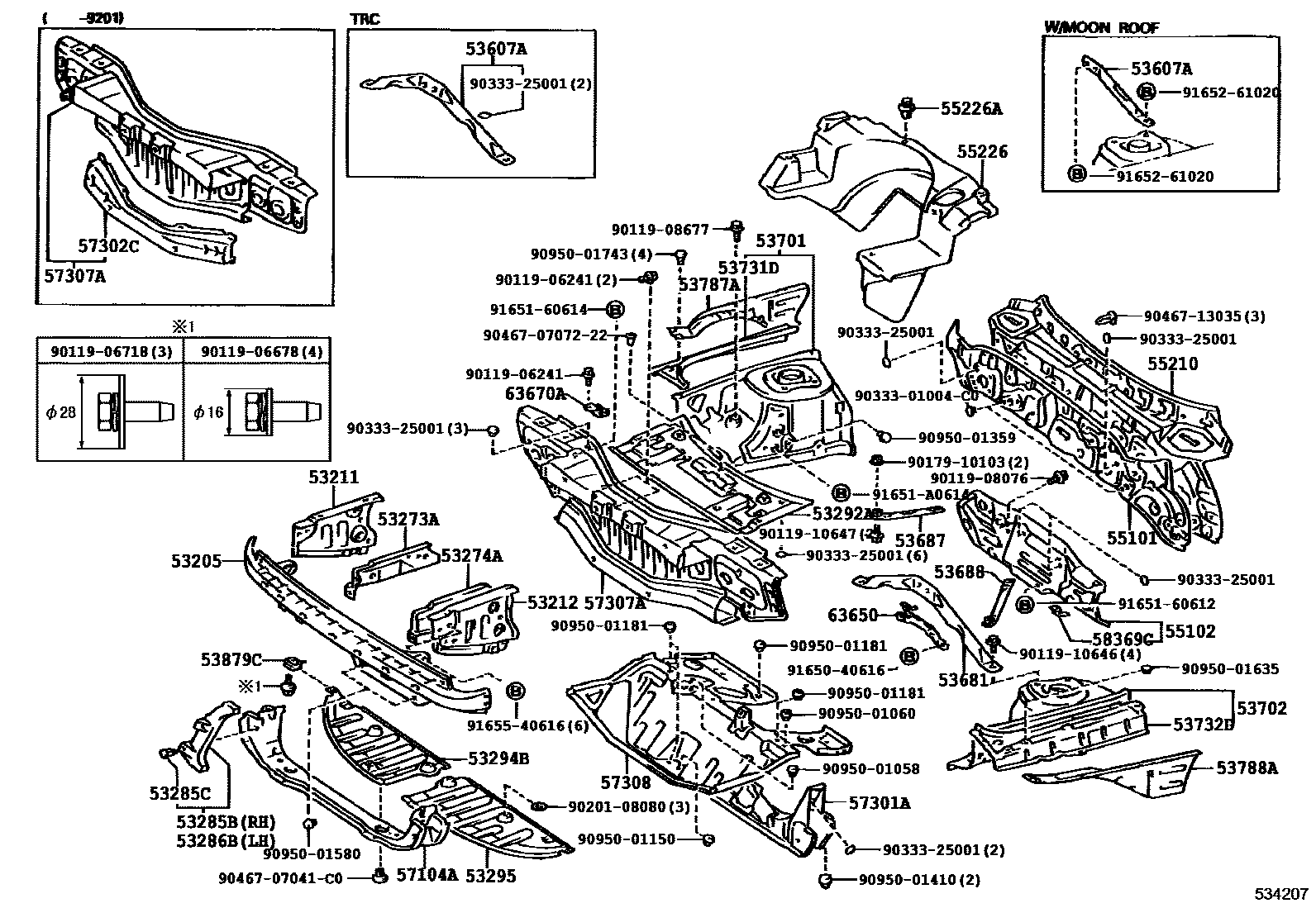

FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53285CCLIP(FOR RADIATOR SIDE AIR SEAL)
53286BSEAL, RADIATOR SIDE AIR, NO.2
53292ASEAL, RADIATOR SUPPORT, UPPER
53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1
53295DEFLECTOR, RADIATOR LOWER AIR
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53681BRACE, FRONT SUSPENSION, UPPER CENTER
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
53879CRETAINER, FRONT FENDER LINER
55101PANEL SUB-ASSY, DASH
55102PANEL SUB-ASSY, DASH, LOWER
55210INSULATOR ASSY, DASH PANEL
55226COVER, DASH PANEL FRONT TRIM
55226ACLIP
57104AMEMBER SUB-ASSY, FRONT CROSS
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
W(ELECTRICAL TYPE POWER STEERING)
W(ELECTRICAL TYPE POWER STEERING)
57302CMEMBER SUB-ASSY, FRONT LUGGAGE CROSS
57307APANEL SUB-ASSY, FRONT LUGGAGE END
57308PAN SUB-ASSY, FRONT LUGGAGE
W(ELECTRICAL TYPE POWER STEERING)
58369CBRACKET, FUEL TUBE, NO.3
63650HOLDER ASSY, REMOVABLE ROOF
63670ASTAY ASSY, REMOVABLE ROOF, RH
9011906241
9011906678
9011906718
9011908076
9011908677
9011910646
9011910647
9017910103
9020108080
9033301004C0
main90333-01004C0
9033325001
9046707041C0
main90467-07041C0
904670707222
main90467-0707222
9046713035
9095001058
9095001060
9095001150
9095001181
9095001359
9095001410
9095001580
9095001635
9095001743
9165040616
main91650-40616
9165160612
9165160614
91651A0614
9165261020
9165540616
64 parts on this diagram · 1 diagram in section
