REAR BUMPER & BUMPER STAY

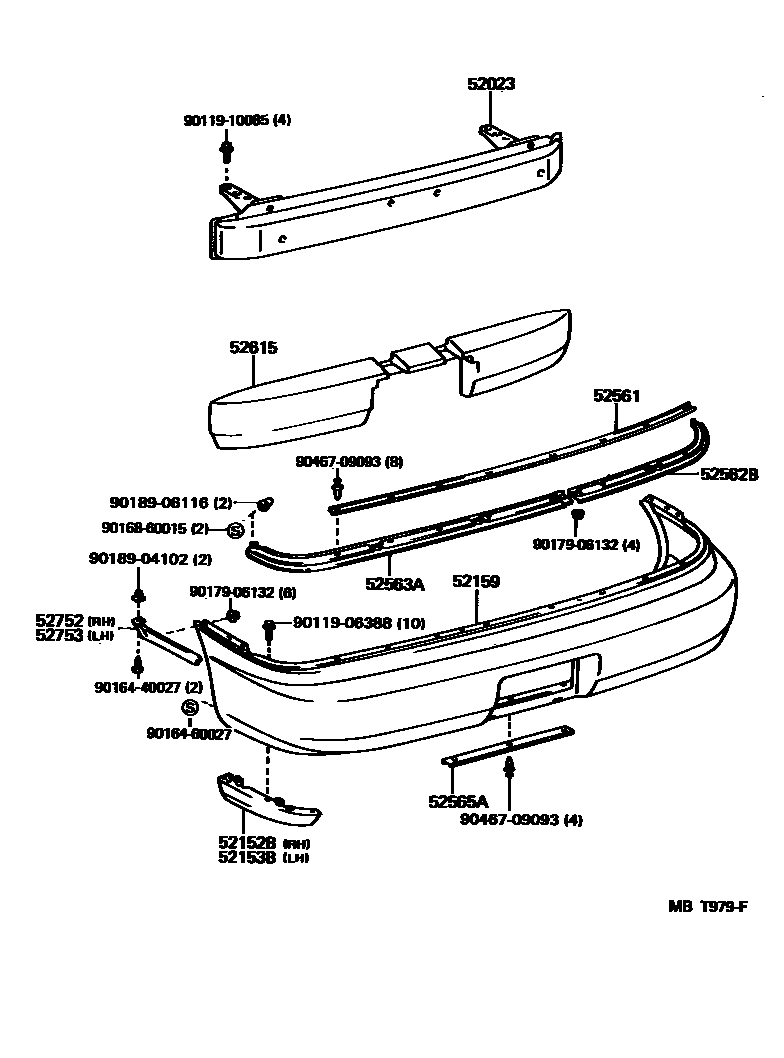

Parts diagram
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-17030i¥32,600199001-199506
52152BEXTENSION, REAR BUMPER, RH
main52152-17010i¥2,750199001-199311
main52152-17011-A0i199311-199506
SUPER WHITE 2,040
sub52152-17010¥2,750
main52152-17011-B0i199311-199506
BL.GRAY AMC,187
sub52152-17010¥2,750
main52152-17011-C0i199311-199506
BLACK,202
sub52152-17010¥2,750
main52152-17011-D0i199311-199506
SUPER RED 2,3E5
sub52152-17010¥2,750
main52152-17011-F0i199311-199506
SUPER BRIGHT YELLOW,576
sub52152-17010¥2,750
main52152-17011-G0i199311-199506
DK.GREEN MICA,6M1
sub52152-17010¥2,750
main52152-17011-J0i199311-199506
STRONG BLUE M,8B6
sub52152-17010¥2,750
52153BEXTENSION, REAR BUMPER, LH
main52153-17010i¥2,750199001-199311
main52153-17011-A0i199311-199506
SUPER WHITE 2,040
sub52153-17010¥2,750
main52153-17011-B0i199311-199506
BL.GRAY AMC,187
sub52153-17010¥2,750
main52153-17011-C0i199311-199506
BLACK,202
sub52153-17010¥2,750
main52153-17011-D0i199311-199506
SUPER RED 2,3E5
sub52153-17010¥2,750
main52153-17011-F0i199311-199506
SUPER BRIGHT YELLOW,576
sub52153-17010¥2,750
main52153-17011-G0i199311-199506
DK.GREEN MICA,6M1
sub52153-17010¥2,750
main52153-17011-J0i199311-199506
STRONG BLUE M,8B6
sub52153-17010¥2,750
52159COVER, REAR BUMPER
main52159-17903i¥59,500199001-199506
52561RETAINER, REAR BUMPER, UPPER CENTER
main52561-17020i¥1,590199001-199506
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-17010i¥2,600199001-199506
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-17010i¥2,710199001-199506
52565ARETAINER, REAR BUMPER, LOWER
main52565-17020i¥1,590199001-199506
52615ABSORBER, REAR BUMPER ENERGY
main52615-17020i¥10,700199001-199506
52752MOULDING, REAR BUMPER SIDE, RH
main52752-17010i¥3,640199001-199506
main52752-17020-02i199001-199201
DARK RED M,3J6
sub52752-17020¥0
main52752-17020-03i199201-199311
LIGHT SILVER M.,040
sub52752-17020¥0
main52752-17020-03i199001-199201
LIGHT SILVER M.,043
sub52752-17020¥0
main52752-17020-04i199001-199201
BLUE. M,8H3
sub52752-17020¥0
main52752-17020-07i199001-199201
DARK GREEN, M,742
sub52752-17020¥0
main52752-17020-13i199001-199201
DARK GRAY M,187 ,202 ,567
sub52752-17020¥0
main52752-17020-13i199001-199201
DARK GRAY M,202 ,567
sub52752-17020¥0
main52752-17020-13i199201-199311
DARK GRAY M,187 ,202
sub52752-17020¥0
main52752-17020-A0i199311-199506
SUPER WHITE 2,040
sub52752-17020¥0
main52752-17020-B2i199311-199506
BL.GRAY AMC,187
sub52752-17020¥0
main52752-17020-C0i199311-199506
BLACK,202
sub52752-17020¥0
main52752-17020-D0i199201-199311
MAROON M.,3E5
sub52752-17020¥0
main52752-17020-D1i199311-199506
SUPER RED 2,3E5
sub52752-17020¥0
main52752-17020-E0i199201-199208
GOLD MICA M.,567
sub52752-17020¥0
main52752-17020-F0i199311-199506
SUPER BRIGHT YELLOW,576
sub52752-17020¥0
main52752-17020-G0i199311-199506
DK.GREEN MICA,6M1
sub52752-17020¥0
main52752-17020-H0i199201-199311
TURQUOISE MICA M.,746
sub52752-17020¥0
main52752-17020-J0i199201-199311
BLUE M,8J2
sub52752-17020¥0
main52752-17020-J1i199311-199506
STRONG BLUE M,8B6
sub52752-17020¥0
52753MOULDING, REAR BUMPER SIDE, LH
main52753-17010i¥3,640199001-199506
main52753-17020-02i199001-199201
SUPER RED 3,3J6
sub52753-17020¥6,200
main52753-17020-03i199001-199201
LIGHT SILVER M.,043
sub52753-17020¥6,200
main52753-17020-03i199201-199311
LIGHT SILVER M.,040
sub52753-17020¥6,200
main52753-17020-04i199001-199201
BLUE,M,8H3
sub52753-17020¥6,200
main52753-17020-07i199001-199201
DARK TURQUOISE MICA,742
sub52753-17020¥6,200
main52753-17020-13i199001-199201
DARK GRAY M,187 ,202 ,567
sub52753-17020¥6,200
main52753-17020-13i199001-199201
DARK GRAY M,202 ,567
sub52753-17020¥6,200
main52753-17020-13i199201-199311
DARK GRAY M,187 ,202
sub52753-17020¥6,200
main52753-17020-A0i199311-199506
SUPER WHITE 2,040
sub52753-17020¥6,200
main52753-17020-B2i199311-199506
BL.GRAY AMC,187
sub52753-17020¥6,200
main52753-17020-C0i199311-199506
BLACK,202
sub52753-17020¥6,200
main52753-17020-D0i199201-199311
MAROON M.,3E5
sub52753-17020¥6,200
main52753-17020-D1i199311-199506
SUPER RED 2,3E5
sub52753-17020¥6,200
main52753-17020-E0i199201-199208
GOLD MICA M.,567
sub52753-17020¥6,200
main52753-17020-F0i199311-199506
SUPER BRIGHT YELLOW,576
sub52753-17020¥6,200
main52753-17020-G0i199311-199506
DK.GREEN MICA,6M1
sub52753-17020¥6,200
main52753-17020-H0i199201-199311
TURQUOISE MICA M.,746
sub52753-17020¥6,200
main52753-17020-J0i199201-199311
BLUE M.,8J2
sub52753-17020¥6,200
main52753-17020-J1i199311-199506
STRONG BLUE M,8B6
sub52753-17020¥6,200
9011906388
main90119-06388¥120
9011910085
main90119-10085¥240
9016440027
main90164-40027
9016460027
main90164-60027¥120
9016860015
main90168-60015¥120
9017906132
main90179-06132¥120
9018904102
main90189-04102¥110
9018906116
main90189-06116¥130
9046709093
main90467-09093¥190

20 parts on this diagram · 1 diagram in section
