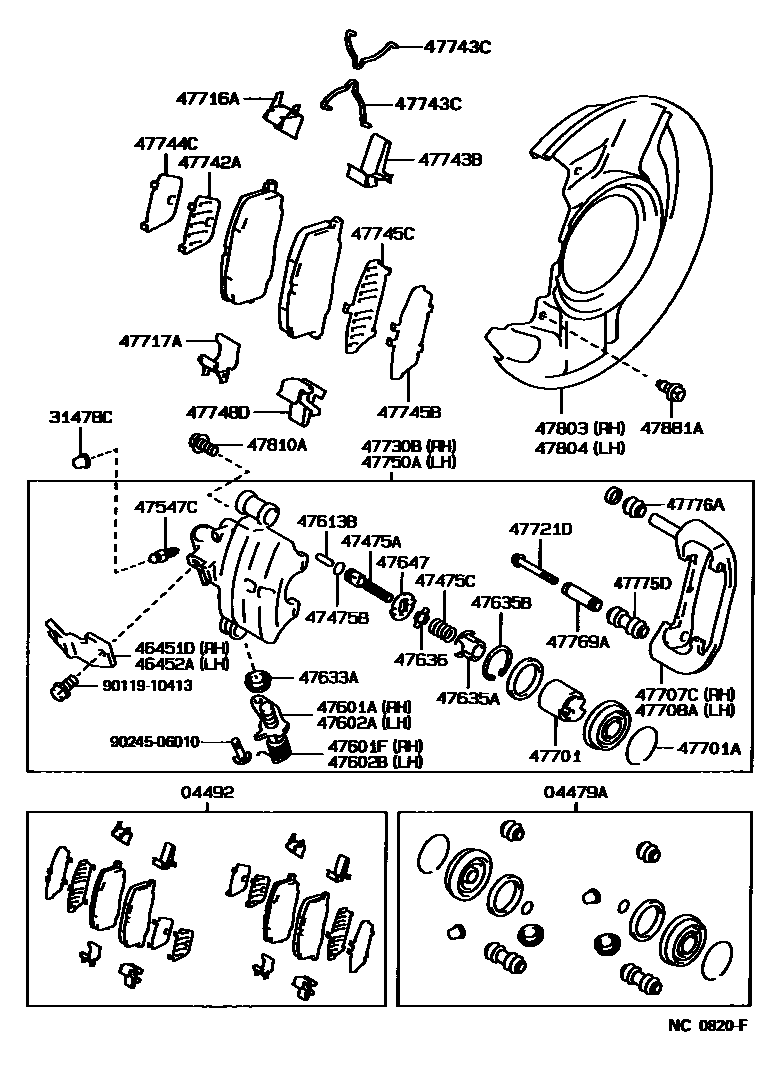

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-17030iSW2#¥3,990199001-199506

main04479-17040iSW20¥3,990199201-199506

04492PAD KIT, DISC BRAKE, REAR

main04492-17040iSW21¥11,000199001-199505

sub04466-17030¥9,200

main04492-17050iSW20¥11,000199201-199304

sub04492-17051¥11,000

main04492-17051iSW20¥11,000199304-199505

sub04466-17040¥9,400

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSW2#¥160199001-199506

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-17040iSW2#¥1,630199001-199208

sub46451-17050¥1,660

main46451-17050iSW2#¥1,660199201-199506

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-17040iSW2#¥1,630199001-199208

sub46452-17050¥1,660

main46452-17050iSW20¥1,660199201-199506

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iSW2#¥1,300199001-199506

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iSW2#¥260199001-199506

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iSW2#¥240199001-199506

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iSW2#¥200199001-199112

main47547-22020iSW2#¥180199112-199506

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-17011iSW2#¥1,300199001-199506

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32020iSW2#¥380199001-199506

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-17011iSW2#¥1,300199001-199506

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32021iSW2#¥380199001-199506

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iSW2#¥610199001-199506

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iSW2#¥880199001-199506

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12010iSW2#¥570199001-199506

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-37006iSW2#¥170199001-199506

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iSW2#¥390199001-199506

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12010iSW2#¥570199001-199506

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-17020iSW2#¥7,500199001-199506

main47701-17030iSW20¥8,100199201-199506

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-49001iSW2#¥180199001-199506

47707CPLATE SUB-ASSY, DISC BRAKE TORQUE, REAR RH

main47707-17030iSW2#¥5,800199001-199506

main47707-17040iSW20¥6,100199201-199506

47708APLATE SUB-ASSY, DISC BRAKE TORQUE, REAR LH

main47708-17030iSW2#¥5,800199001-199506

main47708-17040iSW20¥6,100199201-199506

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-17030iSW2#¥130199001-199506

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-17020iSW2#¥300199001-199506

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08431iSW2#¥220199001-199506

*8-1.25PX62-20

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-17100iSW2#¥66,000199001-199506

main47730-17130iSW20¥41,800199201-199506

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-17030iSW2#¥280199001-199506

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-14040iSW2#¥320199001-199506

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-17030iSW20¥300199304-199506

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-17040iSW2#¥280199001-199506

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-17050iSW2#¥280199001-199506

47745CSHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-17040iSW2#¥280199001-199506

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14050iSW2#¥360199001-199506

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-17100iSW2#¥66,000199001-199506

main47750-17130iSW20¥41,800199201-199506

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iSW2#¥680199001-199506

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-17010iSW21¥710199001-199506

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14010iSW21¥670199001-199506

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-17040iSW2#¥2,220199001-199506

main47881-17050iSW20¥2,550199201-199506

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47881-17040iSW2#¥2,220199001-199506

main47882-17050iSW20¥2,550199201-199506

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main91619-B1225iSW2#¥160199001-199506

47881ABOLT(FOR DUST COVER)

main90119-06227iSW2#¥90199001-199506

9011910413

main90119-10413¥200

9024506010

main90245-06010¥240
