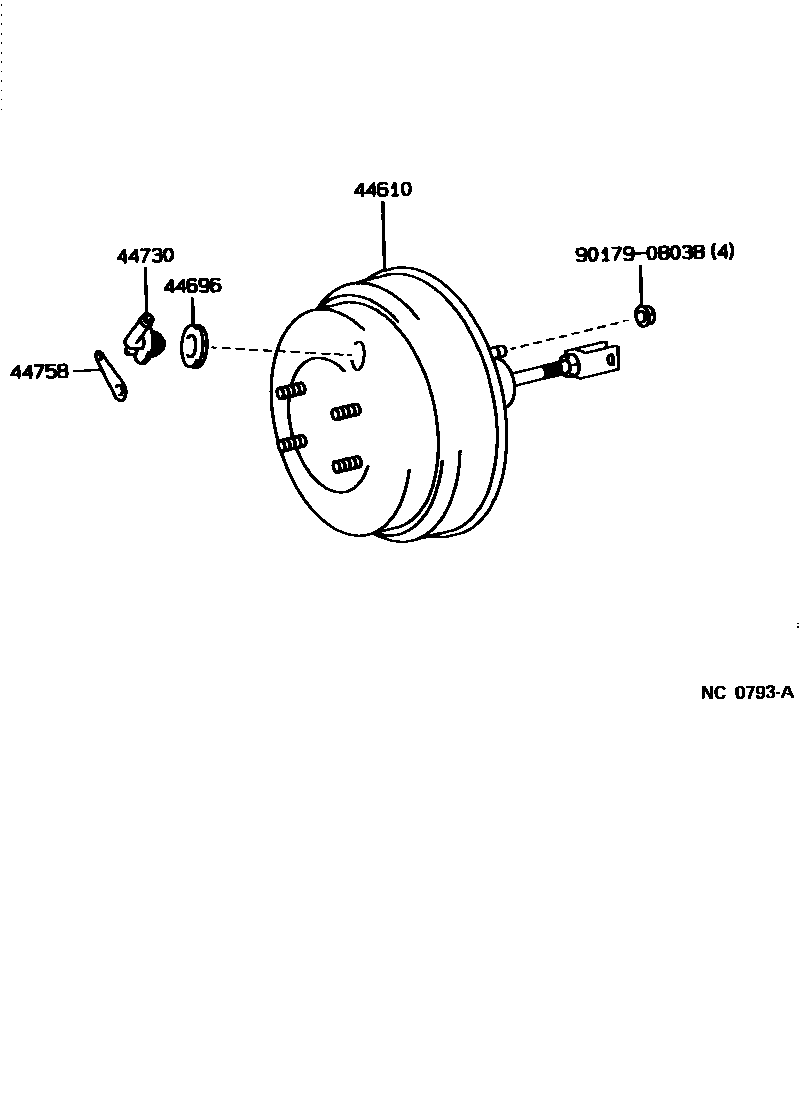

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-17210iSW21¥46,700199001-199201

main44610-17220iSW20¥63,500199001-199201

main44610-17240iSW21¥45,100199201-199506

main44610-17250iSW20¥62,400199201-199506

W(*66)

main44610-17290iSW20¥62,400199201-199506

44696GROMMET, CHECK VALVE

main90480-24439iSW2#¥390199001-199201

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iSW2#¥1,380199001-199201

main44730-22120iSW2#¥1,360199201-199506

44758BRACKET, VACUUM CHECK VALVE

main44758-17060iSW21¥300199001-199201

main44758-17070iSW20¥300199001-199201

9017908038

main90179-08038¥130

5 parts on this diagram · 3 diagrams in section
