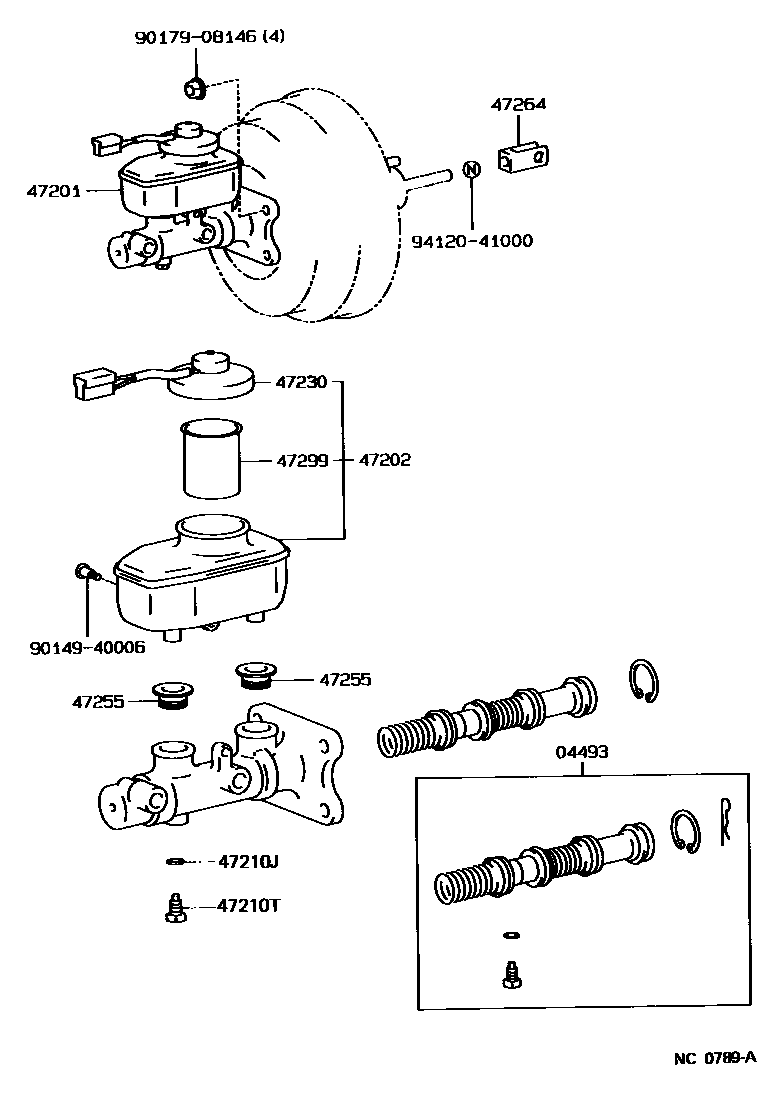

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-17030iSW2#199001-199111

main04493-17040iSW21199001-199506

W(*66)

main04493-17050iSW2#199111-199506

main04493-17060iSW20199201-199506

main04493-17070iSW20199201-199506

W(*66)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-17060iSW21199001-199201

main47201-17070iSW21..CP199001-199112

W(SUN ROOF)

main47201-17080iSW21199001-199201

W(*66)

main47201-17090iSW20199001-199506

W(*66)

main47201-17090iSW21..CP199001-199201

W(*66) & W(SUN ROOF)

main47201-17090iSW20199112-199201

main47201-17120iSW21199201-199506

main47201-17140iSW20199201-199311

main47201-17160iSW20199201-199311

W(*66)

main47201-17260iSW20199311-199506

W(*66)

main47201-17270iSW20199311-199506

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-17040iSW21..CP199001-199201

W(SUN ROOF)

main47202-17040iSW21199201-199506

main47220-16010iSW21199001-199201

main47220-17030iSW20199201-199311

main47220-33011iSW20199311-199506

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iSW2#199001-199506

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iSW2#199001-199506

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iSW20199311-199506

main47230-16010iSW21199001-199201

main47230-20100iSW20199201-199311

sub47230-47090

main84460-12070iSW21199201-199506

main84460-12070iSW20199001-199201

W(SUN ROOF)

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iSW2#199001-199506

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iSW2#199201-199506

main47264-20040iSW2#199001-199201

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-16010iSW21199001-199201

main47299-24010iSW20199201-199506

main47299-32010iSW21199201-199506

main47299-32010iSW20199001-199201

W(SUN ROOF)

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

12 parts on this diagram · 2 diagrams in section
