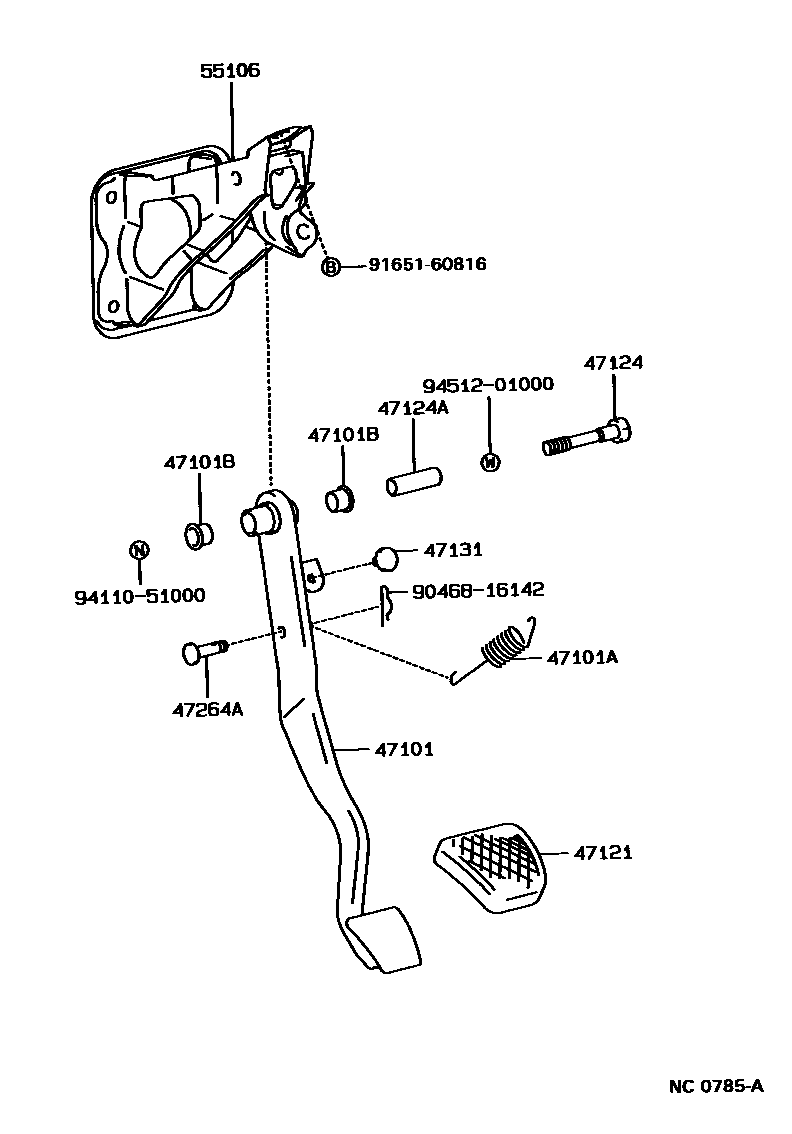

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-17070iSW2#..5F199001-199506

main47101-17080iSW21..4FC199001-199506

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iSW2#199001-199506

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSW2#199001-199506

47121PAD, BRAKE PEDAL

main31321-12030iSW2#..5F199001-199506

main47121-12020iSW21..4FC199001-199506

47124SHAFT, BRAKE PEDAL

main90101-10015iSW2#199001-199506

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSW2#199001-199506

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iSW2#199001-199201

sub90541-06036

main90541-06036iSW2#199201-199506

47264APIN(FOR PUSH ROD)

main90249-08051iSW2#199001-199506

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-17040iSW2#199001-199506

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
