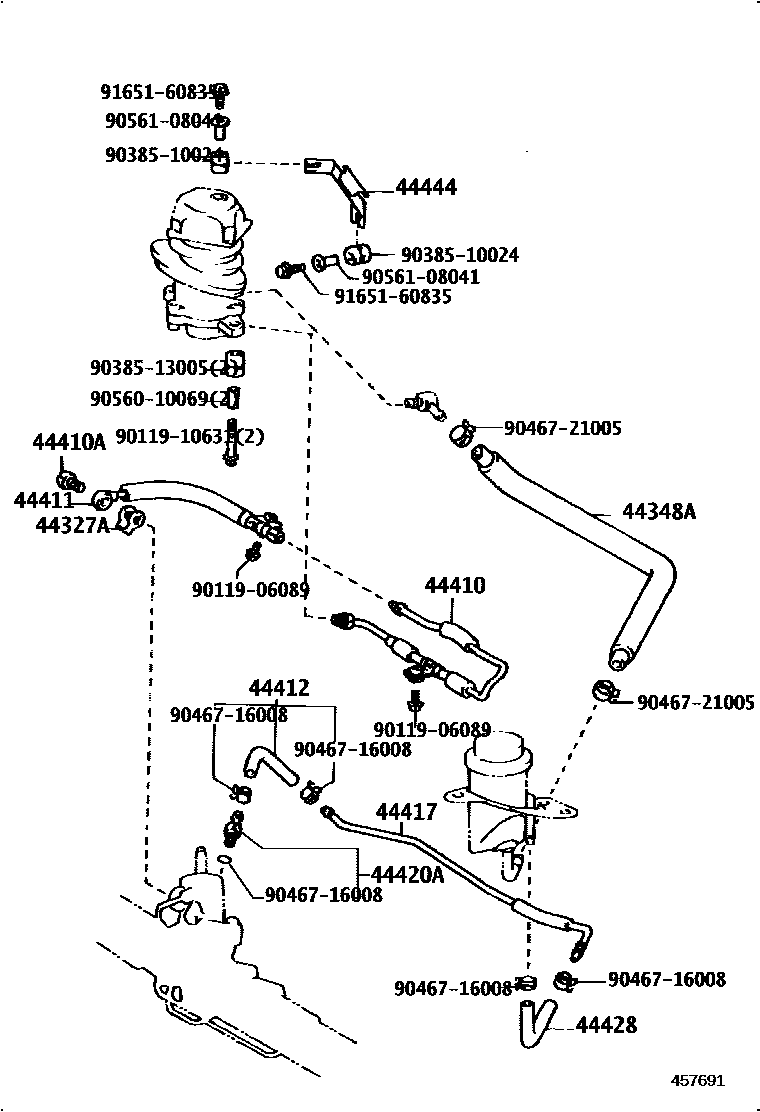

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSW2#..USA¥260199001-199506

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-17020iSW2#..USA¥4,460199001-199506

44410TUBE ASSY, PRESSURE FEED

main44410-17020iSW2#..USA¥13,000199001-199506

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iSW2#..USA¥610199001-199506

44411HOSE, PRESSURE FEED

main44411-17020iSW2#..USA¥14,600199001-199506

44412HOSE, RETURN

main44412-17010iSW2#..USA¥790199001-199506

44417TUBE, RETURN, NO.2

main44417-17020iSW2#..USA¥1,730199001-199506

44420ATUBE ASSY, RETURN

main44420-17010iSW2#..USA¥1,070199001-199506

44428HOSE, RETURN, NO.2

main44428-17010iSW2#..USA¥790199001-199506

44444STAY, PUMP, REAR

main44444-17020iSW2#..USA¥610199001-199506

9011906089

main90119-06089¥160

9011910631

main90119-10631¥260

9038510024

main90385-10024¥330

9038513005

main90385-13005¥440

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9056010069

main90560-10069¥240

9056108041

main90561-08041¥350

9165160835

main91651-60835¥90

19 parts on this diagram · 1 diagram in section
