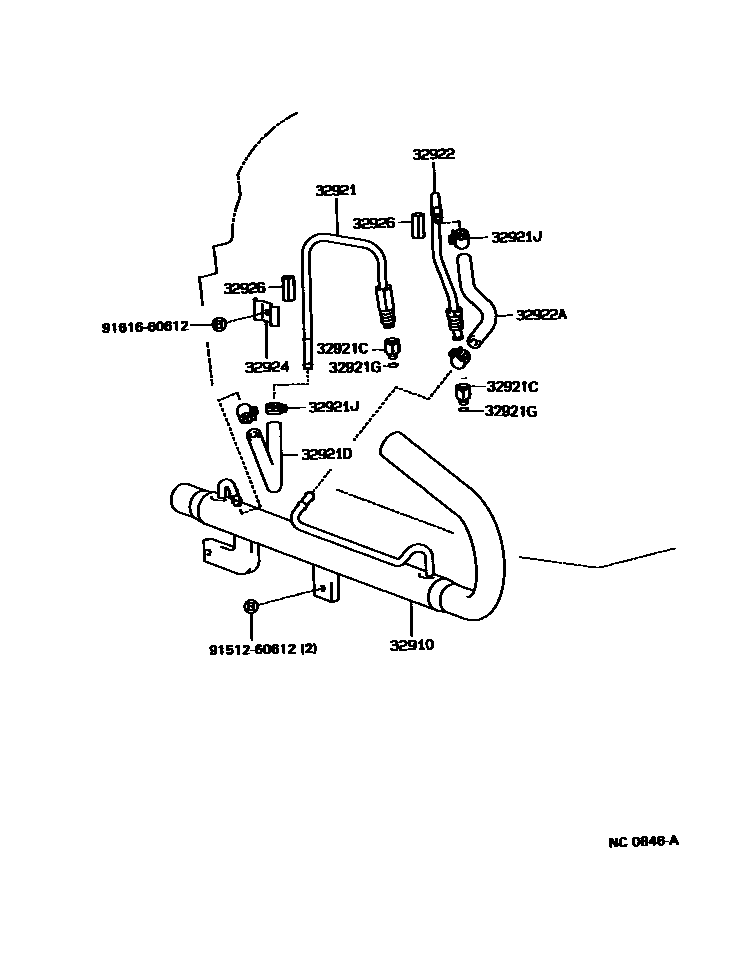

OIL COOLER & TUBE (ATM)

32910COOLER ASSY, OIL

main32910-17030iSW21..4FC¥39,400199001-199506

32921TUBE, OIL COOLER INLET, NO.1

main32921-17030iSW21..4FC¥980199001-199506

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iSW21..4FC¥500199001-199506

32921DHOSE(FOR OIL COOLER INLET)

main32941-17010iSW21..4FC¥1,550199001-199305

sub90445-15047¥760

main90445-15047iSW21..4FC¥760199305-199506

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSW21..4FC¥170199001-199506

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iSW21..4FC¥100199001-199506

sub96135-51300¥120

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-17030iSW21..4FC¥660199001-199506

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15050iSW21..4FC¥540199001-199506

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iSW21..4FC¥220199001-199506

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iSW21..4FC¥200199001-199506

L=25,ID=8

9151260612

main91512-60612¥110

9161660612

main91616-60612¥110

12 parts on this diagram · 1 diagram in section
