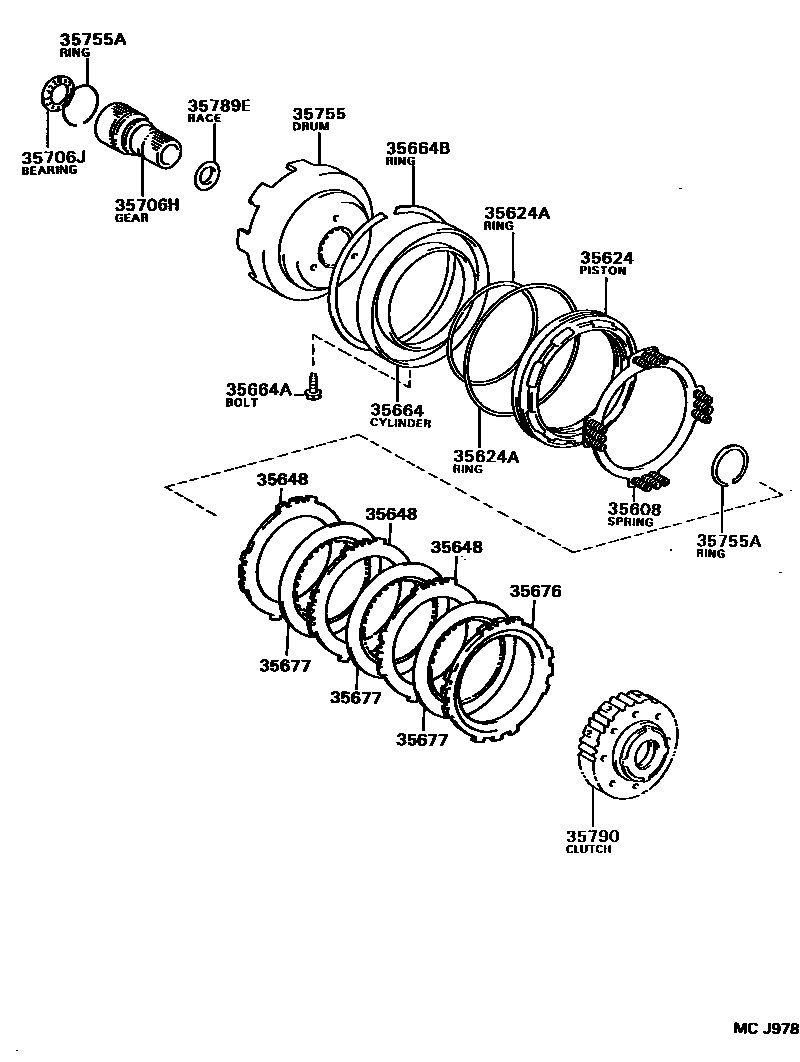

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iSW21..4FC199001-199506

35624PISTON, 2ND BRAKE

main35624-32010iSW21..4FC199001-199506

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iSW21..4FC199001-199506

INNER

main90301-99023iSW21..4FC199001-199506

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iSW21..4FC199001-199506

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iSW21..4FC199001-199506

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iSW21..4FC199001-199506

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iSW21..4FC199001-199506

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iSW21..4FC199001-199506

T=3.5

sub35676-12030

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-20050iSW21..4FC199201-199506

main35677-32050iSW21..4FC199001-199201

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iSW21..4FC199210-199506

main35706-32030iSW21..4FC199001-199210

sub35706-12010

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iSW21..4FC199001-199506

35755DRUM, SUN GEAR INPUT

main35755-32020iSW21..4FC199001-199506

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iSW21..4FC199001-199506

T=1.2,ID=44.0,T=1.2,ID=44.0

main90520-47003iSW21..4FC199001-199506

T=2.3,ID=47.1,WD=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iSW21..4FC199001-199506

35790CLUTCH ASSY, 1 WAY

main35790-32050iSW21..4FC199001-199506

15 parts on this diagram · 1 diagram in section
