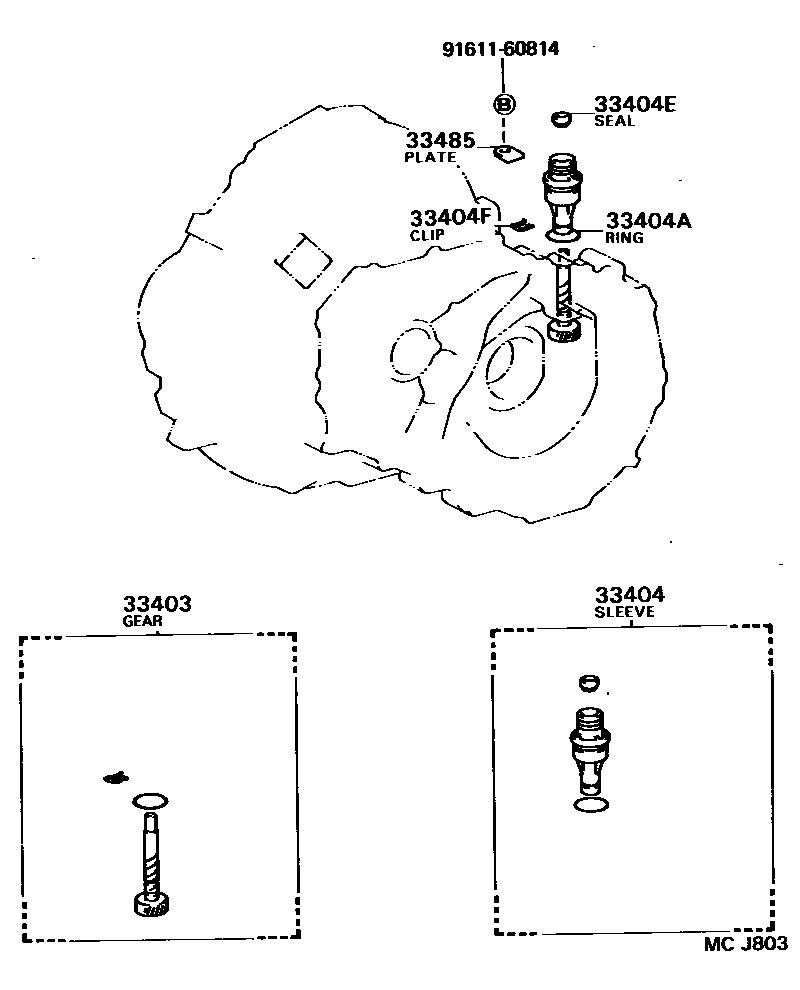

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1S54 0002 1S54 0003 1E153 0004 1E153

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19405iSW20199001-199102

N=30,MARK 30:35

sub33403-19406

main33403-19406iSW20199102-199201

N=30,MARK 30:35

main33403-19475iSW20199201-199204

N=30,MARK 30:35

sub33403-19476

main33403-19476iSW20199204-199506

N=30,MARK 30:35

main33403-19495iSW21..5F199201-199506

N=21,MARK 21:25

main33403-39085iSW21..5F199001-199201

N=21,MARK 21:25

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iSW21..5F199001-199201

main33404-17010iSW20199001-199201

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iSW21..5F199001-199201

main96721-24030iSW20199001-199201

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iSW21..5F199001-199201

main90310-09003iSW20199001-199201

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iSW2#..5F199001-199506

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iSW21..5F199001-199201

9161160814

main91611-60814

7 parts on this diagram · 4 diagrams in section
