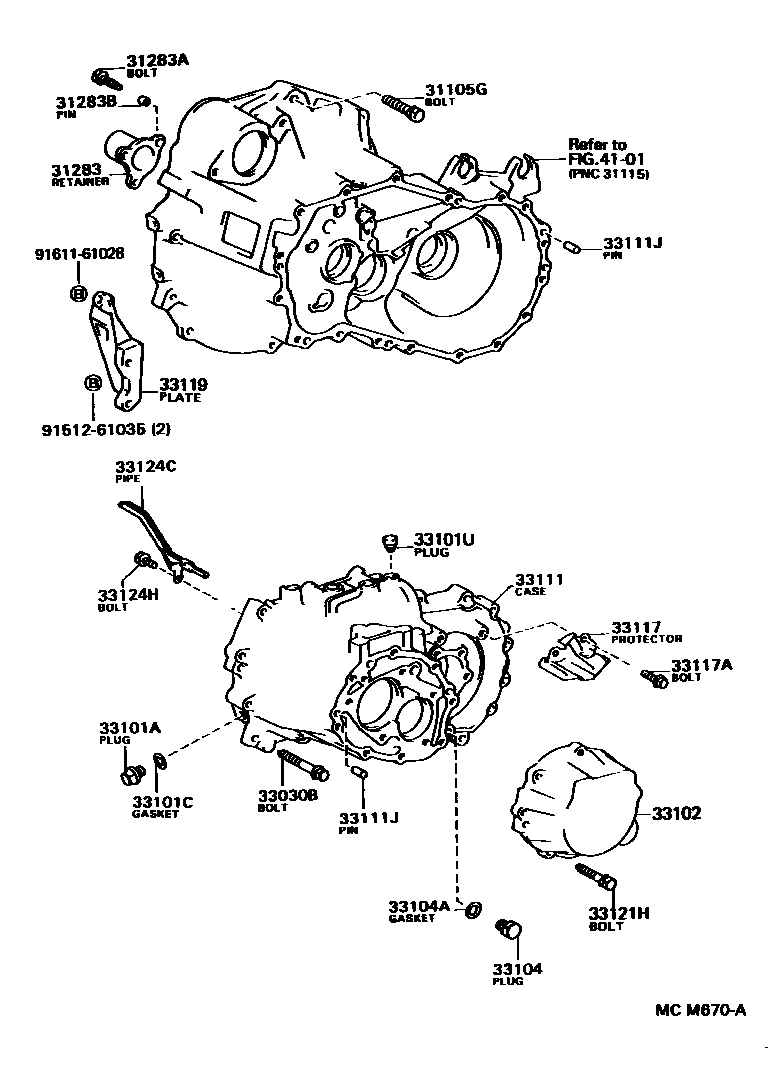

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1S54 0002 1E153

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iSW2#..5F¥180199001-199506

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iSW2#..5F¥260199001-199506

*10-1.25PX43-26

main90119-12168iSW2#..5F¥170199001-199506

*12-1.25PX55-30

main91651-41022iSW20¥160199001-199503

*10-1.25PX22-22

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iSW21..5F¥3,670199001-199506

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iSW21..5F¥210199001-199506

sub91511-B0620¥100

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iSW21..5F¥200199001-199506

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iSW21..5F¥300199001-199506

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08126iSW20¥190199001-199506

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iSW21..5F¥580199001-199003

main90341-18006iSW21..5F¥180199306-199506

main90341-18033iSW2#..5F¥190199001-199506

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iSW2#..5F¥110199001-199506

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iSW21..5F¥610199001-199106

main90930-03111iSW20¥1,630199001-199506

sub90930-03148¥1,650

main90930-03133iSW21..5F¥370199106-199506

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-20040iSW20¥15,400199001-199106

sub33102-33010¥15,100

main33102-32011iSW21..5F¥14,600199001-199004

sub33102-32012¥16,300

main33102-32012iSW21..5F¥16,300199004-199205

main33102-33010iSW20¥15,100199106-199506

sub33102-33011¥15,200

main33102-33020iSW21..5F¥16,300199205-199506

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iSW2#..5F¥180199001-199506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iSW2#..5F¥110199001-199506

33111CASE, MANUAL TRANSMISSION

main33101-17030iSW20¥40,900199001-199106

sub33101-17031¥40,800

main33101-17031iSW20¥40,800199106-199201

sub33101-17040¥43,900

sub90364-15003¥960

main33101-17040iSW20¥43,900199201-199506

sub33101-17041¥43,900

main33111-17030iSW21..5F¥38,300199001-199102

sub33111-17050¥37,900

main33111-17050iSW21..5F¥37,900199102-199205

sub33111-17070¥37,900

sub33124-32020¥1,180

sub33214-33020¥3,910

sub90384-14005¥260

sub90384-18017¥260

main33111-17070iSW21..5F¥37,900199205-199411

sub33111-17090¥37,800

main33111-17071iSW21..5F¥38,100199411-199506

sub33111-17080¥38,100

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iSW2#..5F¥120199001-199506

L=23,OD=8

main90250-12005iSW20¥240199001-199506

L=24,OD=12

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iSW20¥1,950199001-199506

main33117-32011iSW21..5F¥2,010199001-199506

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iSW2#..5F¥180199001-199506

sub91641-H0820¥90

33119PLATE, STIFFENER, LH(MTM)

main33119-17021iSW20¥4,550199001-199506

main33119-32020iSW21..5F¥3,090199001-199506

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iSW20¥190199001-199011

sub90105-08273¥170

main90105-08273iSW20¥170199011-199506

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20020iSW20¥1,200199001-199506

main33124-32011iSW21..5F¥790199001-199005

main33124-32012iSW21..5F¥730199005-199205

main33124-33010iSW21..5F¥720199205-199506

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iSW20¥140199001-199506

sub90119-08830¥100

main91651-60618iSW21..5F¥90199001-199506

4101

9151261035

main91512-61035¥110

9161161028

main91611-61028¥140
