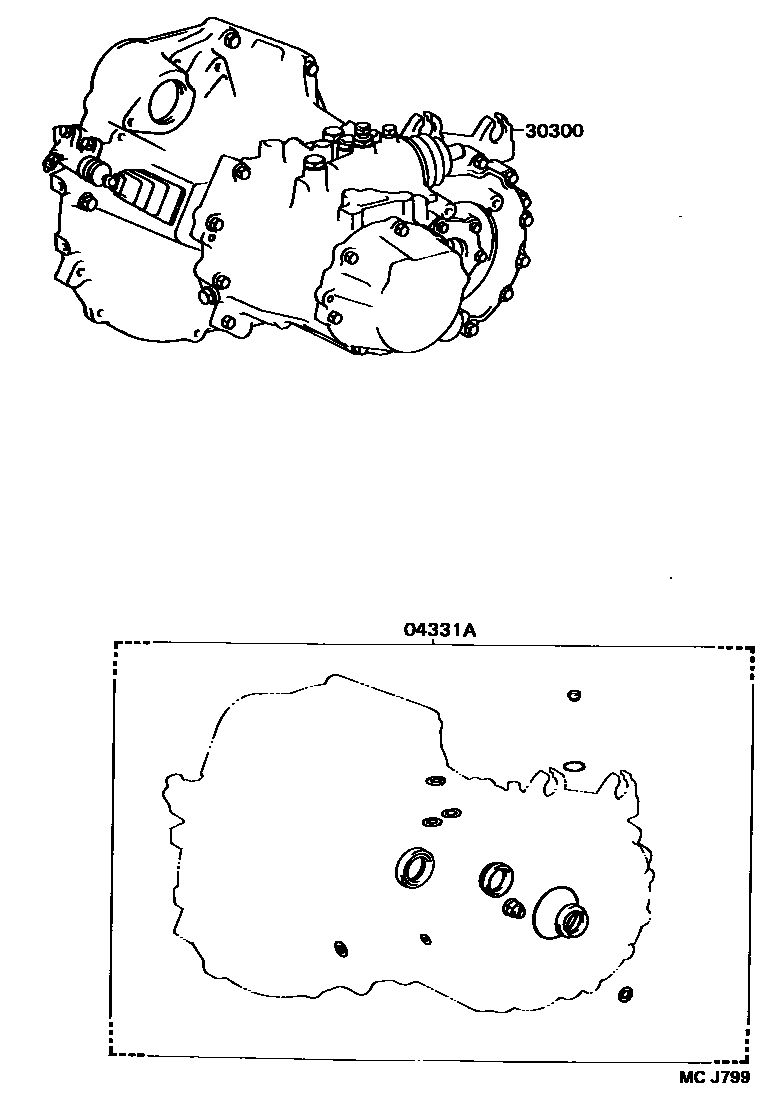

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1S54 0002 1E153

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-17011iSW20199001-199506

main04331-17020iSW21..5F199001-199506

30300TRANSAXLE ASSY, MANUAL

main30300-17060iSW21..5F199001-199005

sub30300-17090

main30300-17080iSW20199001-199201

main30300-17090iSW21..5F199005-199102

sub30300-17091

sub33527-17071

sub33821-17061

main30300-17091iSW21..5F199102-199201

sub30300-17092

sub11356-74030

sub90119-06670

main30300-17092iSW21..5F199201-199208

sub30300-17130

main30300-17110iSW20199201-199506

main30300-17120iSW20199201-199506

W(LSD)

sub30300-17121

main30300-17130iSW21..5F199208-199506

sub30300-17131

2 parts on this diagram · 2 diagrams in section
