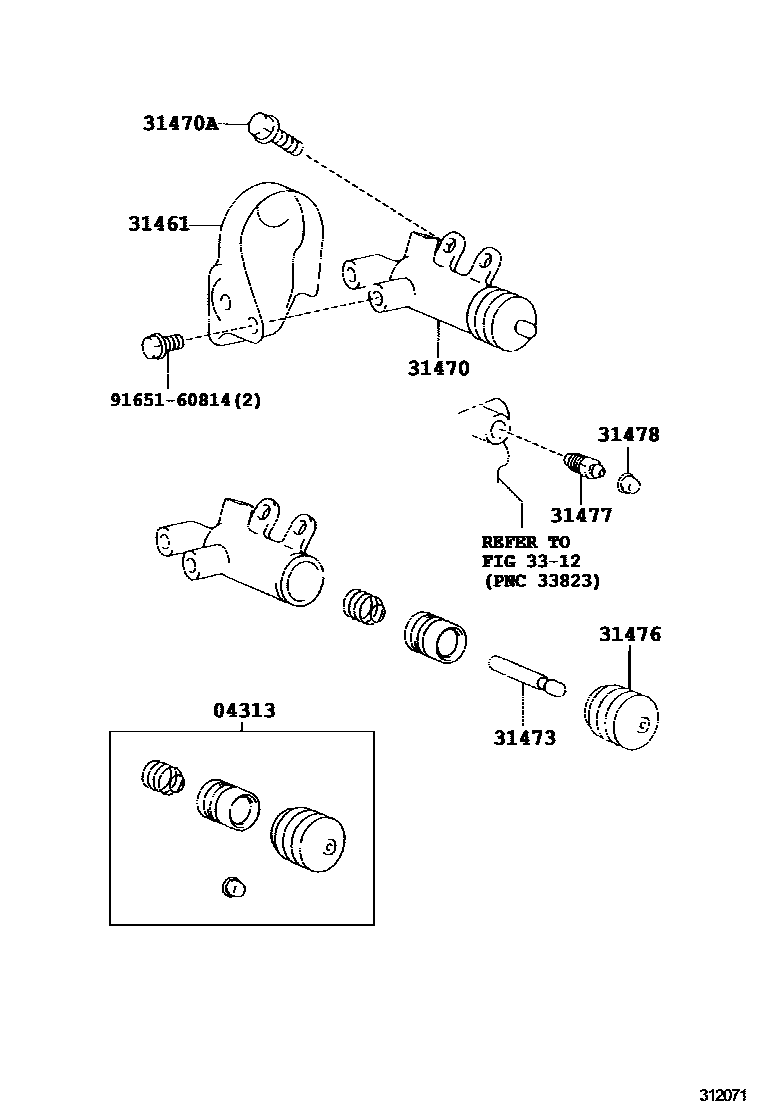

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iSW2#..5F199201-199506

main04313-17020iSW2#..5F199001-199201

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-17010iSW2#..5F199001-199506

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-17030iSW2#..5F199201-199506

main31470-17040iSW2#..5F199001-199201

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iSW2#..5F199001-199506

*8-1.25PX25-25

sub91611-B0825

main91611-60835iSW2#..5F199001-199506

*8-1.25PX35-30

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iSW2#..5F199001-199506

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iSW2#..5F199001-199506

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iSW2#..5F199001-199506

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iSW2#..5F199001-199506

3312

9165160814

main91651-60814

10 parts on this diagram · 1 diagram in section
