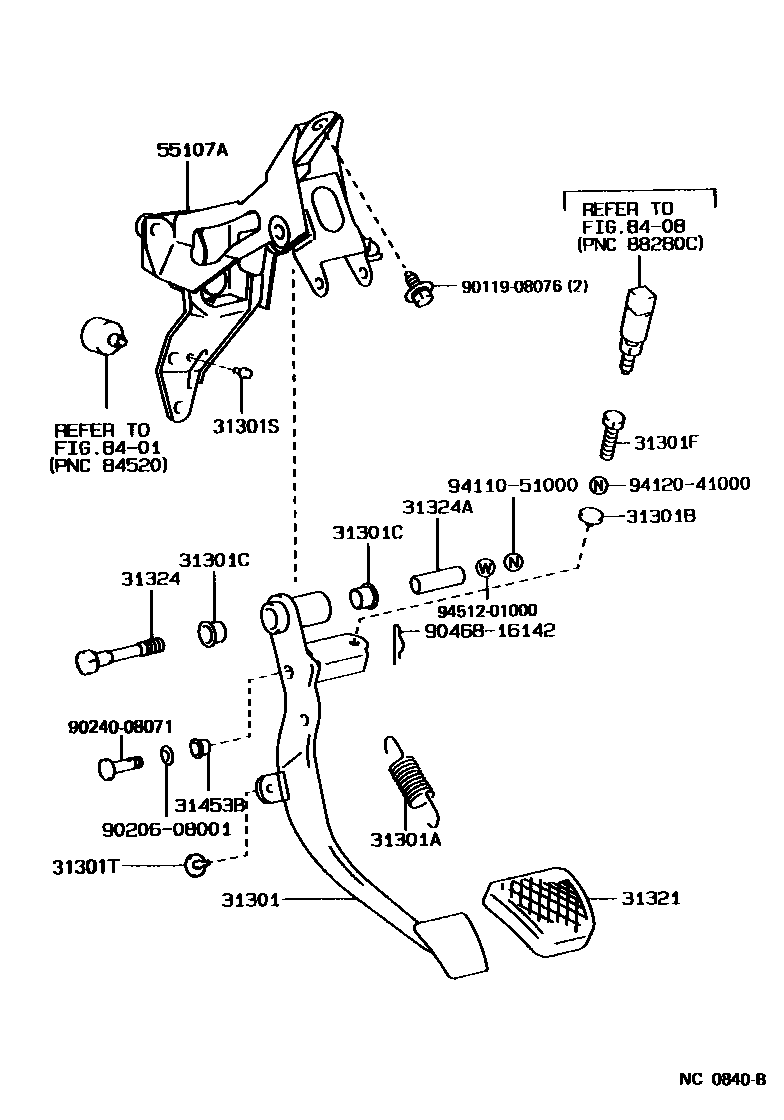

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-17060iSW21..5F199001-199201

sub31310-17050

main31301-17080iSW21..5F199201-199506

sub31310-17070

main31310-17050iSW20199001-199201

main31310-17070iSW20199201-199506

31301ASPRING(FOR CLUTCH PEDAL)

main90506-29011iSW20199001-199201

main90507-14002iSW21..5F199001-199506

main90905-06001iSW20199201-199506

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iSW2#..5F199001-199311

sub90541-06036

main90541-06036iSW2#..5F199311-199506

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iSW2#..5F199001-199506

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iSW2#..5F199001-199506

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06032iSW2#..5F199001-199201

sub90541-06036

main90541-06047iSW2#..5F199201-199506

31301TCUSHION, NO.3(FOR CLUTCH PEDAL)

main90541-06032iSW2#..5F199001-199311

sub90541-06036

main90541-06036iSW2#..5F199311-199506

31321PAD, CLUTCH PEDAL

main31321-12030iSW2#..5F199001-199506

31324SHAFT, CLUTCH PEDAL

main90101-10015iSW2#..5F199001-199506

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iSW2#..5F199001-199506

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iSW2#..5F199001-199108

main90386-08054iSW2#..5F199108-199506

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-17050iSW2#..5F199001-199506

8401

8408

9011908076

main90119-08076

9020608001

main90206-08001

9024008071

main90240-08071

9046816142

main90468-16142

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

21 parts on this diagram · 3 diagrams in section
