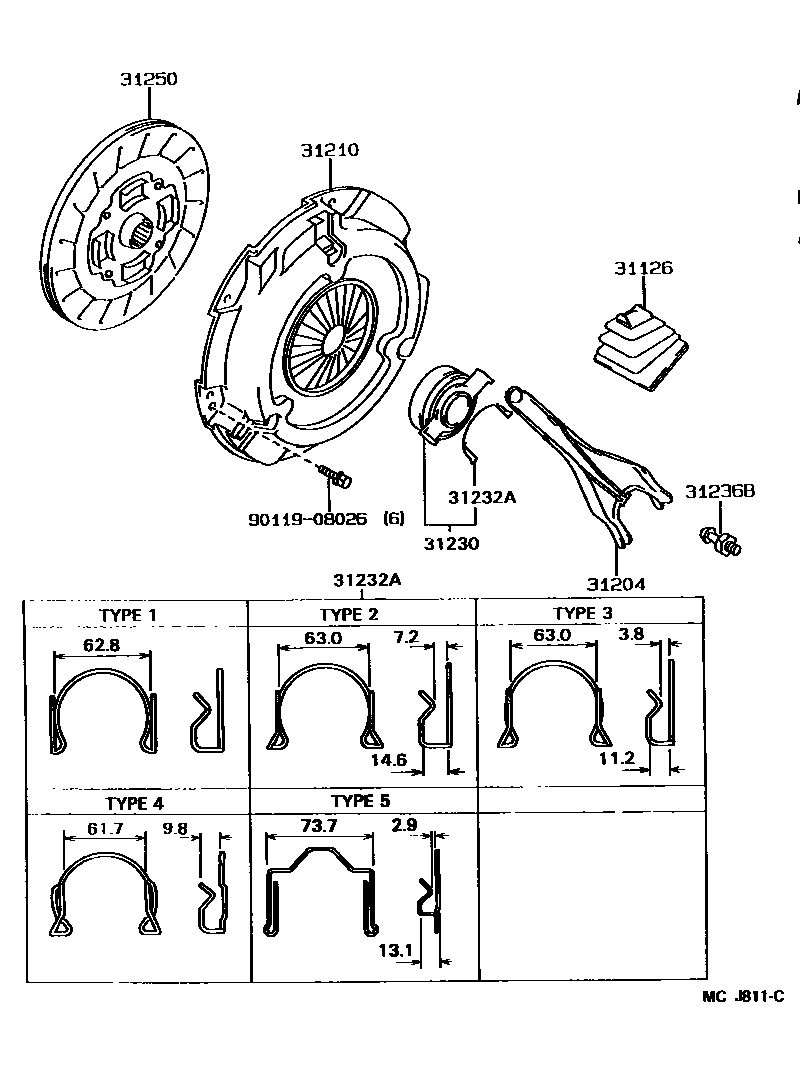

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iSW20199001-199506

main31126-32010iSW21..5F199001-199506

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iSW21..5F199006-199506

main31204-20110iSW20199001-199506

sub31204-20111

main31204-32010iSW21..5F199001-199006

31210COVER ASSY, CLUTCH

main31210-17030iSW20199001-199201

sub31210-20351

main31210-20240iSW21..5F199001-199005

sub31210-32130

main31210-20250iSW20199005-199006

sub31210-17030

main31210-20320iSW20199201-199305

sub31210-20321

main31210-20321iSW20199305-199506

sub31210-20351

main31210-32130iSW21..5F199005-199506

sub31210-33030

31230BEARING ASSY, CLUTCH RELEASE

main31230-20190iSW20199001-199506

sub31230-20191

main31230-32020iSW21..5F199001-199006

sub31230-32100

main31230-32060iSW21..5F199006-199506

31232ACLIP, RELEASE BEARING HUB

main31232-20020iSW21..5F199005-199506

TYPE 4

main31232-20030iSW20199001-199207

TYPE 1

sub31232-20031

main31232-20031iSW20199207-199506

TYPE 2

main31232-32010iSW21..5F199001-199005

TYPE 1

main31232-32020iSW21..5F199001-199005

TYPE 2

main31232-32030iSW21..5F199001-199008

TYPE 3

main31232-32050iSW21..5F199008-199506

TYPE 5

31236BSUPPORT, RELEASE FORK

main31236-20070iSW20199001-199506

main31236-30030iSW21..5F199001-199005

main31236-32010iSW21..5F199005-199506

31250DISC ASSY, CLUTCH

main31250-17040iSW21..5F199112-199506

sub31250-20250

main31250-17050iSW20199006-199205

sub31250-17051

main31250-17051iSW20199205-199506

sub31250-17052

main31250-20170iSW20199001-199006

sub31250-20171

main31250-20180iSW21..5F199001-199112

sub31250-17040

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
