EXHAUST GAS RECIRCULATION SYSTEM

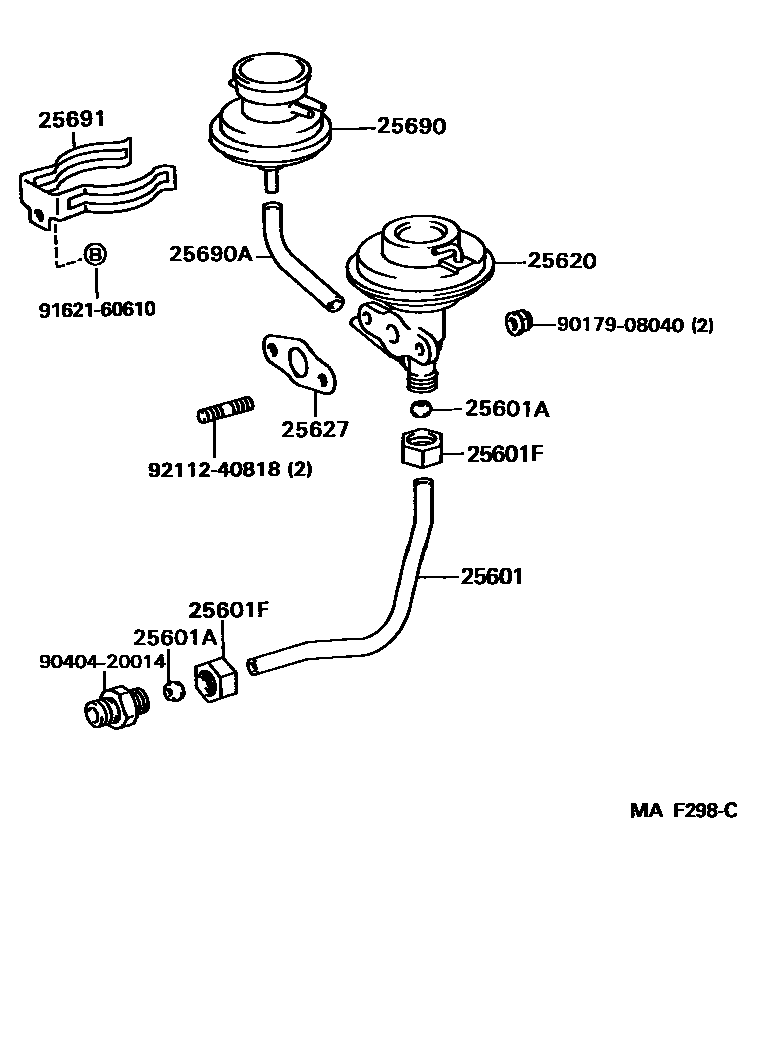

Parts diagram
25601PIPE SUB-ASSY, EGR, NO.1
main25601-88381i199001-199003
sub25601-88382
main25601-88382i199003-199407
sub25601-88383
main25601-88383i199407-199506
main25611-74030i199001-199506
25601ASLEEVE, BALL, EGR PIPE, NO.1
main90410-12042i199001-199506
25601FUNION(FOR EGR PIPE, NO.1)
main90402-20009i199001-199211
UNION SIDE
main90402-20073i199001-199211
EGR VALVE SIDE
main90402-20073i199211-199506
25620VALVE ASSY, EGR
main25620-74180i199001-199106
CALIFORNIA SPEC
sub25620-74181
main25620-74181i199106-199201
CALIFORNIA SPEC
sub25620-74230
main25620-74190i199001-199106
CALIFORNIA SPEC
sub25620-74191
main25620-74191i199106-199201
CALIFORNIA SPEC
sub25620-74240
main25620-74200i199001-199106
sub25620-74201
main25620-74201i199106-199201
sub25620-74250
main25620-74210i199001-199106
sub25620-74211
main25620-74211i199106-199201
sub25620-74260
main25620-74220i199001-199506
main25620-74230i199201-199311
CALIFORNIA SPEC
main25620-74230i199311-199506
main25620-74240i199311-199506
main25620-74240i199201-199311
CALIFORNIA SPEC
main25620-74250i199201-199311
main25620-74260i199201-199311
25627GASKET, EGR VALVE
main25627-74011i199001-199506
main25627-74060i199001-199506
25690MODULATOR ASSY, EGR VACUUM
main25690-88380i199001-199506
main25870-74090i199001-199506
main25870-74100i199001-199201
sub25870-74090
25690AHOSE(FOR EGR VACUUM MODULATOR)
main25695-88381i199001-199506
main90445-11065i199001-199506
25691BRACKET, EGR VACUUM MODULATOR
main25691-74060i199001-199506
9017908040
main90179-08040
9040420014
main90404-20014
9162160610
main91621-60610
9211240818
main92112-40818

12 parts on this diagram · 2 diagrams in section
